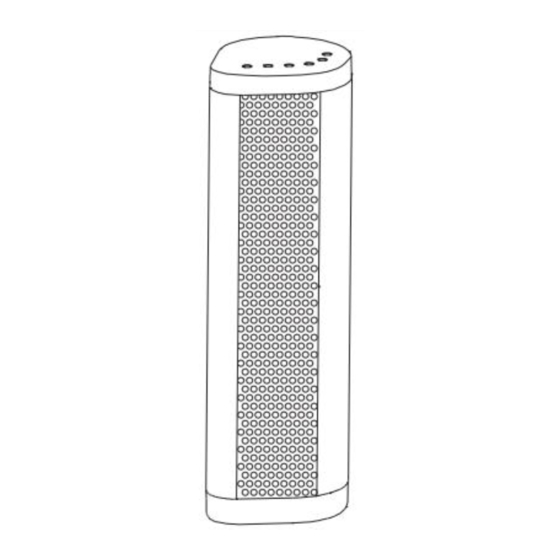

- Page 1 维修手册 Service Manual, 2017 v1.0 维修手册 Service Manual 适用机型 Applicable Models NTH15-17BR （本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific appearance and configuration are subject to the real product) 编制 叶阳雨 Prepared by 审核 刘建林 Reviewed by 批准 肖荣 Approved by...
-
Page 2: Important Safety Notice
Midea Environment Appliance Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales of Midea Environment Appliance. 2 / 16... -
Page 3: Safety Warning Code
维修手册 Service Manual, 2017 v1.0 安全警示规范 Safety Warning Code WARNING Read these instructions. Keep these instructions. Follow all instructions. Do not use this appliance near water. This appliance is intended to be used in household and similar environments. Clean only with a damp cloth. Install in accordance with the manufacturer’s instructions. - Page 4 维修手册 Service Manual, 2017 v1.0 整机拆卸 Dismantling of appliance 底座 / 后壳拆卸 Remove base/rear housing 1 使用电批取下固定底座的螺钉； 2 取下底座，并且取下配重块； 3 将后壳滤网盖取下，并用电批取下固定后壳 的螺钉。 4 将前后壳的卡扣松开，取下后壳。 1. Use the electric batch to remove the screw of the fixed base; 2. Remove the base and the weight distribution block;...
- Page 5 维修手册 Service Manual, 2017 v1.0 board; 3. Remove the noodle paste from the top of the cover. 风机组件的拆卸 Removal of fan assembly 1.将用来固定风机组件的螺钉用十字螺丝刀拆 卸，取下风机组件，并且拆开相应的接线帽。 1. Remove the screw used to fix the fan assembly with the cross screwdriver, remove the air unit parts, and open the corresponding wiring cap.
-
Page 6: Function And Operation
维修手册 Service Manual, 2017 v1.0 1 使用电批取下固定同步电机的螺钉； 2 取下偏心轮； 3 将风叶压板取出； 4 取出摆风风叶并取出相应的支架。 1. Use electrical batch to remove the screws that fix the synchronous motor; 2. Remove the eccentric wheel; 3. Take out the wind blade pressing plate; 4. Take out the swing air leaf and take out the corresponding support 菱形网拆卸... - Page 7 维修手册 Service Manual, 2017 v1.0 1. 取一前网，检查无掉漆、刮手后将扣脚对 准前壳网槽装进去并检查各扣位需完全卡到 位。 1. Take a front net, check that no paint has been removed, put the buckle foot into the front shell net slot after scraping, and check that all fasteners need to be completely stuck in place.
- Page 8 维修手册 Service Manual, 2017 v1.0 1. Three vertical wind blades were respectively taken to install the clamping bars into the slot of the air blade support; 2. Take a air grid and insert the air blade assembly into 3 holes, and the support end is placed in the slot of the air grid;...
- Page 9 维修手册 Service Manual, 2017 v1.0 were respectively taken to fasten the synchronous motor on the outlet grid. 3. Install the outlet grille assembly into the front shell assembly and attach the wire harness of the synchronous motor to the slot. PTC 的安装...
- Page 10 维修手册 Service Manual, 2017 v1.0 1. 取限温器组件线束安装在出风格栅上的卡 槽内； 2. 分别取 4 颗 ST3.9*13 螺钉将风机组件紧固 在前壳上； 3． 分别取 4 颗 ST3.9*13 螺钉将风机组件紧固 在前壳上； 4. 将风机组件上的线束卡到卡槽内。 1. The wiring harness of the temperature-limiting device component is installed in the slot on the outlet grid; 2.
-
Page 11: Bottom Cover Installation
维修手册 Service Manual, 2017 v1.0 1. Take a unified power line component, insert the lead wire into the bottom cover hole to the power line tap card into the hole position, and rotate the tap card 90 degrees with a flat clamp;... - Page 12 维修手册 Service Manual, 2017 v1.0 both hands to make the bottom buckle complete. Two ST3.5*13 screws were respectively taken to tighten the bottom cover. 顶盖安装 Roof installation 1. 将透明盖对应孔位安装到位； 2. 取一面贴对准缺口位及按键位粘贴摩平； 3. 分别取 3 颗 ST2.9*9.5 螺钉将电路板紧固在 顶盖上并确认按键手感； 4. 将顶盖对应前后壳套入，使用双手压住顶 盖...
-
Page 13: Fault Code And Solutions
维修手册 Service Manual, 2017 v1.0 1. 取 2 颗 ST3.5*13 螺钉将前后壳紧固； 2. 取一过滤网安装在滤网盖中，并将滤网盖 对应安装在后壳上。 1. Take 2 ST3.5*13 screws to tighten the front and rear shells; 2. Take a filter net and install it in the filter cover, and install the filter cover on the back cover. - Page 14 维修手册 Service Manual, 2017 v1.0 附录 Appendix: 整机接线图 Electrical Schematic Diagram 维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 平口螺丝刀/小铲刀 拆卸螺钉和铆钉 screw and slotted screwdriver/scraper rivet assemble and disassemble 14 / 16...
- Page 15 维修手册 Service Manual, 2017 v1.0 尖嘴钳 辅助工具 Nipper pliers assistive tool 15 / 16...
- Page 16 如需获得厂家详细技术咨询，请联系： xxx@midea.com 环境电器事业部 外销 地址：中国广东省中山市东凤镇东阜路和穗工业园东区 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Environment Appliance Division Overseas Sales Address: Eastern 28th, Hesui industrial Park, Dongfu Road, Dongfeng Town, Zhongshan City,...
