维修手册
适用机型

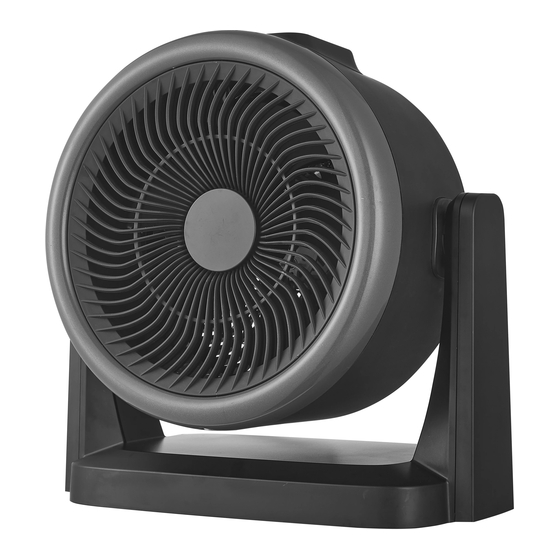

（本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and
specific appearance and configuration are subject to the real product)
编制
审核
批准
Service Manual
Applicable Models
NF15-23UR
Prepared by
Reviewed by
Approved by
维修手册
Service Manual, 2019 v1.0
机型编码
Model No.
22057019000541
林熹
范超
王俊彬
1 / 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea NF15-23UR
Summary of Contents for Midea NF15-23UR
- Page 1 维修手册 Service Manual, 2019 v1.0 Service Manual 维修手册 适用机型 Applicable Models 机型编码 Model No. NF15-23UR 22057019000541 （本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific appearance and configuration are subject to the real product) 编制 Prepared by 林熹 Reviewed by 审核...
-
Page 2: Important Safety Notice
Midea Environment Appliance Technical Maintenance Manual Copyright @2016 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales Corporation of Midea Environment Appliance. 2 / 11... -
Page 3: Safety Warning Code
维修手册 Service Manual, 2019 v1.0 安全警示规范 Safety Warning Code WARNING Read these instructions. Keep these instructions. Follow all instructions. Do not use this appliance near water. This appliance is intended to be used in household and similar environments. Clean only with a damp cloth. Install in accordance with the manufacturer’s instructions. - Page 4 维修手册 Service Manual, 2019 v1.0 整机拆卸 Dismantling of appliance 拆支架 Remove stand 打开两侧装饰盖板，用十字螺丝刀拆除两侧螺 丝，将机身从底座中取出。 Open the covers on both sides, remove the screws on both sides with a Phillips screwdriver, and remove the head from the base 拆装饰环 Remove the decorative ring 1、用十字螺丝刀拆除装饰环底部的螺钉；...
- Page 5 维修手册 Service Manual, 2019 v1.0 拆风叶 Remove the blade 用小的一字螺丝刀插入弹片与电机轴的间隙 处，将弹片撬开。然后，将风叶从电机轴上拆 下来。 Use a small flat-blade screwdriver to insert the gap between the spring and the motor shaft to pry the spring apart. Then remove the blade from the motor shaft. Dismantle the PCB assembly 拆电路板...
- Page 6 维修手册 Service Manual, 2019 v1.0 Dismantle the rotate assembly 拆旋转组件 按下旋转组件四周的四个卡扣， 就可以将旋转 组件从外侧拔出。 Pull the rotate assembly out of the rear cover by pressing the four snaps around the rotate assembly. 6 / 11...
-
Page 7: Function And Operation
维修手册 Service Manual, 2019 v1.0 整机的安装 Function and operation 电路板装配 Control board assembly 1.、 按布线指引接好线后， 将电路板安装到顶 盖上； 2、盖上防火盒，打一颗螺钉后，将线束卡到 对应的线扣内； 3、将顶盖扣到后壳上； 4、按布线指引整理线束，将线束理到相应的 线扣、线槽内。 1.After connecting the wires according to the wiring guidelines, mount the PCB to the top cover; 2.Cover the Fire-proof box, after installing a screw, snap the harness into the corresponding buckle;... -
Page 8: Fault Code And Solutions
维修手册 Service Manual, 2019 v1.0 Fault code and solutions 常见及解决方法 3.8.4 故 障 代 代 码 可 故 障 内 容 显示 维修方法步骤 码 见 Display Steps for maintenance methods Fault Fault Code content code visible A、需检查有没有在非正常情况下使用，如有，需检 查限温器是否跳断； B、如正常情况下使用，将温控器调到最大档位； 内部端子松脱或接触不良：检查，排除故障 更换电路板... - Page 9 维修手册 Service Manual, 2019 v1.0 Appendix: 附录 Electrical Schematic Diagram 整机接线图 维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 平口螺丝刀/小铲刀 拆卸螺钉和铆钉 screw and slotted screwdriver/scraper rivet assemble and disassemble 9 / 11...
- Page 10 维修手册 Service Manual, 2019 v1.0 拆卸铰链、压缩机螺钉 hinge 套筒扳手 Socket spanner and compressor screw assemble 5/16″ and disassemble 尖嘴钳 辅助工具 Nipper pliers assistive tool 10 / 11...
- Page 11 如需获得厂家详细技术咨询，请联系： xxx@midea.com 环境电器事业部 海外营销公司 地址：中国广东省中山市东凤镇东阜路 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Refrigeration Division Overseas Sales Company Address: No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town, Zhongshan, Guangdong 528425 P.R.China...
