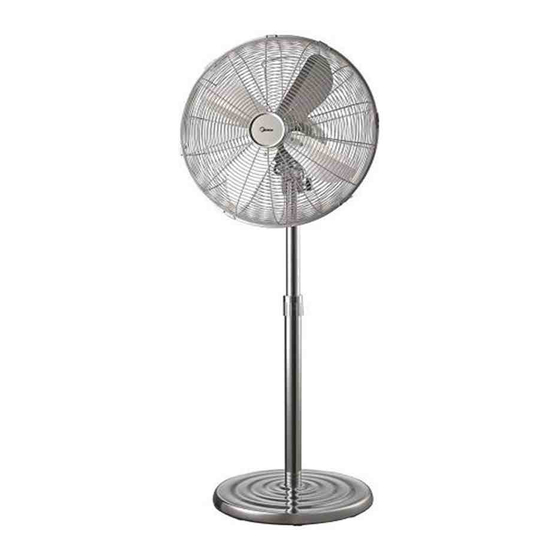

- Page 1 ELECTRIC FAN OWNER’S MANUAL 16" STAND FAN MODEL: FS40-14BU READ AND SAVE THESE INSTRUCTIONS GD Midea Environment Appliances MFG.CO.,Ltd. Midea Industrial Park, Dongfu Road, Dongfeng Town, Zhongshan, Guangdong, Attention: Pictures in the IM are for reference only. 528425, P.R.China...
- Page 2 CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING 1. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 2. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 3 PART FIGURE 1. Screw 2. Front guard 3. Spinner 4. Blade 5. Rear guard 6. Nut 7. Power switch 8. Oscillation knob 9. Motor 10. Screw 11. Neck 12. Tighten knob 13. Nut 14. Connecting column 15. Internal pole 19. Base Enclosure Cover 16.
- Page 4 GUARD & FAN BLADE ASSEMBLY 1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the plastic nut counter clockwise to remove both of them. Fix the rear guard to the motor then tighten the plastic nut again. (Fig.5) 2.
