维修手册
适用机型

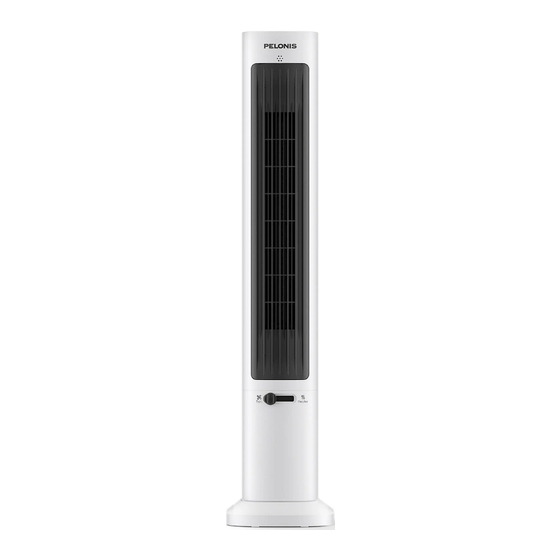

（本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and
specific appearance and configuration are subject to the real product)
编制
审核
批准
Service Manual
Applicable Models
NTH15-23AR
Prepared by
Reviewed by
Approved by
维修手册
Service Manual, 2021 v1.0
机型编码
Model No.
22057019000521
张益
范超
王俊彬
1 / 17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea NTH15-23AR
Summary of Contents for Midea NTH15-23AR
- Page 1 维修手册 Service Manual, 2021 v1.0 Service Manual 维修手册 适用机型 Applicable Models 机型编码 Model No. NTH15-23AR 22057019000521 （本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific appearance and configuration are subject to the real product) 编制 Prepared by 张益 Reviewed by 审核...
-
Page 2: Important Safety Notice
Midea Environment Appliance Technical Maintenance Manual Copyright @2016 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales Corporation of Midea Environment Appliance. 2 / 17... -
Page 3: Safety Warning Code
维修手册 Service Manual, 2021 v1.0 安全警示规范 Safety Warning Code WARNING Read these instructions. Keep these instructions. Follow all instructions. Do not use this appliance near water. This appliance is intended to be used in household and similar environments. Clean only with a damp cloth. Install in accordance with the manufacturer’s instructions. - Page 4 维修手册 Service Manual, 2021 v1.0 整机拆卸 Dismantling of appliance 2.1 拆滤网盖 Remove the filter cover 松开固定滤网盖的 1 颗螺钉，取下滤网盖。 filter cover Loosen the screw that fix the filter cover rear cover, remove the 2.2 拆后壳 Remove the cover rear 松开固定前后壳的螺钉，取下后壳。 Loosen the screws that fix the rear cover and front cover, and remove the rear cover.
- Page 5 维修手册 Service Manual, 2021 v1.0 2.5 拆风机组件 Dismantling the Fan component 1)松开风机组件与前壳的螺钉，取下蜗壳扣位 中的线束，取出风机组件。 1) Loosen the screws that fix the Fan component and the front cover, Remove the wires from the volute buckle, then remove the Fan component. 2)松开 PTC 组件与上下转轴之间的螺钉， 上下 转轴与风道之间的螺钉，风轮与电机转轴之间...
- Page 6 维修手册 Service Manual, 2021 v1.0 3)松开 PTC 支架与 PTC 前支架的螺钉，取下 PTC。 3）Loosen the screws that fix the PTC supporting and the PTC front supporting, remove the PTC. 2.6 拆拨杆组件 Dismantling the Paddle assembly 1)从前壳拔出拨钮。 1) Pull out the knob from the front cover. 2)松开拨杆组件与前壳之间的螺钉。...
- Page 7 维修手册 Service Manual, 2021 v1.0 4)取出拨杆和导套。 4）Remove the paddle and the sleeve. 2.7 拆顶壳组件 Dismantling the Top cover assembly 1)松开遥控接收板与前壳的螺钉。 1) Loosen the screw that fix the remote control receiving board and the front cover. 2)松开控制板与顶壳之间的螺钉。 2） Loosen the screws that fix the control PCB and the top cover.
-
Page 8: Function And Operation
维修手册 Service Manual, 2021 v1.0 Function and operation 整机的安装 3.1 安装前网 Install enclosure 1、将前网安装到前壳上 Install the enclosure into the front cover. 3.2 安装拨杆组件 Install the Paddle assembly 1)将弹簧放入导套，然后装入挡板的孔中。 1）Put the spring into the sleeve, then put them into the Paddle bracket. 2)将拨杆放入拨杆支架中，确保扣位扣住支... - Page 9 维修手册 Service Manual, 2021 v1.0 3.3 安装风机组件 Install the Fan component 1）将限温器安装在 PTC 支架上，PTC 端子 按要求插上线束。 Install the temperature limiter into the PTC supporting, and insert the wires on the PTC. 2） 将 PTC 放入 PTC 支架中， 盖上 PTC 前支 架，并打上螺钉进行固定。...
- Page 10 维修手册 Service Manual, 2021 v1.0 6)将 PTC 组件放入风道中，并使线束穿过底 部的孔。 6) Put the PTC assembly into the wind channel, let the wires pass through the hole at the bottom of the wind channel. 7)将下转轴安装在风道上，并使卡扣插入 PTC 支架；将线束扣入下转轴的扣位，并打 上螺钉固定下转轴与风道。 7) Install the down rotation shaft on the wind channel, and insert the buckle into the PTC supporting.
- Page 11 维修手册 Service Manual, 2021 v1.0 2) 安装同步电机组件：将同步电机、曲柄、 连杆安装在一起。 2) Install the synchronous motor assembly: Install the synchronous motor, crank, and connecting rod together. 3)将底座及同步电机组件安装到摇头支座组 件上。 3) Install the base enclosure and synchronous motor assembly on the oscillating supporting assembly. 4)将配重块放入底座，安装好电源线统配组 件，盖上底盖。...
- Page 12 维修手册 Service Manual, 2021 v1.0 2） 控制板插好线束后安装到顶壳上， 然后扣 上顶盖。 2) Insert the wires into the control board, and install the control board on the top cover. 3) 将顶盖与顶壳扣在一起。 3) Install the top cap and the top cover together. 4)将遥控接收板安装到前壳上，将顶壳组件 顺着前壳的滑槽装入前壳，确保顶壳的两个 扣位扣住前壳的筋位。...
- Page 13 维修手册 Service Manual, 2021 v1.0 3.7 安装后壳、滤网盖及拨钮 Install the rear cover, filter cover and knob 1) 将后壳盖在前壳上，打上螺钉。 1) Put the rear cover on the front cover, tighten the screws. 2)装上滤网，打上螺钉。 filter cover 2) Install the on the rear cover, tighten the screws. 3) 将拨钮安装在前壳上。...
-
Page 14: Fault Code And Solutions
维修手册 Service Manual, 2021 v1.0 Fault code and solutions 常见及解决方法 故 障 代 代 码 可 故 障 内 容 显示 维修方法步骤 码 见 Display Steps for maintenance methods Fault Fault Code content code visible A、需检查有没有在非正常情况下使用，如有，需检 查限温器是否跳断； B、如正常情况下使用, 内部端子松脱或接触不良：检查，排除故障 更换电路板 更换发热体... - Page 15 维修手册 Service Manual, 2021 v1.0 Appendix: 附录 Electrical Schematic Diagram 整机接线图 15 / 17...
- Page 16 维修手册 Service Manual, 2021 v1.0 暖风机维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 拆卸螺钉 screw assemble and 电批 Electric screwdriver disassemble 平口螺丝刀/小铲刀 拆卸螺钉和铆钉 screw and slotted screwdriver/scraper rivet assemble and disassemble...
- Page 17 如需获得厂家详细技术咨询，请联系： xxx@midea.com 环境电器事业部 海外营销公司 地址：中国广东省中山市东凤镇东阜路 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Refrigeration Division Overseas Sales Company Address: No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town, Zhongshan, Guangdong 528425 P.R.China...
