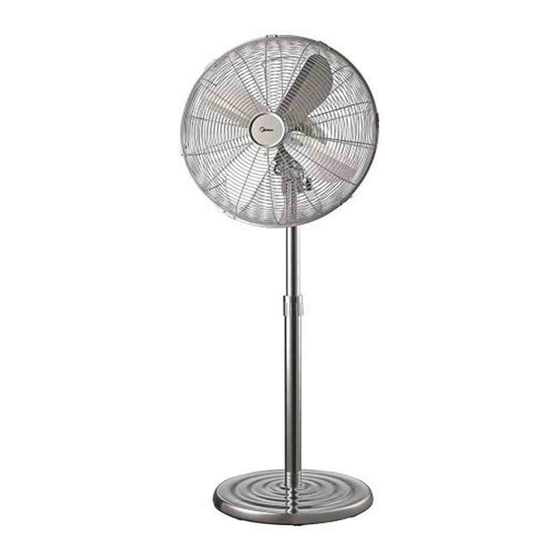

- Page 1 OWNER’S MANUAL 16" STAND FAN MODEL:FS40-14BU READ AND SAVE THESE INSTRUCTIONS Attention: Pictures in the IM are for reference only.
- Page 2 CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING 1. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 2. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 3 PART FIGURE 1. Screw 2. Front guard 3. Spinner 4. Blade 5. Rear guard 6. Oscillation knob 7. Power switch 8. Motor 9. Screw 10. Neck 11. Tighten knob 12. Nut 13. Connecting column 14. Internal pole 18. Base Enclosure Cover 15.
- Page 4 GUARD & FAN BLADE ASSEMBLY 1. Install back mesh enclosure: take out front and back mesh enclosures as well as the fan from the packing case. Disengage four set screws of mesh enclosure in the most exterior rim of front casing of fan motor. Use the four set screws to fix the back mesh enclosures on the motor (the handle of mesh enclosure faces upwards).
