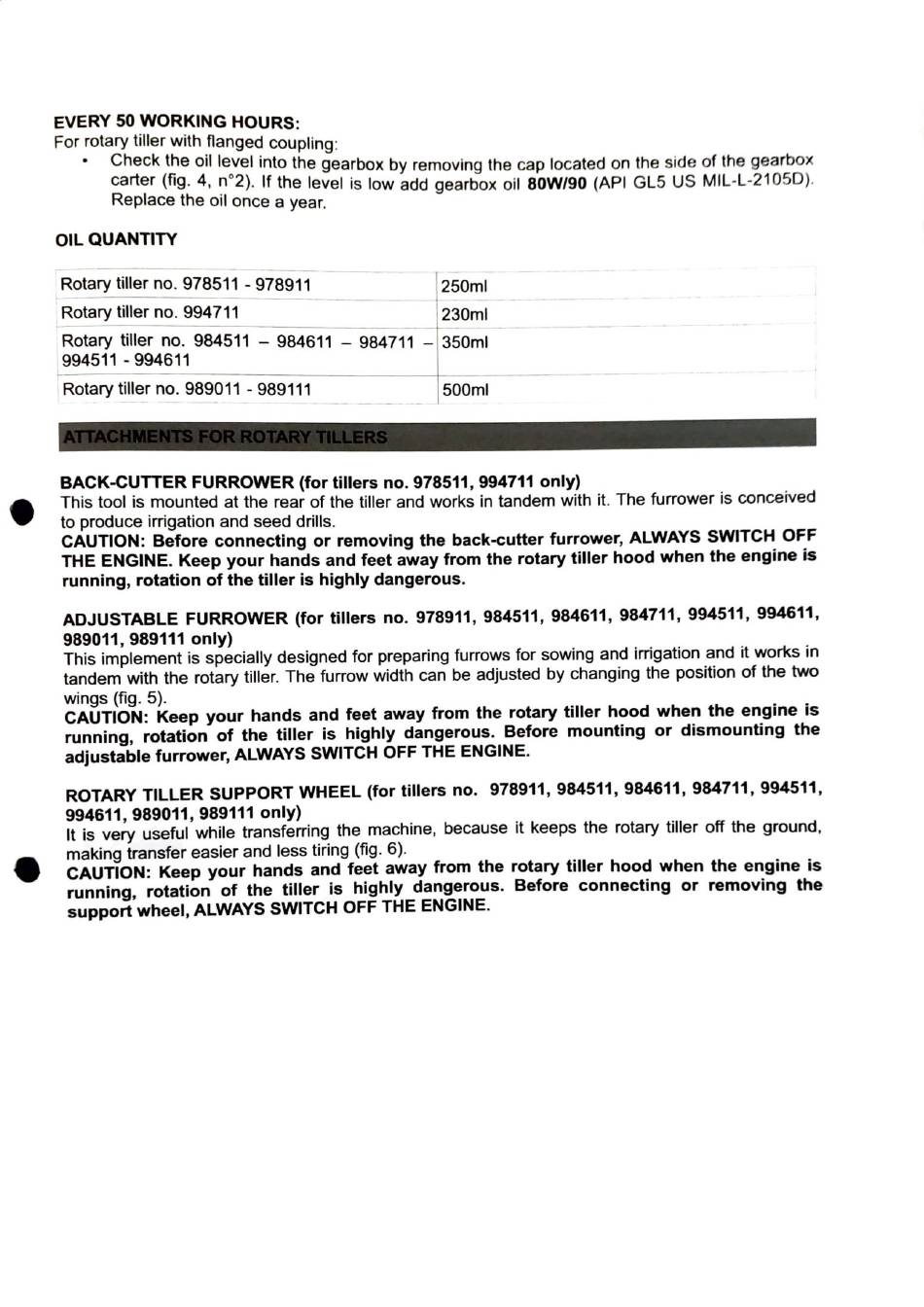

EVERY 50 wORKING HOURS:
For rotary tiller with flanged coupling:
Check the oil level into the gearbox by removing the cap located on the side of the gearbox
carter (fig. 4, n°2). If the level is low add gearbox oil 80W/90 (API GL5 US MIL-L-2105D).
Replace the oil once a year.
OIL QUANTITY
Rotary tiller no. 978511 - 978911
250ml
Rotary tiller no. 994711 230m
Rotary tiller no. 984511 984611 984711 350ml
994511 994611
Rotary tiller no. 989011 989111
500m
ATTACHMENTS FOR ROTARY TILLERS
BACK-CUTTER FURROWER (for tillers no. 978511, 994711 only)
This tool is mounted at the rear of the tiller and works in tandem with it. The furrower is conceived
to produce irrigation and seed drills.
CAUTION: Before connecting or removing the back-cutter furrower, ALWAYS SWITCH OFF
THE ENGINE. Keep your hands and feet away from the rotary tiller hood when the engine is
running, rotation of the tiller is highly dangerous.
ADJUSTABLE FURROWER (for tillers no. 978911, 984511, 984611, 984711, 994511, 994611,
989011, 989111 only)
This implement is specially designed for preparing furrows for sowing and irrigation and it works in
tandem with the rotary tiller. The furrow width can be adjusted by changing the position of the two
wings (fig. 5).
CAUTION: Keep your hands and feet away from the rotary tiller hood when the engine is
running,
rotation of the tiller is
highly dangerous. Before
mounting
or
dismounting the
adjustable furrower,
ALWAYS SWITCH OFF THE ENGINE.
ROTARY TILLER SUPPORT WHEEL (for tillers no. 978911, 984511, 984611, 984711, 994511,
994611, 989011, 989111 only)
It is very useful while transferring the machine, because it keeps the rotary tiller off the ground,
making
transfer easier and less
tiring (fig. 6).
CAUTION: Keep your hands and feet away from the rotary tiller hood when the engine is
running,
rotation of the tiller is
highly dangerous.
Before
connecting
or
removing the
support wheel,
ALWAYS SWITCH OFF THE ENGINE.
