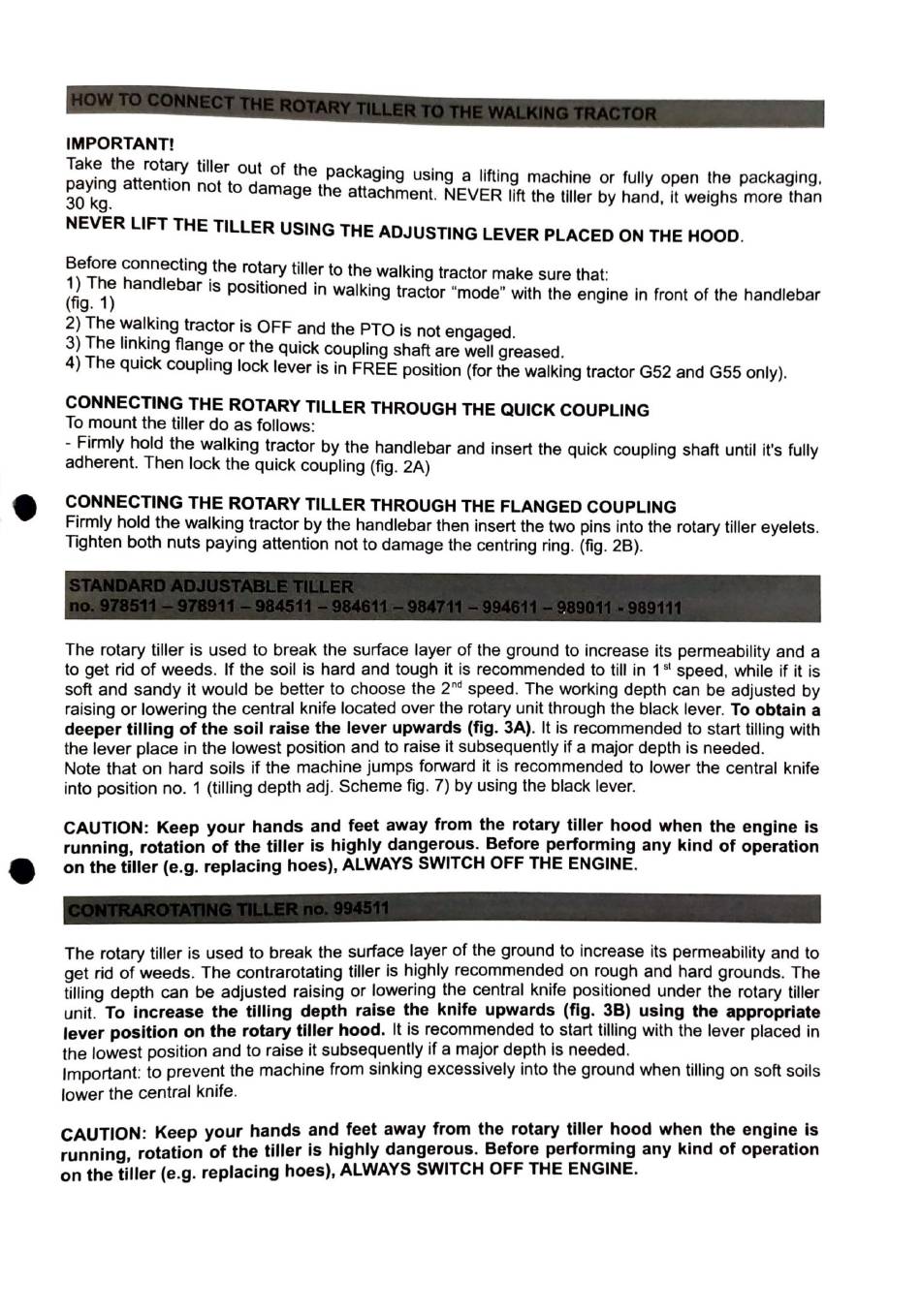

Grillo 978511 Operator's Manual page 5

HOW
TO CONNECT
THE ROTARY TILLER
TO
THE WALKING TRACTOR
IMPORTANT!
Take
the
rotary
tiller
out
of the
packaging
using
a
lifting
machine
or
fully
open
the packaging
paying
attention
not to
damage
the
attachment.
NEVER lift the tiller
by hand,
it weighs
more than
30 kg.
NEVER
LIFT THE TILLER
USING
THE
ADJUSTING
LEVER PLACED ON THE HOOD.
Before
connecting
the
rotary
tiller
to the walking
tractor make
sure
that
1)
The handlebar is
positioned
in walking
tractor "mode" with
the
engine
in
front of the handlebar
(fig. 1)
2)
The
walking
tractor is OFF and the PTO
is not
engaged.
3) The
linking flange
or
the
quick coupling
shaft
are
well
greased.
4)
The quick coupling
lock lever is
in FREE position (for
the walking
tractor G52 and G55 only).
CONNECTING THE ROTARY TILLER THROUGH THE QUICK COUPLINGG
To mount the tiller do as follows:
-
Firmly
hold the
walking
tractor by
the handlebar and insert the
quick
coupling
shaft
until it's
fully
adherent. Then lock the
quick coupling (fig. 2A)
CONNECTING THE ROTARY TILLER THROUGH THE FLANGED coUPLING
Fimily hold the walking tractor by the handlebar then insert the two pins into the rotary tiler eyelets.
Tighten both nuts paying attention not to damage the centring ring. (fig. 2B).
STANDARD ADJUSTABLE TILLER
no. 978511-978911-984511-984611 984711-994611-989011 989111
The rotary tiller is used to break the surface layer of the ground to increase its permeability and a
to g e t rid o f w e e d s . If t h e soil is h a r d a n d t o u g h it is r e c o m m e n d e d to till in 1 st s p e e d , while if it is
soft and sandy it would be better to choose the 2d speed. The working depth can be adjusted by
raising or lowering the central knife located over the rotary unit through the black lever. To obtain a
deeper tilling of the soil raise the lever upwards (fig. 3A). It is recommended to start tilling with
the lever place in the lowest position and to raise it subsequently if a major depth is needed.
Note that on hard soils if the machine jumps forward it is recommended to lower the central knife
into position no. 1 (tilling depth adj. Scheme fig. 7) by using the black lever.
CAUTION: Keep your hands and feet away from the rotary tiller hood when the engine is
running, rotation of the tiller is highly dangerous. Before performing any kind of operation
o n t h e t i l l e r ( e . g . r e p l a c i n g h o e s ) , ALWAYS SWITCH O F F THE ENGINE. o o p e r a t n
CONTRAROTATING TILLER
no.
994511
The rotary tiller is used to break the surface layer of the ground to increase its permeability and to
get rid of weeds. The contrarotating tiller is highly recommended on rough and hard grounds. The
tilling depth can be adjusted raising or lowering the central knife positioned under the rotary tiller
unit. To increase the tilling depth raise the knife upwards (fig. 38) using the appropriate
lever position on the rotary tiller hood. It is recommended to start tilling with the lever placed in
the lowest position and to raise it subsequently if a major depth is needed.
Important to prevent the machine from sinking excessively into the ground when tilling on soft soils
lower the central knife.
and feet away from the rotary tiller hood when the engine is
CAUTION: Keep your hand
running, rotation of the tiller is highly dangerous. Before performing any kind of operation
on the tiller (e.g. replacing hoes), ALWAYS SWITCH OFF THE ENGINE.
