Midea MKT3H-800G70 Manual

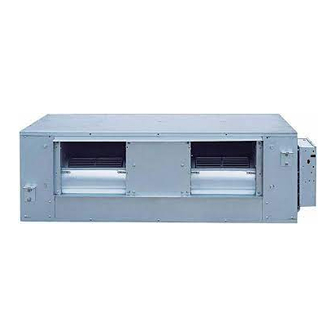

High static pressure duct fan coil unit
Hide thumbs

Advertisement

Table of Contents

MCAC-KTSM-2012-03
High static pressure ducted
FCU
High Static Pressure Duct
Fan Coil Unit
1. Introduction ....................................................................... 2
2. Nomenclature .................................................................... 2
3. Product Schedule .............................................................. 3
4. External Appearance ......................................................... 3
5. Features ............................................................................. 4
6. Specifications .................................................................... 5
7. Dimension .......................................................................... 7
8. Wiring Diagrams ................................................................ 8
9. Capacity Tables ................................................................. 9
10. Static Pressure Graph ................................................... 18
11. Exploded View ............................................................... 22
12. Installation ..................................................................... 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKT3H-800G70 and is the answer not in the manual?

Questions and answers

Pankaj Bhandari
June 24, 2025

can you send me details of MKT3H-2200FCU Midea make

0
Pankaj Bhandari
June 24, 2025

i need your help , can you tell me difference between mkt42000g50a & mkt3h2200 midea fcu

0

Subscribe to Our Youtube Channel

Related Manuals for Midea MKT3H-800G70

Summary of Contents for Midea MKT3H-800G70

  • Page 1: Table Of Contents

    MCAC-KTSM-2012-03 High static pressure ducted High Static Pressure Duct Fan Coil Unit 1. Introduction ............... 2 2. Nomenclature ..............2 3. Product Schedule .............. 3 4. External Appearance ............3 5. Features ................4 6. Specifications ..............5 7. Dimension ................7 8.

  • Page 2: Introduction

    (heated water system). ® Midea commercial AC fan coil is designed and manufactured on the base of advanced technology, and utilize qualified galvanized iron as material. Due to its supper-thin design, it has such advantages: beautiful outlook, space saving, easy installation, etc.

  • Page 3: Product Schedule

    1000 With MKT3H-1200EG70 1200 220~240V-1Ph-50Hz MKT3H-1400EG70 1400 MKT3H-1600G100 1600 MKT3H-1800G100 1800 Without MKT3H-2200G100 2200 MKT3H-1600EG100 1600 MKT3H-1800EG100 1800 With MKT3H-2200EG100 2200 4. External Appearance MKT3H-800G70; MKT3H-1000G70 MKT3-1600G100; MKT3H-1800G100 MKT3H-1200G70; MKT3H-1400G70 MKT3-2200G100 MKT3H-800EG70; MKT3H-1000EG70 MKT3-1600EG100; MKT3H-1800EG100 MKT3H-1200EG70; MKT3H-1400EG70 MKT3-2200EG100 Product Schedule...

  • Page 4: Features

    High static pressure ducted FCU MCAC-KTSM-2012- 5. Features  High air volume, high static pressure, high capacity  High-pressure centrifugal fans  Easy to clean and change the air filter  Auxiliary electrical heater is optional  Flexible control, no standard controller, remote controller and wired controller are optional ...

  • Page 5: Specifications

    MCAC-KTSM-2012-03 High static pressure ducted 6. Specifications 800G70 1000G70 1200G70 1400G70 Model MKT3H- 800EG70 1000EG70 1200EG70 1400EG70 H/M/L 1360/1220/1090 1700/1530/1380 2040/1880/1610 2380/2120/1860 Air flow H/M/L 800/720/640 1000/900/810 1200/1105/950 1400/1250/1095 External Static pressure Capacity H/M/L 6.6/6.37/6.12 8.8/8.19/7.57 10/9.44/8.53 12/11.47/10.24 Cooling Water flow rate 1135 1514 1720...
  • Page 6 High static pressure ducted FCU MCAC-KTSM-2012- Specifications 1600G100 1800G100 2200G100 Model MKT3H- 1600EG100 1800EG100 2200EG100 H/M/L 2720/2450/2170 3060/2750/2450 3740/3360/2990 Air flow H/M/L 1600/1440/1280 1800/1620/1440 2200/1980/1760 External Static pressure Capacity H/M/L 14.1/13.03/11.87 15.8/14.6/13.46 19.9/18.58/17.24 Cooling Water flow rate 2425 2718 3423 Water pressure drop Capacity H/M/L...

  • Page 7: Dimension

    High static pressure ducted 7. Dimension Air inlet Condensation water outlet ZG5/4” Air release valve W ater outlet R C 3/4” W ater inlet R C 3/4” Terminal board MKT3H-800G70 MKT3H-800EG70 MKT3H-1600G70 MKT3H-1600EG70 Model MKT3H-1000G70 MKT3H-1000EG70 MKT3H-1800G70 MKT3H-1800EG70 MKT3H-1200G70 MKT3H-1200EG70...

  • Page 8: Wiring Diagrams

    High static pressure ducted FCU MCAC-KTSM-2012-03 8. Wiring Diagrams For all models without auxiliary electrical heater: For all models with auxiliary electrical heater: Wiring Diagrams...

  • Page 9: Capacity Tables

    DB: Dry Bulb Temp. (℃); WB: Wet Bulb Temp. (℃); TC: Total Cooling Capacity (kW); SC: Sensible Cooling Capacity (kW); WF: Water Flow (m /h); WPD: Water Pressure Drop (kPa) MKT3H-800G70 Air inlet condition Δt DB:26.7 WB:19.4 DB:27 WB:18 DB:27 WB:19 DB:27 WB:20 DB:29 WB:21 8.41...
  • Page 10 High static pressure ducted FCU MCAC-KTSM-2012-03 Cooling capacity MKT3H-1000G70 Air inlet condition Δt DB:26.7 WB:19.4 DB:27 WB:18 DB:27 WB:19 DB:27 WB:20 DB:29 WB:21 11.21 6.76 3.21 108.2 10.29 7.43 2.95 91.1 10.98 7.05 3.15 103.9 11.62 6.74 3.33 116.2 12.27 6.44 3.52 129.5...
  • Page 11 MCAC-KTSM-2012-03 High static pressure ducted FCU Cooling capacity MKT3H-1200G70 Air inlet condition Δt DB:26.7 WB:19.4 DB:27 WB:18 DB:27 WB:19 DB:27 WB:20 DB:29 WB:21 12.74 7.68 3.65 108.2 11.69 8.44 3.35 91.1 12.48 8.01 3.58 103.9 13.2 7.66 3.78 116.2 13.94 7.32 129.5 12.25...
  • Page 12 High static pressure ducted FCU MCAC-KTSM-2012-03 Cooling capacity MKT3H-1400G70 Air inlet condition Δt DB:26.7 WB:19.4 DB:27 WB:18 DB:27 WB:19 DB:27 WB:20 DB:29 WB:21 15.29 9.21 4.38 162.4 14.03 10.13 4.02 136.6 14.98 9.61 4.29 155.8 15.84 9.19 4.54 174.3 16.73 8.78 194.3 14.7...
  • Page 13 MCAC-KTSM-2012-03 High static pressure ducted FCU Cooling capacity MKT3H-1600G100 Air inlet condition Δt DB:26.7 WB:19.4 DB:27 WB:18 DB:27 WB:19 DB:27 WB:20 DB:29 WB:21 17.97 10.82 5.15 234.5 16.48 11.9 4.72 197.3 17.6 11.29 5.05 225.0 18.62 10.8 5.34 251.8 19.65 10.32 5.63 280.7 17.27...
  • Page 14 High static pressure ducted FCU MCAC-KTSM-2012-03 Cooling capacity MKT3H-1800G100 Air inlet condition Δt DB:26.7 WB:19.4 DB:27 WB:18 DB:27 WB:19 DB:27 WB:20 DB:29 WB:21 20.13 12.13 5.77 405.9 18.47 13.34 5.29 341.5 19.72 12.65 5.65 389.5 20.86 12.11 5.98 435.8 22.02 11.56 6.31 485.8 19.36 11.76...
  • Page 15 MCAC-KTSM-2012-03 High static pressure ducted FCU Cooling capacity MKT3H-2200G100 Air inlet condition Δt DB:26.7 WB:19.4 DB:27 WB:18 DB:27 WB:19 DB:27 WB:20 DB:29 WB:21 25.36 15.28 7.27 586.3 23.26 16.8 6.67 493.3 24.84 15.94 7.12 562.6 26.27 15.25 7.53 629.5 27.74 14.56 7.95 701.7 24.38 14.82...
  • Page 16 Heating Capacity: Remark: Δt: Temperature Difference (℃) ; TH: Total Heating Capacity (kW); WF: Water Flow (m /h); WPD: Water Pressure Drop (kPa) MKT3H-800G70 Air inlet temp. (20℃ DB) Water inlet temp. (℃) Δt WF WPD TH WF WPD TH...
  • Page 17 MCAC-KTSM-2012-03 High static pressure ducted FCU Air inlet temp. (20℃ DB) Water inlet temp. (℃) Δt WF WPD TH WF WPD TH WF WPD TH WF WPD TH WF WPD TH WF WPD WF WPD 10 8.07 0.69 5.2 12.66 1.09 12.9 17.53 1.51 24.7 22.12 1.90 39.4 26.74 2.30 57.5 31.44 2.70 74.5 35.97 3.09 104.1 40.50 3.48 132.0 8.95 0.96 10.1 13.93 1.50 24.4 18.66 2.01 43.8 23.28 2.50 68.1 27.76 2.98 96.9 32.29 3.47 131.1 36.82 3.96 170.5 41.35 4.45 215.0 6 10.37 1.49 24.0 15.10 2.16 50.9 19.57 2.81 85.6 24.30 3.48 132.0 28.89 4.14 186.6 33.42 4.79 249.7 37.67 5.40 317.2 42.48 6.09 403.4...

  • Page 18: Static Pressure Graph

    High static pressure ducted FCU MCAC-KTSM-2012-03 10. Static Pressure Graph How to read the diagram The vertical axis is the External Static Pressure (Pa) while the horizontal axis represents the Air Flow (m /h). MKT3H-800(E)G70 Mid speed High speed Super-high speed Low speed 1000 1200 1400 1600 1800 2000 2200 Air volume(m3/h)
  • Page 19 MCAC-KTSM-2012-03 High static pressure ducted FCU MKT3H-1200(E)G70 Mid speed High speed Low speed Super-high speed 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 Air volume(m3/h) MKT3H-1400(E)G70 Mid speed High speed Super-high speed Low speed 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 Air volume(m3/h) Static Pressure Graph...
  • Page 20 High static pressure ducted FCU MCAC-KTSM-2012-03 MKT3H-1600(E)G100 Mid speed High speed Super-high speed Low speed 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 Air volume(m3/h) MKT3H-1800(E)G100 Mid speed High speed Super-high speed Low speed 1500 1800 2100 2400 2700 3000 3300 3600 3900 4200 4500 4800 Air volume(m3/h) Static Pressure Graph...
  • Page 21 MCAC-KTSM-2012-03 High static pressure ducted FCU MKT3H-2200(E)G100 Mid speed High speed Super-high speed Low speed 2100 2400 2700 3000 3300 3600 3900 4200 4500 4800 5100 5400 Air volume(m3/h) Static Pressure Graph...

  • Page 22: Exploded View

    High static pressure ducted FCU MCAC-KTSM-2012-03 11. Exploded View MKT3H-800G70 MKT3H-1000G70 MKT3H-1200G70 MKT3H-1400G70 Part Name Qua. Part Name Qua. Part Name Qua. Right fixing board Baffle Motor up cover Volute shell ass'y Back upside board ass'y Fan motor Wind ring ass'y...
  • Page 23 MCAC-KTSM-2012-03 High static pressure ducted FCU MKT3H-1600G100 MKT3H-1800G100 MKT3H-2200G100 Part Name Qua. Part Name Qua. Part Name Qua. Side board ass'y Drainage pan ass'y Beam ass'y Fan ass'y Beam ass'y Beam ass'y Stator Back upside board ass'y Right wind wheel ass'y Cover plate ass'y Drainage pan Motor up cover...
  • Page 24 High static pressure ducted FCU MCAC-KTSM-2012-03 MKT3H-800EG70 MKT3H-1000EG70 MKT3H-1200EG70 MKT3H-1400EG70 Part Name Qua. Part Name Qua. Part Name Qua. Right fixing board Cover plate ass'y Board Volute shell ass'y Drainage pan Motor bracket Wind ring ass'y Clapboard ass'y Rear cover ass'y Centrifugal fan ass'y Evaporator right clapboard Beam ass'y...
  • Page 25 MCAC-KTSM-2012-03 High static pressure ducted FCU MKT3H-1600EG100 MKT3H-1800EG100 MKT3H-2200EG100 Part Name Qua. Part Name Qua. Part Name Qua. Side board ass'y Drainage pan Beam ass'y Stator Cover plate ass'y Right wind wheel ass'y Fan ass'y E-part box ass'y Motor up cover Clapboard ass'y 20.1 E-part box...

  • Page 26: Installation

    High static pressure ducted FCU MCAC-KTSM-2012- 12. Installation 12.1 Installation of the fan coil unit  Precautions before installation.  Decide the correct way of conveying the equipment.  Try to transport this equipment with the original package.  If the air conditioner needs to be installed on a metal part of the building, electric insulation must be performed, and the installation must meet the relevant technical standards of electric devices.
  • Page 27 MCAC-KTSM-2012-03 High static pressure ducted Steel beam and grider structure: Set and use supportive angle steel.  Suspending the indoor unit  Use tools such as pulleys to hoist the indoor unit to the pendant bolt.  Use tools such as gradient to settle the indoor unit horizontally. Lack of horizontality may cause water leak.
  • Page 28 Newly built rooms should undergo the drain test before the ceiling is laid. 12.4 Wiring Fan coil units model Name of cable Cable Qty. Specification(Optional) Note MKT3H-800G70 Main power cord RVV-300/500 3×2.5 mm Owner purchase it optionally MKT3H-1000G70 Controller power cord RVV-300/500 3×2.0 mm...
