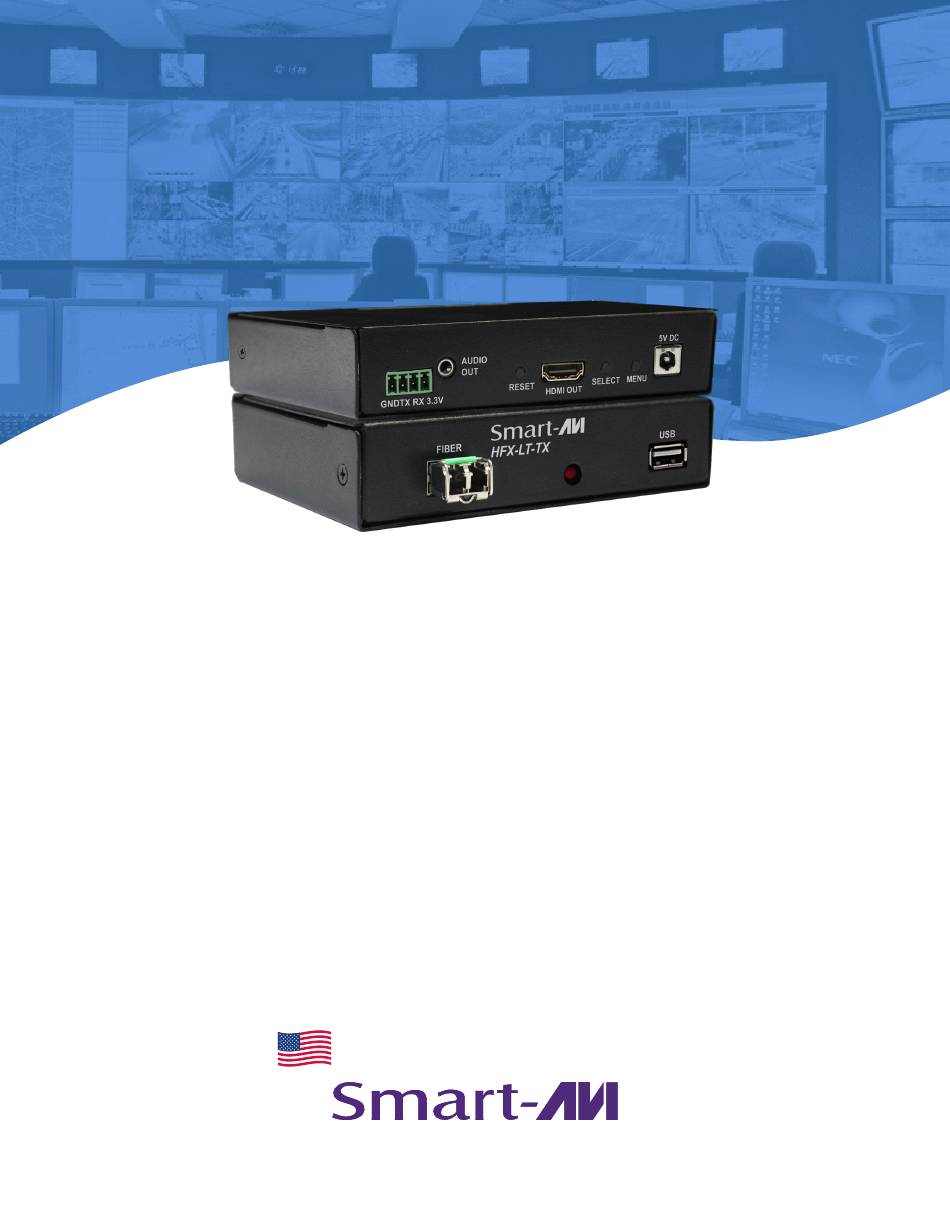

- Page 1 HFX-LT HDMI, USB 2.0 AND AUDIO KVM via dual fiber Extender USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
- Page 2 OVERVIEW TECHNICAL SPECIFICATIONS____________________________________________________________________________ WHAT’S IN THE BOX?_____________________________________________________________________________________ FRONT AND BACK________________________________________________________________________________________ INSTALLATION____________________________________________________________________________________________ APPLICATION DIAGRAM_________________________________________________________________________________ TROUBLESHOOTING_____________________________________________________________________________________ TECHNICAL SUPPORT____________________________________________________________________________________ LIMITED WARRANTY STATEMENT______________________________________________________________________ HDMI, USB 2.0 and Audio KVM Dual Fiber Extender...
- Page 3 Technical Specifications VIDEO Format HDMI2.0 Video Resolution Up to 3840 x 2160 @ 30 Hz Video Bandwidth Single-link 340 MHz (10.2 Gbps) Input Interface (TX) (1) HDMI 19-pin Output Interface (RX) (1) HDMI 19-pin Max Output Distance Up to 20 ft Equalization Automatic Input TMDS Signal...
- Page 4 HDMI, USB 2.0, Audio via Dual Fiber Extender PS5VD3A-WLLMNT 5V DC, 3A (minimum) power adapter with center-pin positive polarity. User Manual FRONT AND BACK HFX-LT-TX Front HFX-LT-RX Front HFX-LT-TX Back HFX-LT-RX Back HDMI, USB 2.0 and Audio KVM Dual Fiber Extender...
- Page 5 INSTALLATION 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a HDMI cable to connect the HDMI output port from a computer to the HDMI IN port of the transmitter. 3. Use a USB cable (Type-A to Type-B) to connect a USB port on the computer to the respective USB port of the transmitter.
- Page 6 Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •...
- Page 7 Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.
- Page 8 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
