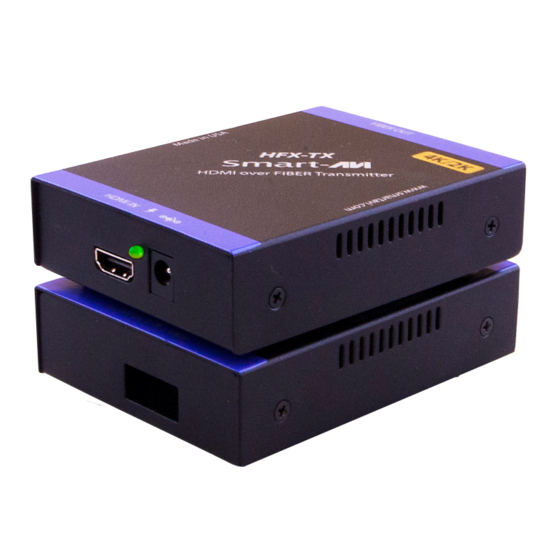

- Page 1 4K HDMI Extender over Fiber Optic Cables USER MANUAL HDMI 2K/4K Multimode Fiber Extender Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?________________________________________________________________________ FRONT AND REAR___________________________________________________________________________ INSTALLATION_______________________________________________________________________________ TROUBLESHOOTING_________________________________________________________________________ TECHNICAL SUPPORT________________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ 4K HDMI Extender over Fiber Optic Cables... -
Page 3: Technical Specifications
Technical Specifications VIDEO Format HDMI 1.4 and HDCP compliant HDTV Resolutions 480p, 720p, 1080i, 1080p/60Hz/48bit, 4Kx2K/30Hz TV Resolution 480i Refresh Rate Up to 130Hz Wavelength 850 nm Bit Error Rate Performance 1.00E-12 Input Interface (TX) HDMI Type A 19-pin Female TMDS Output Interface (RX) HDMI Type A 19-pin Female TMDS Input Cable Length... -
Page 4: What's In The Box
What’s in the box? PART NO. Q-TY DESCRIPTION HFX-TX-S HDMI 2K/4K Multimode Fiber Transmitter HFX-RX-S HDMI 2K/4K Multimode Fiber Receiver PS5VD2A PS5VD2A Power Supply User Manual HFX-TX REAR HFX-TX FRONT HFX-RX REAR HFX-RX FRONT 4K HDMI Extender over Fiber Optic Cables... -
Page 5: Installation
INSTALLATION 1. Turn off connected devices 2. Connect cables between signal source device and HFX-TX unit’s input ports 3. Connect cables between the HFX-RX unit’s output ports and end-point device 4. Connect HFX-TX and HFX-RX via CAT5e/6 cable 5. Connect power supply to either HFX-TX and HFX-RX units 6. -
Page 6: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 7: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 8 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
