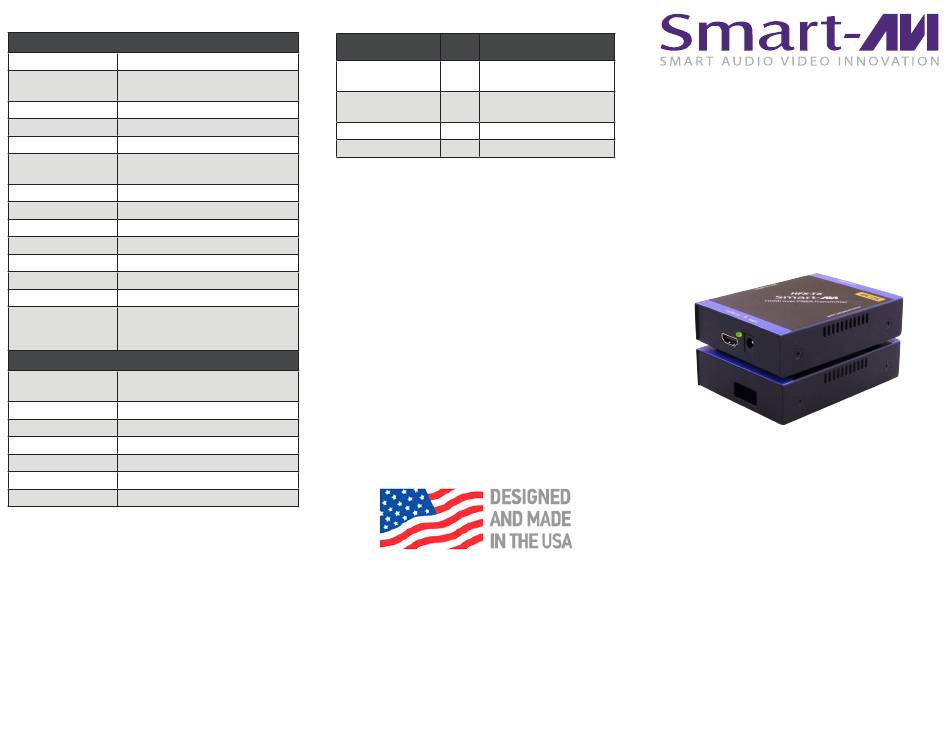

SMART-AVI HFX Series Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format HDMI 1.4 and HDCP compliant
480p, 720p, 1080i,
HDTV Resolutions
1080p/60Hz/48bit, 4Kx2K/30Hz
TV Resolution 480i
Refresh Rate Up to 130Hz
Wavelength 850 nm
Bit Error Rate
1.00E-12
Performance
Input Interface (TX) HDMI Type A 19-pin Female TMDS
Output Interface (RX) HDMI Type A 19-pin Female TMDS
Input Cable Length Up to 40 ft
Output Cable Length Up to 40 ft
Format Dolby TrueHD, DTS-HD MA
Input Interface HDMI (Integrated)
Output Interface HDMI (Integrated)
Class 1;
Laser Output Power EN 60825-1 2007;
EN 60825-2 A2 2010
OTHER
External
Power
100-240 VAC/5VDC2A @10W
Dimensions 5" W x 1.125" H x 4.125" D
Weight 1 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
HDMI 2K/4K Multimode
HFX-TX 1
Fiber Transmitter
HDMI 2K/4K Multimode
HFX-RX 1
Fiber Receiver
PS5VD2A-WLLMNT 2 PS5VD2A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
HFX
4K HDMI Extender
over Fiber Optic Cables
EXTEND UNCOMPRESSED
HDMI SIGNALS
UP TO 1,000 FEET
OVER MULTIMODE
FIBER OPTIC CABLING,
WITH RESOLUTIONS
UP TO 4K ULTRA HD
Quick Start Guide
