  • Page 1 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Vcolor 379 Controller for rotating pizza ovens ENGLISH 144VC379E104 Page 1 of 42...
  • Page 2 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Important Read this document carefully before installation and before using the device and take all the prescribed precautions. Keep this document with the device for future consultation. Only use the device in the ways described in this document. Do not use the device as a safety device.
  • Page 3: Table Of Contents

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Contents INTRODUCTION ........4 Initial information ......21 Product description ......4 List of alarms ........21 Models available and technical features . 5 Internal values ......... 21 MEASUREMENTS AND INSTALLATION..
  • Page 4: Introduction

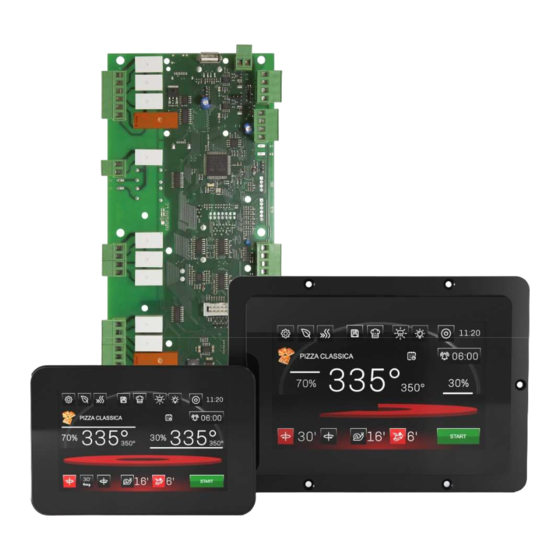

    The Vcolor 379 controller consists of a control module with an open frame board, an inverter also with an open frame board (both installed on the oven) and a remote user interface with a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass and IP65 protection for easy cleaning.
  • Page 5: Models Available And Technical Features

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Models available and technical features The table below shows the technical features of the models available. Vcolor 379 M & L EVCO inverter Vcolor 379 M & L...
  • Page 6 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Configurable K10 (default electronics compartment fan) Configurable K11 (default sound) Configurable K12 (default 1/2 burner block reset) Configurable K13 (free) Communications ports RS-485 MODBUS • • • •...
  • Page 7 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 The table below lists the purchasing codes of the available models: With J/K thermocouples Vcolor 379 M (control module + 5” user interface kit): EVCMC3ADJ2E (flush fit installation) EVCMC3ADJ2EF (semi-recessed installation) Vcolor 379 L (control module + 7”...
  • Page 8: Measurements And Installation

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 MEASUREMENTS AND INSTALLATION Format features The control module is available in a split version with an open frame board. User interfaces are available in 5 or 7-inch versions for vertical operation and have capacitive colour TFT touch-screen graphic displays.
  • Page 9 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Vcolor 379 L Page 9 of 42...
  • Page 10: User Interface Installation

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 User interface installation Depending on the model, installation can be: flush, from behind the panel with threaded studs (not provided) welded to hold it in place; semi-recessed, from the front of the panel with spring clips to hold it in place.
  • Page 11: Electrical Connection

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 ELECTRICAL CONNECTION Vcolor 379M electrical connection The diagram below shows the electrical connection of the control device with a 5-inch user interface. N.B.: The USB communications port makes it possible to upload and download the device settings and personalise the graphics, recipes and languages using an ordinary USB flash drive (see the section “USING THE USB PORT”).
  • Page 12: Vcolor 379L Electrical Connection

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Vcolor 379L electrical connection The diagram below shows the electrical connection of the control device with a 7-inch user interface. N.B.: The USB communications port makes it possible to upload and download the device settings and personalise the graphics, recipes and languages using an ordinary USB flash drive (see the section “USING THE USB PORT”).
  • Page 13: Precautions For Electrical Connection

    EVCO sales network. Page 13 of 42...
  • Page 14: First-Time Use

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 FIRST-TIME USE First-time use Proceed as follows: Install the device as shown in the “INSTALLATION” section, taking all the precautions mentioned in the section “Installation precautions”. Make the electrical connection as shown in the section “ELECTRICAL CONNECTION”.
  • Page 15: User Interface

    When the control module is powered up, it defaults to the EVCO splash screen for a few seconds. ON screen 5.4.1...
  • Page 16 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 • suction hood light • chamber light • rotary plate management 5.4.3 Oven regulated by two probes (top and floor) In this type of oven there are two probes for independent...
  • Page 17: Recipe Book

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 activated when the oven is in Economy mode. For more details, see the section “RAPID HEATING”. 5.4.7 Cooking timer function There is a timer on the main screen which, when started, counts down the time;...
  • Page 18: "Weekly Programmed Switch-On

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 “WEEKLY PROGRAMMED SWITCH- ON" FUNCTION Initial information If enabled by parameter C5, the “Weekly programmed switch- on" function allows the user to programme up to two recipes, each with 2 switch-ons, for every day of the week.
  • Page 19: Managing Loads

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 If the oven is on because a programmed switch-on has started up, the programming icon will be displayed. If, on the other hand, r7 = 2, the power selected for the top...
  • Page 20: Rotary Plate Management

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 7.2.3 Rapid heating The rapid heating function is activated using the key; this function will force activation of the heaters, regardless of their This key indicates that the plate is not rotating; press it to start regulation percentage, to reach the chamber temperature as rotation.
  • Page 21: Electronics Compartment Fan

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Page 1 Electronics compartment fan Management of the electronics compartment fan depends mainly on the status of the device: • if the device is switched on, the fan will switch on •...
  • Page 22: Languages

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 time can be changed and either the “EU” or “US” format Service chosen. This option (accessed using the password -19) gives access to In the event of “multi-base” configuration, this function can only...
  • Page 23: List Of Configuration Parameters

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 LIST OF CONFIGURATION PARAMETERS PARAM. MIN. MAX. M.U. DEF. ANALOGUE INPUTS type of probe J thermocouple (only for J/K power board) K thermocouple (only for J/K power board) - - - N.B.: this parameter is only relevant for models for...
  • Page 24 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 duration of buzzer activation on completion of the cooking cycle -1 = until silenced manually buzzer activation when the cooking timer starts - - - deactivated activated for 1 s temperature above which the temperature detected by the chamber probe cannot be displayed (referring to the working setpoint, i.e.
  • Page 25 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 temperature above which the working temperature alarm is raised °C (referring to the working temperature of the control module) alarm absent duration of a power failure during the cooking cycle sufficient to...
  • Page 26 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 temperature above which the electronics compartment fan is switched °C on with the oven in stand-by mode (referring to the operating temperature of the control module). See also u7 °C...
  • Page 27 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 reserved u19c K19 relay - - - reserved PARAM. MIN. MAX. M.U. DEF. SERIAL NETWORK internal data sampling time serial port configuration for connectivity free for MODBUS RTU...
  • Page 28 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 S503 nominal frequency S504 number of pole pairs S506 3000 1380 nominal motor revolutions S511 motor overload S512 ds (s/10) maximum time motor overload stop type: stop with ramp...
  • Page 29: Alarm Management

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 10 ALARM MANAGEMENT If an alarm situation occurs, the buzzer is activated and the alarm icon below will appear on the ON screen in place of the clock field.
  • Page 30 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 check the temperature detected by the chamber probe (if the device has one probe) or by the top probe (if it has two probes). See parameters A0, A1, A2, A3 and A8...
  • Page 31: Connectivity

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 11 CONNECTIVITY 11.1 Initial information Users can interact remotely with their equipment and start up/stop working cycles using the EPoCA cloud platform with Wi-Fi or Ethernet connectivity (which also enable alternative or parallel control through MODBUS TCP). For more details, compare the connectivity options in the “Models available and technical features”...
  • Page 32: Epoca Cloud Platform

    HVAC units in response to market demand. To connect to the cloud system and remotely control machinery from a PC, tablet or smartphone, all users need is an EVCO controller with native EPoCA®...
  • Page 33: Using The Usb Port

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 12 USING THE USB PORT 12.1 Initial information The following actions are possible through the USB port: upload and download recipe settings - upload and download configuration parameter settings upload CSV files to personalise the graphics, recipes and languages.
  • Page 34: Accessories

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 13 ACCESSORIES 13.1 EVCO Inverter Enables modulating management of asynchronous motors. Compact series: EI750M2C04O0VXX/EI1K5M2C04O0VXX/EI2K2M2C04O0VXX/EI2K3M2C04O0VXX Single-phase inverter 0.75/1.5/2.2/2.3 KW @ 230 Vac. Slim Power series: EI550M2L02TXVXX/ EI550M2L12TXVXX/ EI550M2L22TXVXX Single-phase inverter with power up to 550 W @ 230 Vac.
  • Page 35: Usb Plug For Panel Installation

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 13.4 USB plug for panel installation 0812000002 The plug makes the USB communications port of the device more accessible. To connect the device to the plug, connecting cable 0810500018 or 0810500020 must be used (to be ordered separately).
  • Page 36: Evlinking Wi-Fi Rs-485 Module

    Internet using the EPoCA® cloud system. 13.9 EV3 Web gateway EV3W01 IoT gateway with Ethernet connectivity and data logging functions to remotely monitor and control an RS-485 MODBUS RTU network with up to 10 EVCO controllers with EPoCA® technology using the EPoCA® cloud platform. page...
  • Page 37: Technical Specifications

    EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 14 TECHNICAL SPECIFICATIONS 14.1 Technical data Purpose of the control device: function controller Construction of the control device: built-in electronic device user interface control module Housing: plastic housing...
  • Page 38 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Pollution status of the control device: RoHS 2011/65/EC Environmental standards: WEEE 2012/19/EU REACH (EC) Regulation no. 1907/2006 EN 60730-1 EMC standards: IEC 60730-1 user interface control module Power supply: 12 Vac (±15%), 50/60 Hz (±3 Hz),...
  • Page 39 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 2 can be set using the configuration parameter for a normally open/normally closed contact (voltage-free, 5 Vdc, 0.5 mA) 3 (power consumption, thermal switch, type 1/2 burner block) for a normally...
  • Page 40 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Notes ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________ ____________________________________________________________________________________________________________...
  • Page 41 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 Vcolor 379 Controller for rotating pizza ovens Installer manual ver. 1.0 PB - 31/23 Code 144VC379E104 This document and the solutions contained therein are the intellectual property of EVCO and thus protected by the Italian Intellectual Property Rights Code (CPI).
  • Page 42 EVCO S.p.A. Vcolor 379 | Installer manual ver. 1.0 | Code 144VC379E104 EVCO S.p.A. Via Feltre 81, 32036 Sedico Belluno ITALY Tel. +39 0437/8422 | Fax +39 0437/83648 info@evco.it | www.evco.it page...
