Step 2 - Connect To 240V Mains Power - Projecta IC100L Instruction Manual

Positively earthed
Connect the BLACK lead (battery clip) from the charger to the Negative (-) battery terminal.
Connect the RED lead (battery clip) from the charger to the vehicle's chassis away from
the fuel line or moving parts.
STEP 2 – CONNECT TO 240V MAINS POWER
Connect the battery charger to the 240V mains powered socket and turn on the
mains power.
STEP 3 – CHARGING
During the charge process, the LED will flash various patterns. This is normal and indicates
the various charge stages. Refer to "How can I tell what stage the battery charger is in"
in the FAQ section, page 10.
When the LED is GREEN and remains on, this is known as the float stage and the charger
can be left connected to the battery without over charging.
If the POWER LED is flashing RED, there is a fault.
STEP 4 – DISCONNECTION
Ensure the 240V mains switch is turned off and the charger is disconnected from the
240V mains power.
Battery out of vehicle
Remove the BLACK lead (battery clip) from the battery.
Remove the RED lead (battery clip) from battery.
Battery in vehicle
Remove the chassis connection.
Remove the battery terminal connection.
8

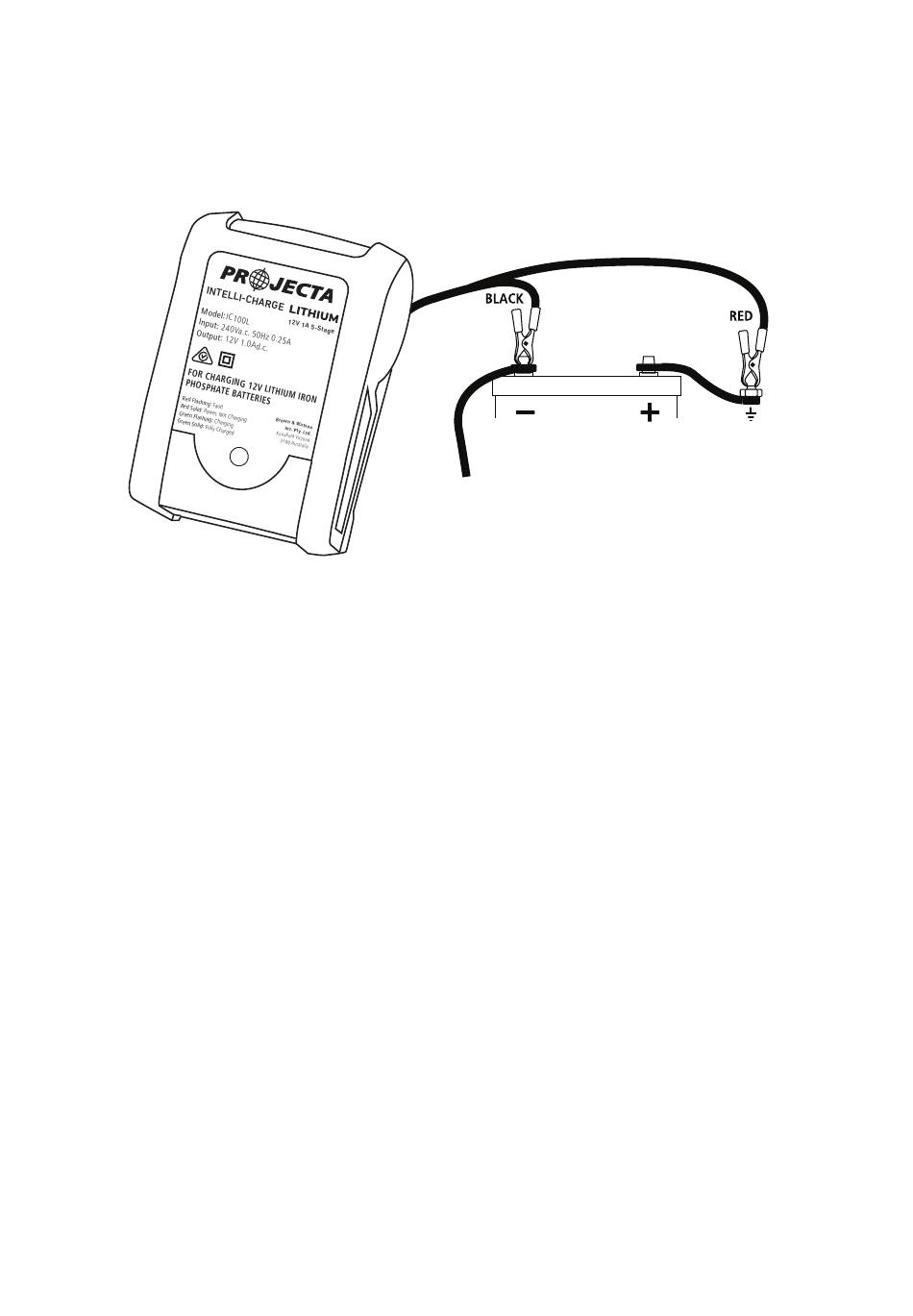

Connection in vehicle
(positively earthed)
