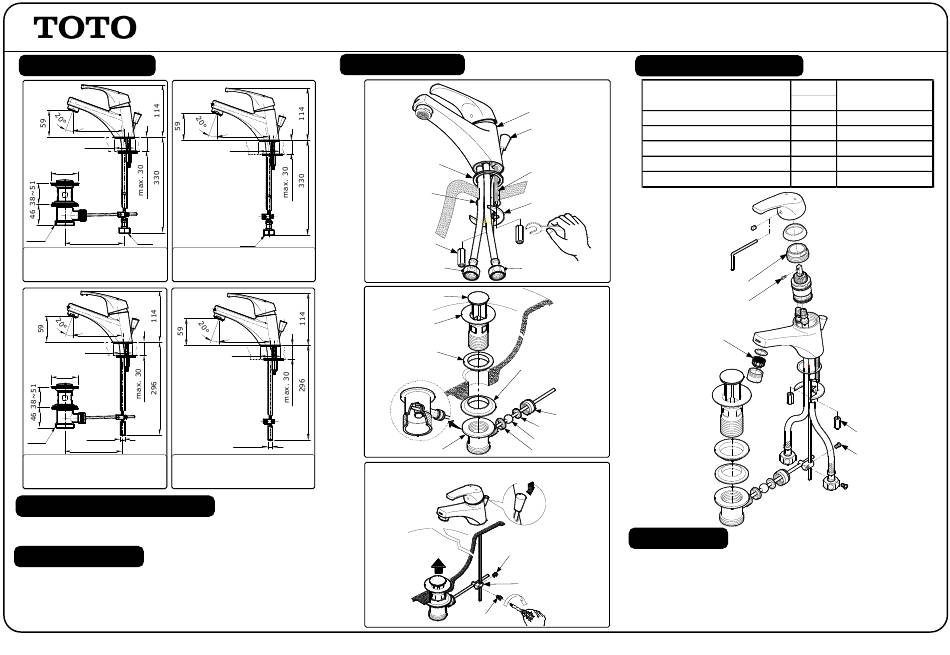

Toto DONNA TX108LDN Quick Start Manual

SPECIFICATIONS
112
44.5
Ø60
G1¼
max.230
G½
TX 108 LDN
"DONNA" Single Lever Lavatory Faucet "DONNA" Single Lever Lavatory Faucet
w/ 1¼" Pop-Up Waste
112
44.5
Ø60
Ø9.5
G1¼
max.230
TX 108 LDV3N
"DONNA" Single Lever Lavatory Faucet "DONNA" Single Lever Lavatory Faucet
w/ 1¼" Pop-Up Waste & Copper Pipe w/ Copper Pipe w/o Pop-Up Waste
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc )
MAINTENANCE
Always wipe plated area with dry soft cloth, and
sometimes wipe it with cloth soaked in mild soap.
S06085ZZ
INSTALLATION
1
112
44.5
Hole 35
G½
Setting Nut
TX 108 LDV1
Water Supply
w/o Pop-Up Waste
2.
112
44.5
Ø9.5
TX 108 LDV4
3.
"DONNA" SINGLE LEVER LAVATORY FAUCET TX108LDN
Faucet
Lift Rod
Packing
Setting Bolt
Lavatory
Washer
To Hot
To Cold
c
Water Supply
Plug
Siphon
Packing
Triangle
Packing
Nut
Washer
Pivot Rod
Kick Box Packing
Bottom
Position
Open
Position
Bolt
Pop-Up Clip
Bolt
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Flow rate unsatisfactory
Water leaks around the body
Handle is loose
Plug cannot open and close
Body swinging
2. CONNECTING NUT
3. BOLT
1. AERATOR
H
ATTENTION
1. Don t use abrasive cleaning material such as; detergents
containing hydrochloric acids, thinner, polishing powder,
and nylon brush.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
SOLUTION
1 Remove and clean
2 Tighten
3 Tighten
4 Tighten
5 Tighten
5. SETTING NUT
4. BOLT
C
R12
