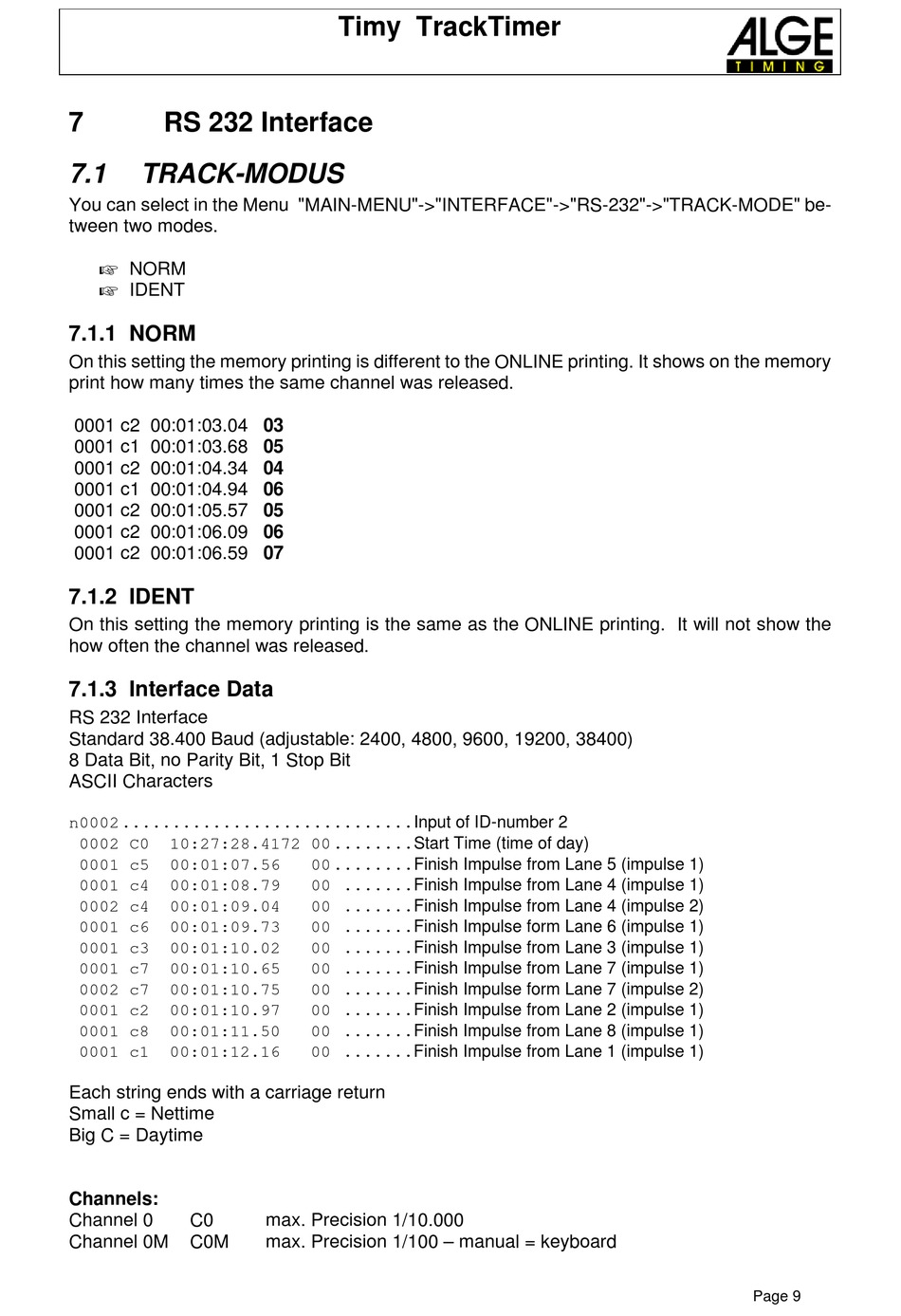

7

RS 232 Interface

7.1

TRACK-MODUS

You can select in the Menu "MAIN-MENU"->"INTERFACE"->"RS-232"->"TRACK-MODE" be-
tween two modes.
 NORM
 IDENT

7.1.1 NORM

On this setting the memory printing is different to the ONLINE printing. It shows on the memory
print how many times the same channel was released.
0001 c2 00:01:03.04 03
0001 c1 00:01:03.68 05
0001 c2 00:01:04.34 04
0001 c1 00:01:04.94 06
0001 c2 00:01:05.57 05
0001 c2 00:01:06.09 06
0001 c2 00:01:06.59 07

7.1.2 IDENT

On this setting the memory printing is the same as the ONLINE printing. It will not show the
how often the channel was released.

7.1.3 Interface Data

RS 232 Interface
Standard 38.400 Baud (adjustable: 2400, 4800, 9600, 19200, 38400)
8 Data Bit, no Parity Bit, 1 Stop Bit
ASCII Characters
n0002 ............................. Input of ID-number 2
10:27:28.4172 00 ........ Start Time (time of day)
0002 C0
0001 c5 00:01:07.56
0001 c4 00:01:08.79
0002 c4 00:01:09.04
0001 c6 00:01:09.73
0001 c3 00:01:10.02
0001 c7 00:01:10.65
0002 c7 00:01:10.75
0001 c2 00:01:10.97
0001 c8 00:01:11.50
0001 c1 00:01:12.16
Each string ends with a carriage return
Small c = Nettime
Big C = Daytime
Channels:
Channel 0 C0
Channel 0M C0M
Timy TrackTimer
00 ........ Finish Impulse from Lane 5 (impulse 1)
00 ....... Finish Impulse from Lane 4 (impulse 1)
00 ....... Finish Impulse from Lane 4 (impulse 2)
00 ....... Finish Impulse form Lane 6 (impulse 1)
00 ....... Finish Impulse from Lane 3 (impulse 1)
00 ....... Finish Impulse from Lane 7 (impulse 1)
00 ....... Finish Impulse form Lane 7 (impulse 2)
00 ....... Finish Impulse from Lane 2 (impulse 1)
00 ....... Finish Impulse from Lane 8 (impulse 1)
00 ....... Finish Impulse from Lane 1 (impulse 1)
max. Precision 1/10.000
max. Precision 1/100 – manual = keyboard
