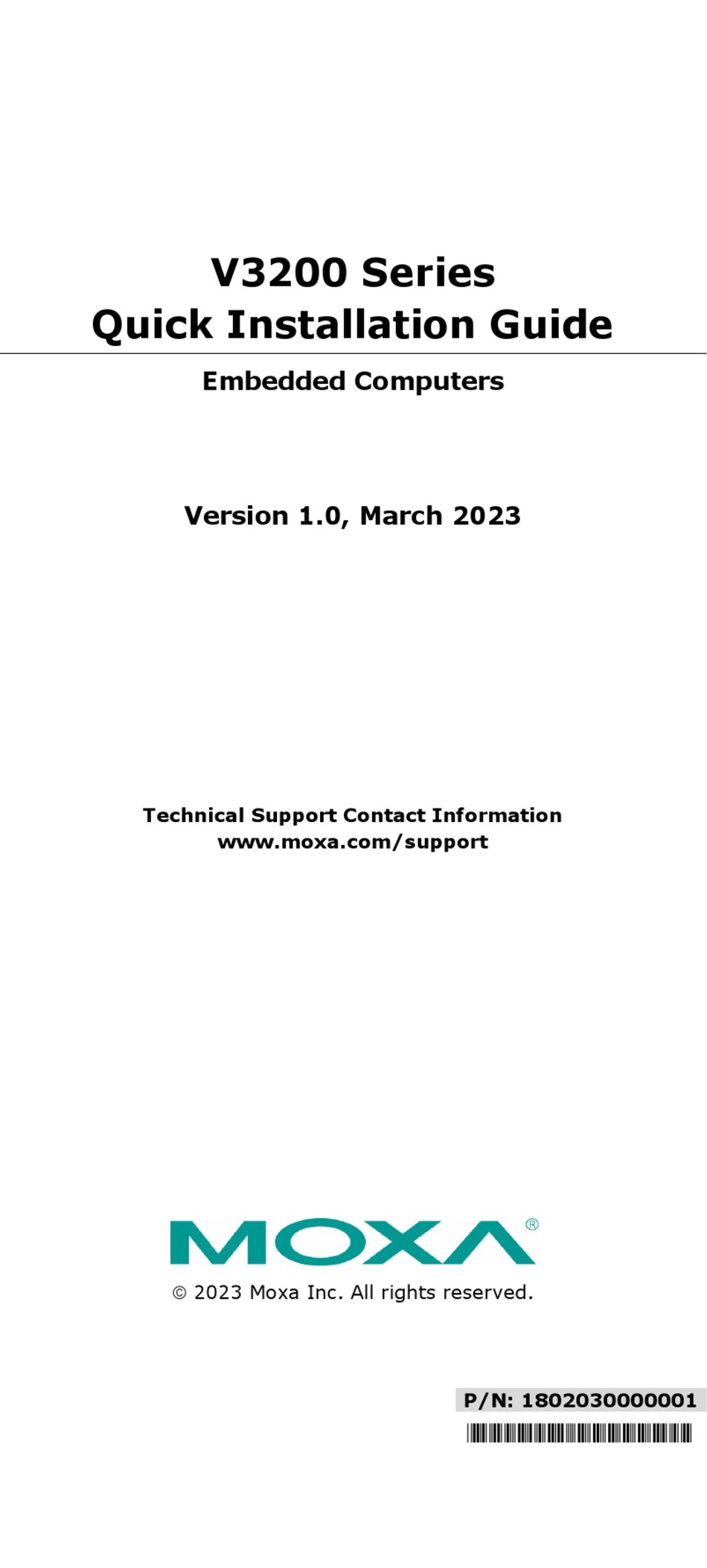

- Page 1 V3200 Series Quick Installation Guide Embedded Computers Version 1.0, March 2023 Technical Support Contact Information www.moxa.com/support 2023 Moxa Inc. All rights reserved. P/N: 1802030000001 *1802030000001*...
- Page 2 Overview The V3200 Series embedded computers are built around an Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come with up to 64 GB RAM, one M.2 2280 M key slot, and two HDD/SSD for storage expansion. The computers are compliant with EN...
- Page 3 V3200-TL-8L Models Rear View Dimensions V3200-TL-4L Models - 3 -...
- Page 4 V3200-TL-8L Models LED Indicators The following table describes the LED indicators located on the front and rear panels of the V3200 computer. LED Name Status Function Green Power is ON Power (Power button) No power input/other power-input error Steady ON: 100 Mbps Ethernet link Green Blinking: Data transmission is in progress Ethernet...
- Page 5 LED Name Status Function Data is being accessed from either the M.2 Yellow M key (PCIe [x4]) or the SATA drive Storage Data is not being accessed from the storage drives LAN Bypass Yellow LAN bypass mode is activated No operations (I/O board) Application active normally, blinking or Programmable...
- Page 6 Ensure that the V3200 computer is installed in the direction shown in the following figure: Connecting the Power The V3200 computers are provided with M12 power input connectors on the front panel. Connect the power cord wires to the connectors and then tighten the connectors.
- Page 7 USB Ports The V3200 comes with 2 USB 3.0 ports on the rear panel. The USB ports can be used to connect to peripherals, such as keyboard, mouse, or flash drives for expanding the system’s storage capacity. Serial Ports The V3200 comes with 2 software-selectable RS-232/422/485 serial ports on the rear panel.
- Page 8 Installing SIM Cards The V3200 Series comes with 6 SIM card slots on the rear panel of the computer. Make sure you insert the SIM card in the right direction as indicated on the label. For detailed SIM card and wireless module installation, refer to the V3200 Hardware User Manual.
