Simon
XTi-5 User Manual
P/N 466-5257 • REV A • 16JUN16

Advertisement

Table of Contents
loading

Related Manuals for Interlogix Simon XTi-5

Summary of Contents for Interlogix Simon XTi-5

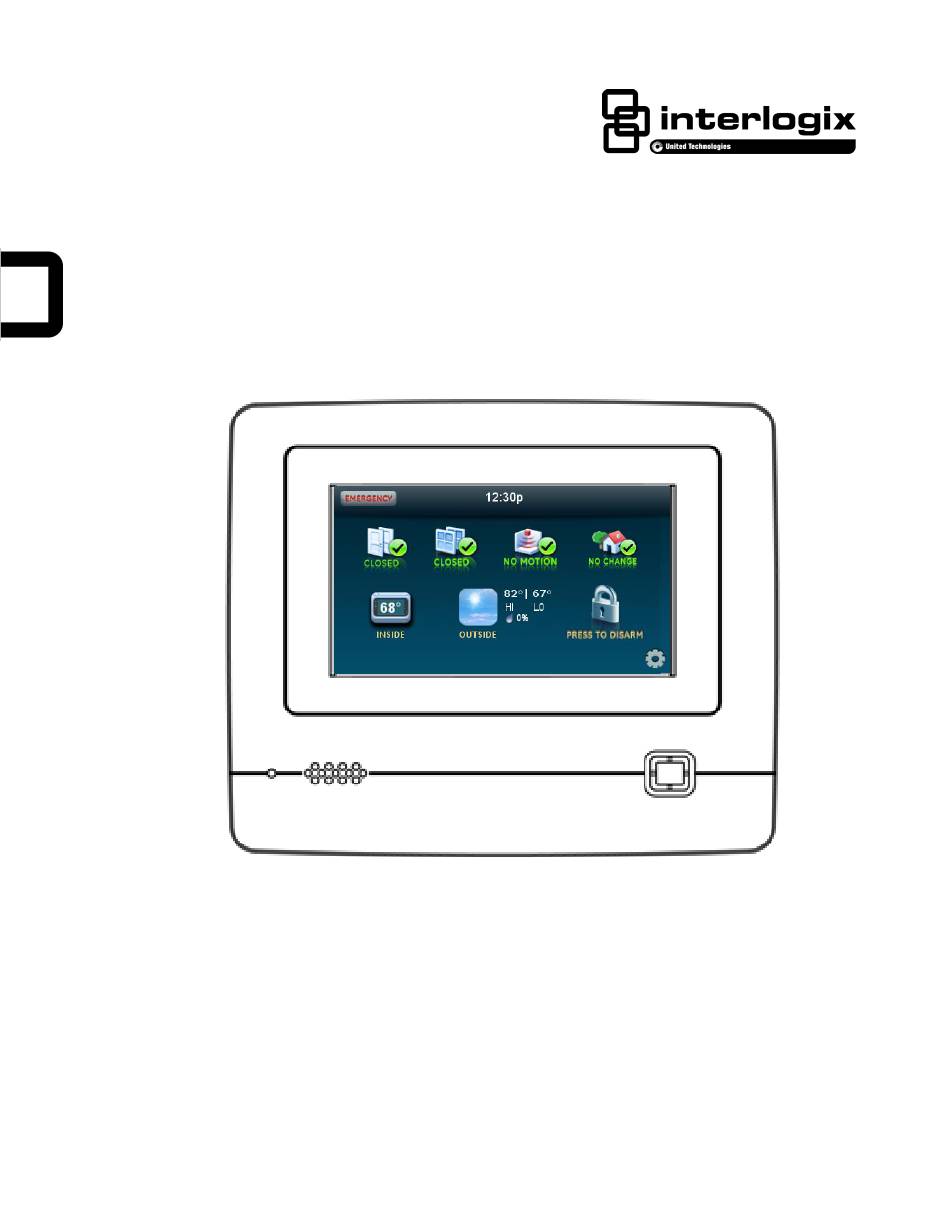

  • Page 1 ® Simon XTi-5 User Manual P/N 466-5257 • REV A • 16JUN16...
  • Page 2 Copyright © 2016 United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved. ® Trademarks and patents The Simon XTi-5 name and logo are trademarks of UTC Fire & Security.
  • Page 3 EVENTS WILL NOT OCCUR, THAT ADEQUATE WARNING OR PROTECTION WILL BE PROVIDED, OR THAT THERE WILL BE NO DEATH, PERSONAL INJURY, AND/OR PROPERTY DAMAGE AS A RESULT. WHILE INTERLOGIX MAKES REASONABLE EFFORTS TO REDUCE THE PROBABILITY THAT A THIRD PARTY MAY HACK, COMPROMISE OR CIRCUMVENT ITS SECURITY PRODUCTS OR RELATED SOFTWARE, ANY SECURITY PRODUCT OR SOFTWARE MANUFACTURED, SOLD OR LICENSED BY INTERLOGIX, MAY STILL BE HACKED, COMPROMISED AND/OR CIRCUMVENTED.

  • Page 5: Table Of Contents

    Contents Introduction ....................1 Using the Simon XTi-5 security system ..........3 Panel controls ..................3 Main touch screen display ..........4 Simon XTi-5 features ................6 Cross-zoning ..............6 Home security ..................7 Arming/disarming ...............7 Arming errors ..............7 Unvacated premises ............9 Swinger shutdown ..............9 Exit/entry delay ..................10 Silent exit ................
  • Page 6 Emergency planning ................34 Your floor plan ..............35 Cleaning the touch screen..............35 Disposal ..................... 36 Sensor and module locations ............. 36 Access codes ..................37 Delays ....................37 Simon XTi-5 system quick reference ..........38 Simon XTi-5 User Manual...

  • Page 7: Introduction

    Introduction The Simon XTi-5 uses wireless technology to warn your family about intrusion, carbon monoxide and fire. The system communicates with a central monitoring station and sends voice messages to an offsite phone. The security system uses sensors that communicate alarms to the control panel using radio waves.
  • Page 8 Ask your installer if you have this feature. Note: The default master code is 1-2-3-4 when the security system is shipped from the factory. You should change your code after your system is installed. Simon XTi-5 User Manual...

  • Page 9: Using The Simon Xti-5 Security System

    Using the Simon XTi-5 security system You can operate the self-contained security system through several different methods: • Use the main screen icons to arm/disarm the system when you enter or exit your home, check system status, and to determine which sensors are active.

  • Page 10: Main Touch Screen Display

    Figure 1: Simon XTi-5 controls Note: The touch screen in Figure 1 above is an example. Your touch screen and system may be configured differently. Table 3 below provides a description of the panel’s graphical user interface and audio. Table 3: Panel features...
  • Page 11 Environmental sensors, such as smoke and carbon monoxide detectors, stay active at all times. Note: Depending on your configuration, the Motions Only icon may not appear. Press to access the settings screen. This yellow triangle indicates faults within the system. Simon XTi-5 User Manual...

  • Page 12: Simon Xti-5 Features

    Simon XTi-5 features The Simon XTi-5 features provide you with the ability to perform the following functions: • Arm perimeter (doors and windows) and interior (motion) sensors to indicate intruders. • Use the emergency screen to send quick response alerts to the central monitoring station.

  • Page 13: Home Security

    Home security The Simon XTi-5 allows you to control which sensors are active at any given time. Table 5 below describes the arming levels that you can set from the control panel. Table 5: Arming levels Level Function Description Disarm In this level, only 24-hour sensors are active.
  • Page 14 4. If a code is required, enter your code when the keypad screen appears. The panel speaks Doors and Windows On and starts an exit delay, and sounds exit beeps in groups of two until the exit delay expires. To cancel arming press CANCEL ARMING on the countdown screen. Simon XTi-5 User Manual...

  • Page 15: Unvacated Premises

    (Swinger Shutdown is disabled). Note: Swinger shutdown does not affect Smoke, Fire, Carbon Monoxide and Environmental sensors. Ask your installer how this option is programmed and have them explain how it will affect your system operation. Simon XTi-5 User Manual...

  • Page 16: Exit/Entry Delay

    Exit/entry delay Your Simon XTi-5 provides a delay after entering or exiting your home before the system is armed or disarmed. Table 6 below provides details for the entry and exit delay features. Table 6: Entry and exit delay details...

  • Page 17: Quick Exit

    Bypassed sensors are automatically unbypassed when the arming level is changed to a level where the sensor is not active. To bypass, or unbypass, a sensor: 1. Press 2. Press SELECT 3. Enter your master code. Simon XTi-5 User Manual...

  • Page 18: Alarms

    15 and 45 seconds. To cancel an accidental alarm before the programmed dialer delay time expires, press the red alarm pop-up and enter your access code. The panel will speak Alarm Communication Cancelled Simon XTi-5 User Manual...

  • Page 19: Guidelines For Preventing Accidental Alarms

    Your installer may have programmed the system to speak the sensor name or make a custom chime sound when a chime sensor is tripped. The chime sound, if programmed, will be played in place of the standard chime beeps. Simon XTi-5 User Manual...

  • Page 20: Special Chime

    Using an offsite phone (This feature has not been verified for use by UL.) If enabled by the installer, you can control your Simon XTi-5 system remotely from an offsite phone. The panel answers a phone call according to the dialing method programmed by your installer.

  • Page 21: Key Fobs

    The key fob has the following buttons: • Lock (closed lock icon) • Unlock (open lock icon) • Star (star icon) • Light (light bulb icon) Table 8 on page 16 describes how to use the key fob buttons. Simon XTi-5 User Manual...
  • Page 22 Press the Lock and Unlock buttons simultaneously for 3 emergency) alarm to the central seconds. monitoring station. (Check with your installer to find out how the key fob panic buttons will operate.) Disarm your security system. Press the Unlock button once. Simon XTi-5 User Manual...

  • Page 23: How Your System Communicates

    Alarm sirens Exterior and interior sirens make three different alarm sounds on the premises, each indicating a different type of alarm. Sirens are programmed by the installer to time out and stop sounding after a specified time. Simon XTi-5 User Manual...

  • Page 24: Trouble Beeps

    If your AC power is not working, your security system will shut down once the battery has failed. If the condition does not clear after AC power has been restored and 24 hours have passed, call your security system dealer. Simon XTi-5 User Manual...
  • Page 25 To clear system status, press CLEAR next to Panel Status in the STATUS & SETTINGS menu. If the trouble condition was a low system battery, perform a sensor test. The should disappear if all trouble conditions have been corrected. Simon XTi-5 User Manual...

  • Page 26: System Configuration

    Code options The Simon XTi-5 security system provides a system of codes to be entered when a certain level of authority is required to perform an action. These codes allow you to activate system options, customize panel operations, and generate a silent alarm.
  • Page 27 Note: Has not been investigated by UL. Voice Volume Beep Volume Brightness Default Screen Calibration Help Set Date/Time System Tests Sensor Test Comm Test System Download Programming Access Codes Master Code User Codes 1 to 8 Simon XTi-5 User Manual...

  • Page 28: Event History

    Panel Status Press the Listen, next to Panel Status, to have the panel speak the current status of the panel. If the icon appears a trouble condition has occurred. Press Clear to clear certain panel status messages. Simon XTi-5 User Manual...

  • Page 29: Chime

    From the Status & Settings screen, next to Beep Volume, press the left arrow to lower the beep volume and the right arrow to raise the beep volume. The bars between the arrows register the volume level. One bar is softest. Four bars is loudest Simon XTi-5 User Manual...

  • Page 30: Brightness

    To calibrate the screen: 1. From the Status & Settings screen, press SHOW next to Calibration. 2. Touch the center of the cross using a soft, fine point as it appears in each corner of the screen. Simon XTi-5 User Manual...

  • Page 31: Help

    1 - 1 - 2000, indicating it has not been set correctly. Time format is: hour/minute/a.m. or p.m. Date format is: month/day/year: To set the time 1. From the Status & Settings screen, select Set Date/Time. 2. Enter master access code. Simon XTi-5 User Manual...

  • Page 32: Emergency Icon

    30 seconds (typical time limit, contact your dealer for more information on your system configuration). System tests This menu lets you run sensor and communication tests, and initiate a phone call from the panel to Enterprise Downloader. For more information, see “Testing” on page 30. Simon XTi-5 User Manual...

  • Page 33: Programming

    1. From the Programming screen, press ACCESS CODES. 2. To add or edit an access code, press the white field next to the access code. 3. Enter the new/edited code on the numbered keypad and press SAVE. Simon XTi-5 User Manual...

  • Page 34: Security

    The siren and built-in speaker options consist of the following: Panel piezo beeps. (Status beeps sounded on the siren.) This option determines whether the panel sounds nonalarm beeps. To program piezo beeps: Simon XTi-5 User Manual...

  • Page 35: Version

    Ask your installer for more information. Version This menu is a read-only display of the system’s firmware version, the touch screen version, and copyright information. Simon XTi-5 User Manual...

  • Page 36: Testing

    Motion sensor Avoid the motion sensor field of view for 5 minutes, and 6 of 8 then enter its view. Smoke Press and hold the test button until the system sounds 6 of 8 transmission beeps. Simon XTi-5 User Manual...

  • Page 37: Sensor Testing Notes

    1. Enter the Status & Settings menu. 2. Scroll until System Tests is listed, Press Enter. 3. Enter your master code and press OK. 4. Press Comm Test. The panel displays if the comm test was successful or not. Simon XTi-5 User Manual...

  • Page 38: Central Station Communication

    To initiate a download: 1. Enter the Status & Settings menu. 2. Scroll until System Tests is listed, Press Enter. 3. Enter your master code and press OK. 4. Press the System Download icon. Simon XTi-5 User Manual...

  • Page 39: Reference Information

    Although having an alarm system may make you eligible for reduced insurance premiums, the system is no substitute for insurance. WARNING: Security system devices cannot compensate you for the loss of life or property. Simon XTi-5 User Manual...

  • Page 40: Emergency Planning

    Emphasize that no one should enter the premises if they hear sirens in the house. • If you arrive at the premises and hear sirens, do no enter. Call for emergency assistance with your cell phone, or from a neighbor’s phone. Simon XTi-5 User Manual...

  • Page 41: Your Floor Plan

    Show the location of all security system components. • Show the location of any fire extinguishers. Cleaning the touch screen If necessary, use a soft lint-free cloth to clear smudges on the touch screen; do not use glass cleaner on the touch screen. Simon XTi-5 User Manual...

  • Page 42: Disposal

    Contact your installer for more information. Sensor and module locations Use Table 15 below to list your sensor and module locations. Table 15: Sensor and module locations Sensor number Sensor name Sensor type Location Example Front door Door/window sensor Front door Simon XTi-5 User Manual...

  • Page 43: Access Codes

    User code 1 User code 2 User code 3 User code 4 User code 5 User code 6 User code 7 User code 8 Duress code Delays Use Table 17 on page 38 to record your delay times. Simon XTi-5 User Manual...

  • Page 44: Simon Xti-5 System Quick Reference

    Table 17: Delays Delay Time Exit delay Entry delay Simon XTi-5 system quick reference Task Instructions Level 1: Disarm the Control panel: Press PRESS TO DISARM and enter your access code. system Key fob: Press Unlock. Telephone: Press 1. Level 2: Arm doors and...
