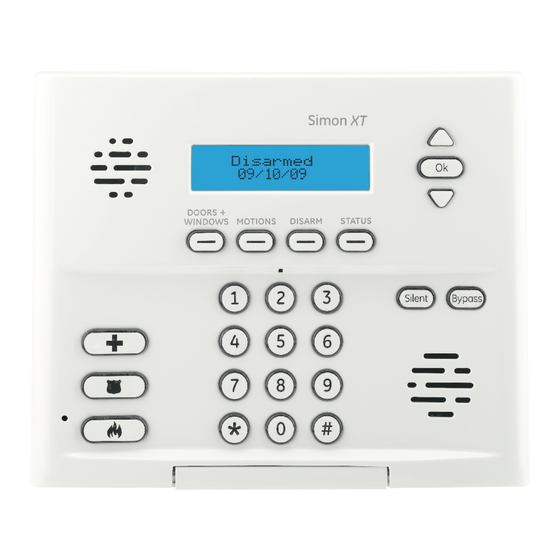

Simon XT/XTi/XTi-5 LTE Module
INSTALLATION GUIDE
Introduction
The LTE Module for Simon XT, XTi, and XTi-5 enables wireless reporting of all
alarms and other system events from the Interlogix Simon XT, XTi, and XTi-5
control panel on the Verizon LTE wireless (cellular) network. The module can
be used as the primary communication path for all alarm signaling, or as a
backup to a telephone line connection to the central monitoring station. The
wireless alarm signaling and routing service is operated by Alarm.com. The
LTE Module also features integrated support for Alarm.com's emPower™
solution with built-in Z-Wave capabilities and for Alarm.com's Image Sensor
when the Image Sensor daughterboard is added. Two-way voice over LTE is
supported on module firmware versions 185 and above.
The module interfaces with the Simon XT, XTi, and XTi-5 panels, fits into a
special compartment inside the panel, and is powered by the control panel
and panel battery.
Contact Information
For additional information and support on Alarm.com products and services,
please visit www.alarm.com/dealer
at 1-866-834-0470.
Compatibility
The LTE module is compatible with all Simon XT (version 1.3 and up), all XTi,
and all XTi-5 control panels.
Account Creation
Before installing an Alarm.com LTE Module in a Simon XT, XTi, or XTi-5
system, a new customer account needs to be created with Alarm.com. We
recommend creating the account at least 24 hours in advance of installation
to ensure that the radio is activated prior to installation.
To activate an account go to www.alarm.com/dealer and login. Under the
"Customers" heading at the top left of the page click on "Create New
Customer". You will need the following customer information to create the
account:
• Customer Address
• Customer Phone Number
• Customer E-mail
• Preferred login name for the customer
• Alarm.com Radio Serial Number
At the end of the account creation process you will be able to print a
Welcome Letter for the customer that has their login information and
temporary password for the Alarm.com website.
Installation
Installation consists of inserting the module into the panel, attaching the
antenna, and performing an LTE phone test at the panel.
Follow these guidelines during installation:
• Before affixing the panel to a wall, verify the LTE signal level at the
installation location. On the XT panel, press and hold the 5 key for 10
seconds to view the LTE signal level. On the XTi and XTi-5 panel, enter
'Programming'  'Interactive Services'  'Modules Status'. With
either panel, module LED L4 blinks to indicate signal strength. (See
Tables 1-5 for LED details.) An installation location with a sustained
signal level of two or more bars is recommended.
• Do not exceed the panel total output power when using panel power
for the LTE Module, hardwired sensors, and /or sirens. Refer to the
specific panel installation instructions for details.
• Only one LTE Module can be used per Simon XT, XTi, or XTi-5 panel.
or contact Alarm.com technical support
Copyright © 2015 Alarm.com
Simon XT/XTi/XTi-5 LTE Module
• The LTE Module draws a maximum of 30 mA average during normal
operation. In PowerSave Mode, during or immediately following an AC
power failure, the module will draw only 10 mA on average.
• Avoid mounting the panel in areas with excessive metal or electrical
wiring, such as furnace or utility rooms.
• Leave 12 to 18 in. of open space around the module antenna.
• Do not install the control panel and module in a basement or other
below-ground location. Doing so will negatively impact LTE signal
strength.
Tools and supplies needed
You will need the following tools and supplies:
• Small flat-head and Phillips screwdrivers
• Screws (included)
• Antenna (included)
Module Insertion and Antenna Installation
Before installing the module, disconnect the battery and AC power from the
panel.
1) Open the panel by pressing the two tabs (Fig. 1) on the top of the XT or by
lifting the tabs on the XTi and XTi-5 panel.

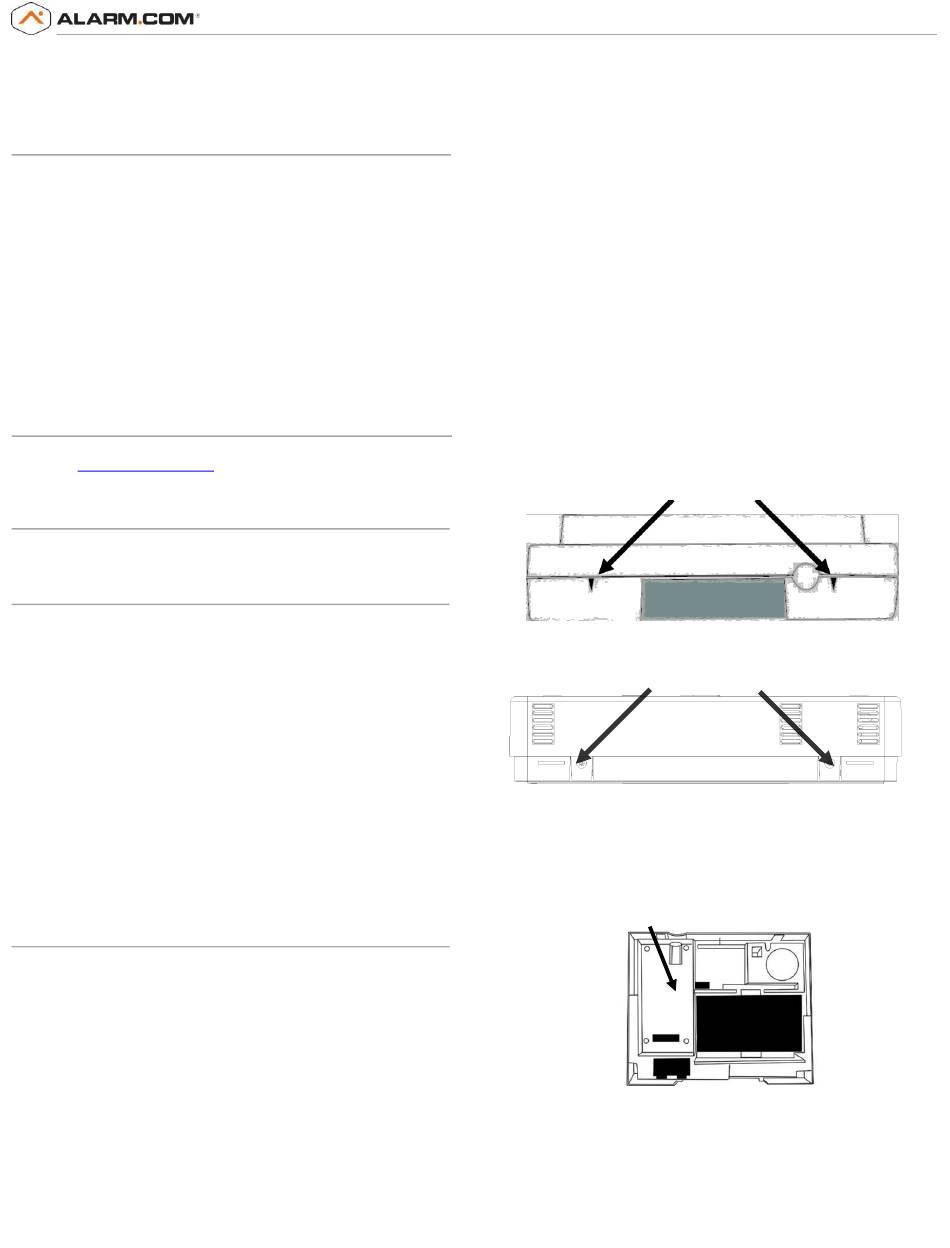

Figure 1: Top View of Simon XT, XTi, and XTi-5 Panels
Top View of Simon XT Panel
Top View of Simon XTi and XTi-5 Panel
2) The module compartment can be found behind the front panel that
swings down, to the left of the battery compartment as seen in Fig. 2
below.
Figure 2: Module Compartment for Simon XT, XTi, and XTi-5 Panels
Module Compartment
Bottom of Panel, near hinge
3) Push antenna end into open module connector to snap the antenna onto
the module. The module must be seated correctly beneath the two small,
plastic corner tabs, as shown in Fig. 3, to ensure it fits into the
compartment properly.
