Simon
XTi-5 Version 2
User Guide
Introduction
This is the User Guide for the Simon
system (models 600-1054-95R-18 & 600-1054-95R-18-CN).
®
The Simon

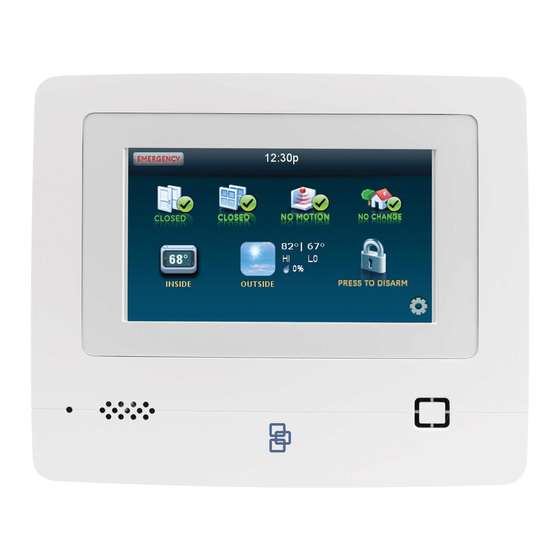

XTi-5 (V2) provides a graphical user interface
for programming and system operation. A piezo siren is
provided for alarm and status annunciation. A speaker and
microphone is provided for 2-way voice communication with
the central station.
Safety Information
WARNING: CHOKING HAZARD. The product accessory bag
contains items that could be choking hazards. Please
keep away from small children.
AVERTISSEMENT: Le sachet de produits accessoires contient des
éléments qui pourrait présenter un danger d'étouffement. Veuillez
garder hors de la portée des jeunes enfants.
Operation
Use this document to quickly begin operating your Simon
XTi-5 (V2) security systems. Refer to the Simon
Manual Version 2 for full operating details and programming
options. To download the Simon
Version 2 see "Contact information" on page 10.
Note: The default master code is 1-2-3-4 when the security system
is shipped from the factory. You should change your code
after your system is installed (see "Programming" on
page 6).
To operate the security system:
Use the Main screen icons to arm/disarm the system
when you enter or exit your home and to determine
which sensors are active and the system status.
Use the emergency screen to communicate with the
central monitoring station to report police, fire, or
emergency alarms.
From the Main screen, press the Status & Settings
icon to program certain user features. Refer to the
®
Simon
XTi-5 User Manual Version 2 for more
information.
© 07/05/18 UTC Fire & Security. All rights reserved.
®
XTi-5 Version 2
®
®
XTi-5 User
®
XTi-5 User Manual
Note: Upon initial installation, it may take up to 36 hours for the
battery to fully charge. A low battery icon will be present and
trouble beeps will sound until the battery is sufficiently
charged. After the initial charge, should the panel lose AC
Power and experience a low battery condition, the icon will
appear and trouble beeps will sound unless silenced.
Silence trouble beeps by:
 Arming or disarming the system.
or
 Pressing "STATUS & SETTINGS" icon and pressing
"LISTEN" next to Panel Status.
This will disable the sounder for 4 hours but the trouble
indication will remain until the battery is recharged.
Contact your security provider to replace your backup
battery.
This system is intended to be checked by a qualified
technician at least once every 3 years.

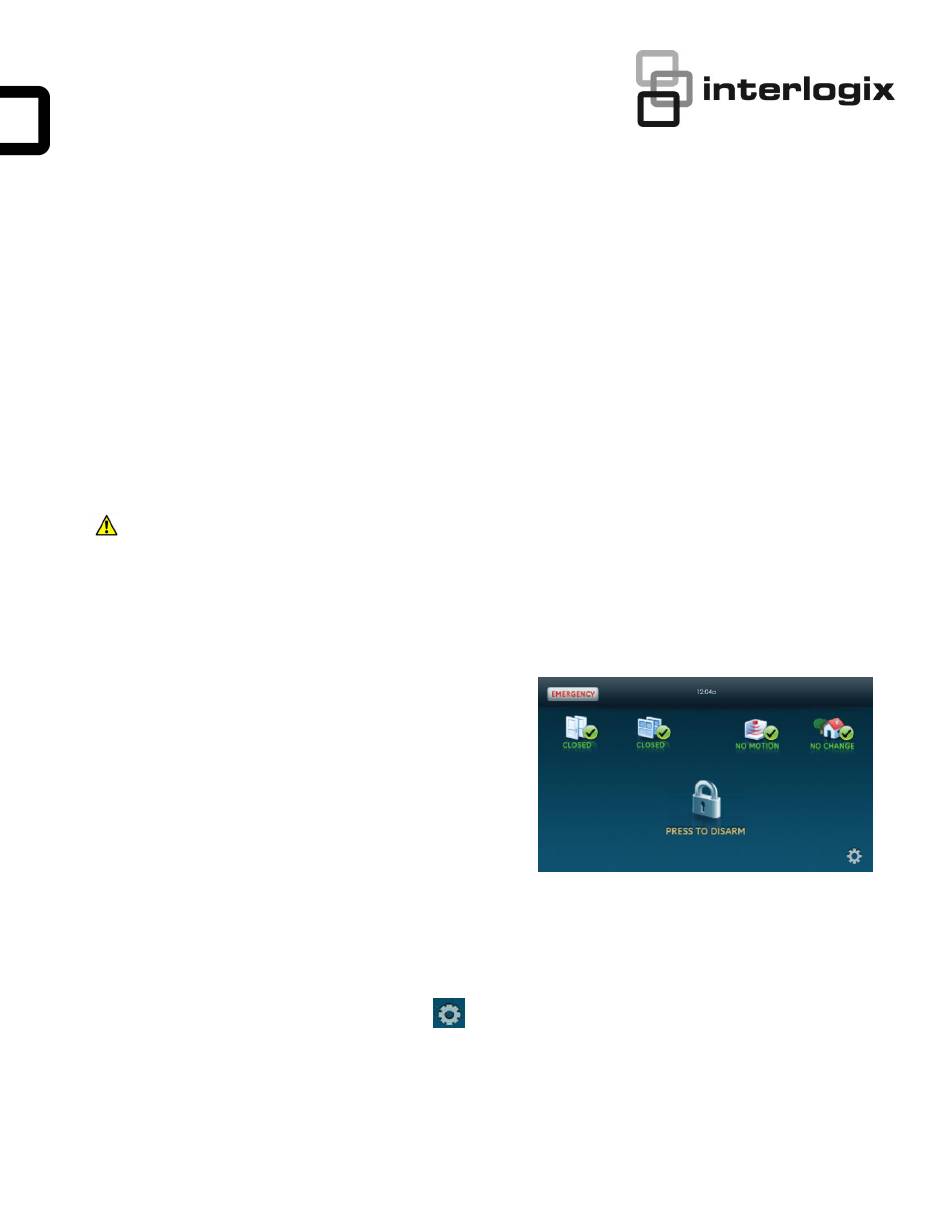

Main Screen
Figure 1:
Main Screen
The look and color of the Main Screen may vary depending up on
the configuration by your security provider. The location of the
buttons, controls, and icons are the same as shown in this manual.
Colors and icon styles may differ to match those of the service
provider's mobile application. For any questions contact your
security provider.
1 / 10
P/N 466-5437 • REV A • 16OCT18
