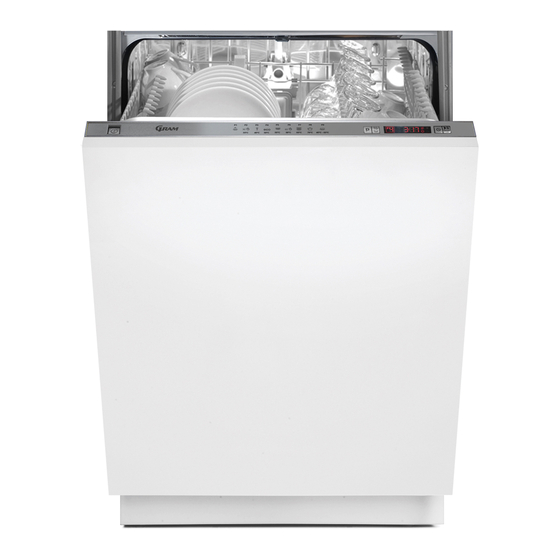

- Page 1 OM 62-37 T...
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
CONTENTS 1 INSTRUCTIONS FOR SAFETY 5 PROGRAM SELECTION AND ENVIRONMENT AND OPERATING YOUR MACHINE General safety ..........4 Intended use ........... 4 Button and Button Descriptions ....22 Children’s safety ..........5 Program Selection ........23 Disposing of packaging material ....5 Adding Functions to the Program ....25 Transportation of the product ....... -
Page 4: Instructions For Safety And Environment
Do not operate the product • Never use chemical solvents in if the power cable / plug is the product. They bring forth damaged! Call the Gram the risk of explosion. Service. • When you pull the upper and •... -
Page 5: Children's Safety
instructions for safety and environment • This appliance is intended Disposing of packaging to be used in household and material similar applications such as: Packaging materials are - Staff kitchen areas in shops, dangerous to children. Keep offices and other working packaging materials in a safe environments;... -
Page 6: Compliance With Weee Directive And Disposing Of The Waste Product
Compliance with WEEE Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 7: Dishwasher
DISHWASHER Overview 1. Upper impeller 2. Lower basket 3. Lower impeller 4. Rating Label 5. Control panel 6. Door 7. Detergent dispenser 8. Filters 9. Cutlery basket 10. Salt reservoir lid 11. Upper basket rail 12. Upper basket 13. TurboDrying (depends on model) 7 / 36 EN... -
Page 8: Technical Specifications
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 9: Installation
INSTALLATION Appropriate installation Refer to the nearest Authorised Service Agent for installation of your product. To location make the product ready for use, make sure • Place the product on a solid and flat that the electricity, tap water supply and floor that has sufficient load carrying water drainage systems are appropriate capacity! The product must be installed... -
Page 10: Aquasafe
Installation Permitted water temperature: up to drainpipe without bending it. Tightly fix the 25°C water discharge hose to the drainpipe in The dishwasher may not be connected to order to prevent any dislocation of the water open warm water devices or flow-through discharge hose during operation of the water heaters. -
Page 11: Adjusting The Feet
Installation breaker protection are specified in the “Technical specifications” section. If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse. • The specified voltage must be equal to your mains voltage. -
Page 12: Preparation
PREPARATION Tips for energy saving with the same performance continuously. Dishwasher salt is used for this purpose. Following information will help you use the Use only special softening salts product in an ecological and energy-efficient produced particularly for the manner. dishwashers in your machine. -
Page 13: Detergent
Preparation wash away the scattered salt in the Salt reservoir will fill with water machine. when you start the product. Therefore, add the softening salt Since different salt brands in the before starting the machine. market have different particle sizes and since the water Before initial use, fill the water hardness may vary, dissolution softening system with 1 litre of... -
Page 14: Combined Tablet Detergents
Preparation If dishes have been waiting Do not put solvents into the for a long time and have detergent dispenser. There is risk dried residues, fill the 5 cm³ of explosion! compartment too (2). Put the detergent into the detergent dispenser 3. -
Page 15: Rinse Aid
Preparation up to a specific degree of water hardness. Rinse aid Above this limit regeneration salt and rinse The rinse aid used in dishwashers aid must be added. Refer to the instructions is a special combination used on the packaging of the combined detergent to increase drying efficiency whether it is suitable for the hardness level of and prevent water or limescale... - Page 16 Preparation decreased. This is set to position 4 as Placing the dishes into the factory default. dishwasher You can use your dishwasher in the optimum 4. Close the lid of the reservoir by pressing way with respect to energy consumption and on it lightly.
- Page 17 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware 17 / 36 EN...
-
Page 18: Cutlery Basket
Preparation Cutlery basket To raise the basket: 1. Grab one of the upper basket wires Cutlery basket is designed to wash your (right or left) and lift it up (A). dishes such as knife, fork, spoon, etc. in an 2. Repeat the same process to raise the efficient manner. -
Page 19: Upper Basket Height Adjustable Rack
Preparation Upper basket height Collapsible lower basket tines adjustable rack There are foldable tines (A) located at the lower basket of the machine are designed Use the lower and upper parts of the height for an easier placement of large pieces such adjustable racks in the upper basket of as pans, bowls, etc. -
Page 20: Lower Basket Multipurpose / Height Adjustable Service Rack
Preparation Lower basket multipurpose / Make sure that the impeller does height adjustable service rack not touch the dishes you placed This accessory located at the lower basket on the racks. of your machine allows you to easily wash To close the racks: pieces such as extra glasses, long ladles and 1. -
Page 21: Program Selection And Operating Your Machine
PROGRAM SELECTION AND OPERATING YOUR MACHINE On / Off Button Program Selection Button Start/Pause/Cancel Button Half Load/Tablet Detergent Button Display Delayed Start Button Handle 9 10 12 13 Program Indicator 13. Delayed Start Indicator Salt Indicator 14. Half Load/Tablet Detergent Indicator 10. -
Page 22: Button And Button Descriptions
Program Selection and Operating Your Machine Button and Button Descriptions Half Load / Tablet Detergent Button Half Load / Tablet Detergent Button allows On / Off Button you to turn on and off the Half Load and When you press the On/Off button, the Tablet Detergent functions of your machine. -
Page 23: Program Selection
Program Selection and Operating Your Machine button until Half Load and Tablet Detergent Total time can be different from the Indicators illuminate together. time indicated at the beginning since it can change while the program If you have used the Half Load is running, depending on the or Tablet Detergent features temperature of the room where your... - Page 24 Program Selection and Operating Your Machine 24 /36 EN...
-
Page 25: Adding Functions To The Program
Program Selection and Operating Your Machine Adding Functions to the symbol start flashing in the display. For Program a couple of minutes the machine will fulfill the necessary operations required for With the help of the add function buttons, cancellation. Remaining time indicator (11) you can run the selected program together displays “0:00”. -
Page 26: Salt Indicator
Program Selection and Operating Your Machine Rinse Aid Indicator delayed start indicator will start flashing. Select the new program and/or add Check the rinse aid warning display on the the functions as described in Program screen to find out if there is sufficient amount Selection and Table of Average of rinse aid in your machine. - Page 27 Program Selection and Operating Your Machine • • Check if the upper and lower impellers Leave your dishes in the machine for rotate freely. about 15 minutes after they are washed • Put sufficient amount of detergent in the in order to have them cooled down. detergent dispenser and close its lid.
-
Page 28: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the filters Service life of the product extends and frequently faced problems decrease if it is Clean the filters at least once a week in cleaned at regular intervals. order for the machine operates efficiently. Unplug the product and turn off Check if food residues are left on the filters. -
Page 29: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 30: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller (A, B). -
Page 31: Troubleshooting
TROUBLESHOOTING Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 32 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 33 Troubleshooting There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 34 Troubleshooting • Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing. • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers.
- Page 35 Troubleshooting • Corrosion has occurred on glass due to soft water. >>> Measure the hardness of the supply water appropriately and check the water hardness setting. If your supply water is soft (<5 dH), do not use salt. Choose programmes that wash in higher temperatures (e.g. 60-65°C).
- Page 36 Gram A/S Gram A/S Gram A/S Tel.: 22 07 26 30 Tel.: 040 38 08 40 Tel.: 020 7756 350 www.gram.no www.gram.se www.gram.fi Gram A/S Gejlhavegård 2B DK-6000 Kolding +45 73 20 10 00 www.gram.dk 15 0747 01 00_AB_GRAM_SM_EN/ 29-09-16.(8:48)
