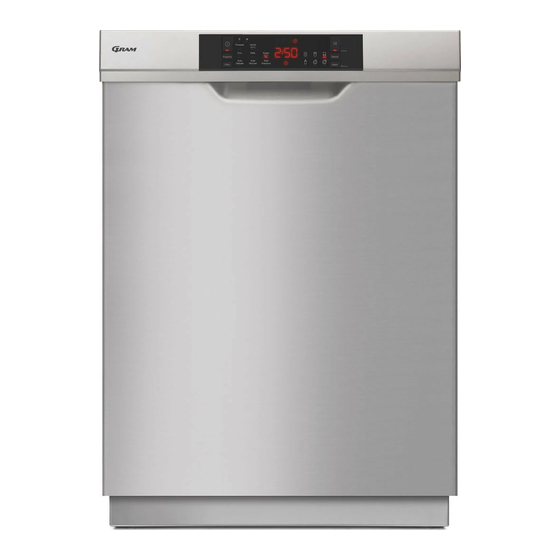

- Page 1 Dishwasher / User Manual OM 6330-90 RT/1 OM 6330-90 RT X/1...
- Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Electrical Connection ....................7 3.TECHNICAL SPECIFICATIONS ..................11 3.1. - Page 4 8.CLEANING AND MAINTENANCE ................. 24 8.1. Filters ........................... 24 8.2. Spray Arms ........................24 8.3. Drain Pump ........................25 9.TROUBLESHOOTING ....................26...
-
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. -
Page 6: Installation Warnings
2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. -
Page 7: During Use
pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher. - Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
- Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
-
Page 10: Installation
2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded. -
Page 11: Electrical Connection
2.4. Drain Hose 2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the... - Page 12 Fitting the machine undercounter EN -8...
- Page 13 Adjust the machine’s feet EN -9...
- Page 14 Option 2 :To put the furtniture kickplate. Option 3 :To put the adjustable plint group. Follow the instructions is given with adjustable plint group. EN -10...
-
Page 15: Technical Specifications
3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 15 place Capacity settings Dimensions (mm) 820-870 (mm) Height 870-920(mm) Width 598(mm) Depth 570(mm) Net weight 53,6kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1. General appearance 1. Upper basket with racks Total power 2. -
Page 16: Before Using The Appliance
4.3. Fill the salt (IF AVAILABLE) 4. BEFORE USING To add softener salt, open the salt THE APPLIANCE compartment cap by turning it counter clockwise. (1) (2) At first use, fill the 4.1. Preparing your compartment with 1 kg salt and water (3) until dishwasher for first use it is almost overflowing. -
Page 17: Test Strip
4.4. Test Strip Run water through Keep the strip in Set the hardness level of Shake the strip. Wait (1min.) the tap (1min.) the water (1sec) your machine. second munite munite NOTE: The factory hardness level setting is “3”. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices. -
Page 18: Filling The Detergent
Continued use of too much detergent may set too height, you can see bluish layers on cause machine damage. glass and dishes. Using little detergent can result in poor cleaning and you can see whitish 4.12. Filling the rinse-aid and setting streaksin hard water. -
Page 19: Loading Your Dishwasher
5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. - Page 20 Height Adjustable Rack (peg type) Height adjustment The height adjustable racks enable glasses The upper basket includes a mechanism and cups to be placed on or under the which enables the height of the basket to be adjusted up (1) or down (2) without having racks.
- Page 21 Multi-functional Rack System Multi-functional rack system is located in the bottom basket of your machine. You can easily wash spare glasses or dishes like long ladles, bread knife with the help of this accesory. Please fold the racks by putting them from position to position, in order to put the racks in the multi-functional rack system into the...
-
Page 22: Alternative Basket Loads
Alternative basket loads Incorrect Loads Lower Basket Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result. Top basket Incorrect loads EN - 18... -
Page 23: Programme Table
EN - 19... - Page 24 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only. • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
-
Page 25: The Control Panel
7. THE CONTROL PANEL when the machine is paused. 4. Washing Cycle Progress Indicators The display will show the symbols corresponding to the status of the programme in operation. While the Drying symbol is on, the machine will remain silent with respect to the programme you have selected for 15 to 100 minutes. - Page 26 change washing temperature and time. 11. Half Load Indicator Select the Half Load function to choose which area of the dishwasher contains dishes to be washed. You can select both baskets, the upper basket only, or the lower basket only. Press the button until the symbol corresponding to the basket containing the dishes to be washed illuminates.
-
Page 27: Changing A Programme
7.1. Changing a programme 7.3. Switching the Machine Off If you would like to change the programme when the machine is already running. Pull the plug out of the outlet. Turn off the water tap. Press the Start/ Switch your machine off with the On/Off button Pause button. -
Page 28: Cleaning And Maintenance
8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue. -
Page 29: Drain Pump
8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements. -
Page 30: Troubleshooting
9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start. - Page 31 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
- Page 32 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing Separate the inlet hose from the tap and clean the filter of Insufficient water the hose.
- Page 33 The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only.
- Page 34 .gram.no www.gram.se .gram.se www.gram.fi .gram.fi Gram Gram A/S . A/S . Gejlha Gejlhavegård 2B . vegård 2B . DK-6000 K DK-6000 Kolding . olding . +45 73 20 10 00 . +45 73 20 10 00 . www www.gram.dk .gram.dk...
