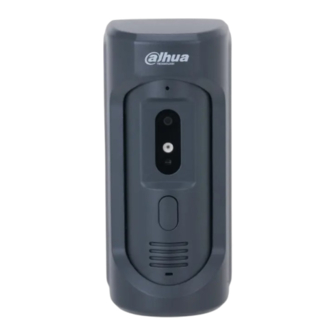

- Page 1 Villa Door Station User’s Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0...
-
Page 2: Foreword
User’s Manual Foreword General This manual introduces the webpage configurations of the villa door station (hereinafter referred to as "VTO"). Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable CAUTION result. -
Page 3: Important Safeguards And Warnings
User’s Manual Important Safeguards and Warnings The following description is the correct application method of the VTO. Read the manual carefully before use, to prevent danger and property loss. Strictly conform to the manual during use and keep it properly after reading. Operating Requirements Do not expose the device to direct sunlight or heat source. -
Page 4: Table Of Contents
User’s Manual Table of Contents Foreword ................................I Important Safeguards and Warnings ......................II 1 Initializing the VTO ............................1 2 Login and Resetting Password ........................2 Login ....................................... 2 Resetting Password ................................... 2 3 Main Interface ..............................4 4 Local Settings ..............................5 Basic ........................................ - Page 5 User’s Manual Cybersecurity Recommendations ..................... 31...
-
Page 6: Initializing The Vto
User’s Manual Initializing the VTO For first-time login or after resetting the VTO, you need to initialize it on the web interface. Power on the VTO. Go to the default IP address (192.168.1.108) of the VTO. Make sure that the IP address of your PC is in the same network segment as the VTO. Device initialization Enter and confirm the password, and then click Next. -
Page 7: Login And Resetting Password
User’s Manual Login and Resetting Password Login Before login, make sure that the PC is in the same network segment as the VTO. Go to the IP address of the VTO in the browser. For first-time login, enter the default IP (192.168.1.108). If you have multiple VTOs, we recommend changing the default IP address (Network >... - Page 8 User’s Manual Send the string to the email: support_gpwd@htmicrochip.com, and then the security code will be sent to the email address configured during initialization. Enter the security code in the input box, and then click Next. If you did not set an email address during initialization, contact your supplier or ...
-
Page 9: Main Interface
User’s Manual Main Interface Main interface Table 3-1 Main interface introduction Function Description : Change the password and your email address. : Go to the main interface. : Log out, restart the VTO or restore the VTO to factory settings. General function If you restore the VTO to factory settings, all data except external storage will be deleted. -
Page 10: Local Settings
User’s Manual Local Settings This chapter introduces the detailed configuration of the VTO. Basic Select Local Settings > Basic. Basic Configure the parameters. Table 4-1 Basic parameter description Parameter Description Device Type Select Villa Station or Small Apartment as needed. The default phone number for the management center is 888888, and Center Call No. -
Page 11: Video & Audio
User’s Manual Parameter Description receives a call, all extension VTHs will also receive the call. Total SD Card Capacity Displays the total and used capacity of the SD card. You can click Format SD Used Capacity to delete all the data in the SD card. Format Auto Capture When the door is unlocked, the VTO will take two snapshots and save... - Page 12 User’s Manual Video and audio Configure the parameters, which will take effect upon change. Table 4-2 Video parameter description Parameter Description Select different resolution as needed: 1080P: 1920 × 1080. 720P: 1280 × 720. Video WVGA: 800 × 480. Format QVGA: 320 ×...
-
Page 13: Access Control Settings
User’s Manual Parameter Description PAL is mostly used in China and Europe, and NTSC primarily in the United States and Japan. Brightness The larger the value, the brighter the image. Contrast Larger value for more contrast between bright and dark areas. Make the color brighter or darker. - Page 14 User’s Manual Local Configure the parameters. Table 4-3 Local access control parameter description Parameter Description Unlock Responding The door can only be unlocked again after the interval. Interval Unlock Period The time during which the lock stays unlocked. Enable it, and the door will not be locked until the door sensors contact each other.
-
Page 15: Rs-485
User’s Manual 4.3.2 RS-485 Select Local Settings > Access Control Settings, and then configure the parameters of the lock connected through the RS-485 port. See Table 4-3 for parameter description. Lock connected through the RS-485 port 4.3.3 Password Management Add a username and password used to unlock the door. Password management System Configure time parameters, NTP server, and more. - Page 16 User’s Manual System Configure the parameters. Table 4-4 System parameter description Parameter Description Date Format Select a format as needed. Time Format System Time Changing system time might cause problems on video searching and information publication. Turn off video recording and auto snapshot before changing it. Configure the time zone as needed.
-
Page 17: Security
User’s Manual Parameter Description This function will occupy 8088 and 8087 ports. Click Save. Security Configure functions that involve device security. Select Local Settings > Security. Security Configure the parameters. Table 4-5 Security parameter description Parameter Description Enable the use of CGI command. CGI Enable We recommend turning it off. -
Page 18: Wiegand
User’s Manual Parameter Description protocol. We recommend turning it off. Otherwise, the VTO might be exposed to security risks and data leakage. Output encrypted bit stream through RTSP. RTSP Over TSL We recommend turning it on. Otherwise, the VTO might be exposed to security risks and data leakage. -
Page 19: Onvif User
User’s Manual Wiegand Onvif User Add accounts for devices to monitor the VTO through the ONVIF protocol. If you delete an account, it cannot be undone. Select Local Settings > Onvif User. Click Add. Add an ONVIF user Enter the information, and then click Save. ONVIF devices can now monitor the VTO by using the account. -
Page 20: Upload File
User’s Manual Upload File Upload audio file to change the sound when calling, unlocking the door, and more. Select Local Settings > Upload File. Select an audio type, and then click Browse to select the audio file as needed. Change the sound prompt Click Upload. -
Page 21: Household Setting
User’s Manual Household Setting This chapter introduces how to add, modify, and delete VTO, VTH, VTS, and IPC, and how to send messages from the SIP server to VTOs and VTHs when the VTO works as the SIP server. If you are using other servers as the SIP server, see the corresponding manual for details. -
Page 22: Vth Management
User’s Manual Add VTO Configure the parameters. The SIP server must be added. Table 5-1 Add VTO configuration Parameter Description The VTO number you configured. See Table 4-1 for details. Registeration Keep it default. Password Build No. Available only when other servers work as the SIP server. Unit No. - Page 23 User’s Manual Room number management Click Add. Add a room number Configure the parameters. Table 5-2 Room information Parameter Description First Name Last Name Enter the information you need to differentiate each room. Nick Name Enter a room number, and then configure the number on a VTH to connect Room No.
-
Page 24: Issuing Access Card
User’s Manual Click to modify or delete a room number. 5.2.2 Issuing Access Card Issue an access card to unlock the door of a room. To use this function, the VTO must have a card reader. Select Household Setting > VTH Management, click Add, and then click Issue Card. Countdown notice Swipe the card on the VTO. -
Page 25: Issuing Fingerprint
User’s Manual 5.2.3 Issuing Fingerprint Issue fingerprints to unlock the door of a room. To use this function, the VTO must have a fingerprint scanner. Select Household Setting > VTH Management, click Add, and then click Issue Fingerprint. Issue fingerprint Enter a username, assign unlock permission as needed, and then click Save. -
Page 26: Ipc Setting
User’s Manual Add VTS Configure the parameters. Table 5-3 Add VTS configuration Parameter Description VTS No. The number of the VTS. Registeration Keep it default. Password IP Address VTS IP address. Click Save. IPC Setting You can add IPC and NVR to the VTO working as the SIP server, and then all the connected VTHs can monitor them. - Page 27 User’s Manual IPC setting Click Add IPC Configure the parameters. Table 5-4 Add IPC configuration Parameter Description IPC Name Enter the name that identifies the IPC. IP Address IP address of the IPC.
-
Page 28: Status
User’s Manual Username Web interface login username and password of the device. Password Port Keep it default. Protocol Select Local or Onvif. Main: Better video quality but requires more bandwidth. Stream Type Extra1: Smoother video with poorer quality, but requires less bandwidth. Channel The number of the channels that a device supports. -
Page 29: History Info
User’s Manual Send information Specify the Validity Period that the message will be valid. Enter the VTO number or VTH number, or select All devices to send the message to all the devices in the network, and then enter the title and content of your message. Click Confirm. -
Page 30: Network
User’s Manual Network This chapter introduces how to configure the network parameters. Basic 6.1.1 TCP/IP You can modify the IP address, subnet mask, default gateway, and DNS of the VTO. Select Network > Basic. TCP/IP and port Configure the parameters, and then click Save. The VTO will restart, and you need to modify the IP address of your PC to the same network segment as the VTO to log in again. -
Page 31: P2P
User’s Manual Parameter Description Enable it and click Save. You can now enter https://VTO IP address:HTTPS Port to HTTPS Port log in to the VTO. Used for accessing the VTO with devices in other networks. See "6.2 UPnP" for TCP/UDP Port details. -
Page 32: Adding Upnp Services
User’s Manual 6.2.2 Adding UPnP Services Select Network > UPnP. Click Add. Configure the parameters as needed. Add a UPnP service Table 6-2 Parameter description Parameter Description Service Name Enter the information as needed. Service Type Protocol Select TCP or UDP as needed. Internal Port Use port number from 1024 through 5000. -
Page 33: Firewall
User’s Manual SIP Server Select a server type as needed. The VTO you have logged in as the SIP server: Enable SIP Server, and click Save, and then the VTO will restart. You can add VTOs and VTHs to this VTO. See the details in "5 Household Setting". If the VTO you have logged in does not SIP server, do not enable SIP Server;... - Page 34 User’s Manual Firewall Select one or more firewall types, and then enable them. Configure the parameters. Table 6-4 Firewall type description Type Description Select either Allowlist or Blocklist, and then add an IP address or segment Network Access which is allowed or denied to access the VTO. PING Prohibited The VTO will not response to ping to avoid ping attacks.
-
Page 35: Log Management
User’s Manual Log Management Select Search Log. You can search for different logs, and export them to your PC as needed. If storage is full, the oldest records will be overwritten. Back up the records as needed. - Page 36 User’s Manual Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
- Page 37 User’s Manual We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.
- Page 38 User’s Manual Enable IP/MAC address filtering function to limit the range of hosts allowed to access the device.
- Page 39 User’s Manual...
