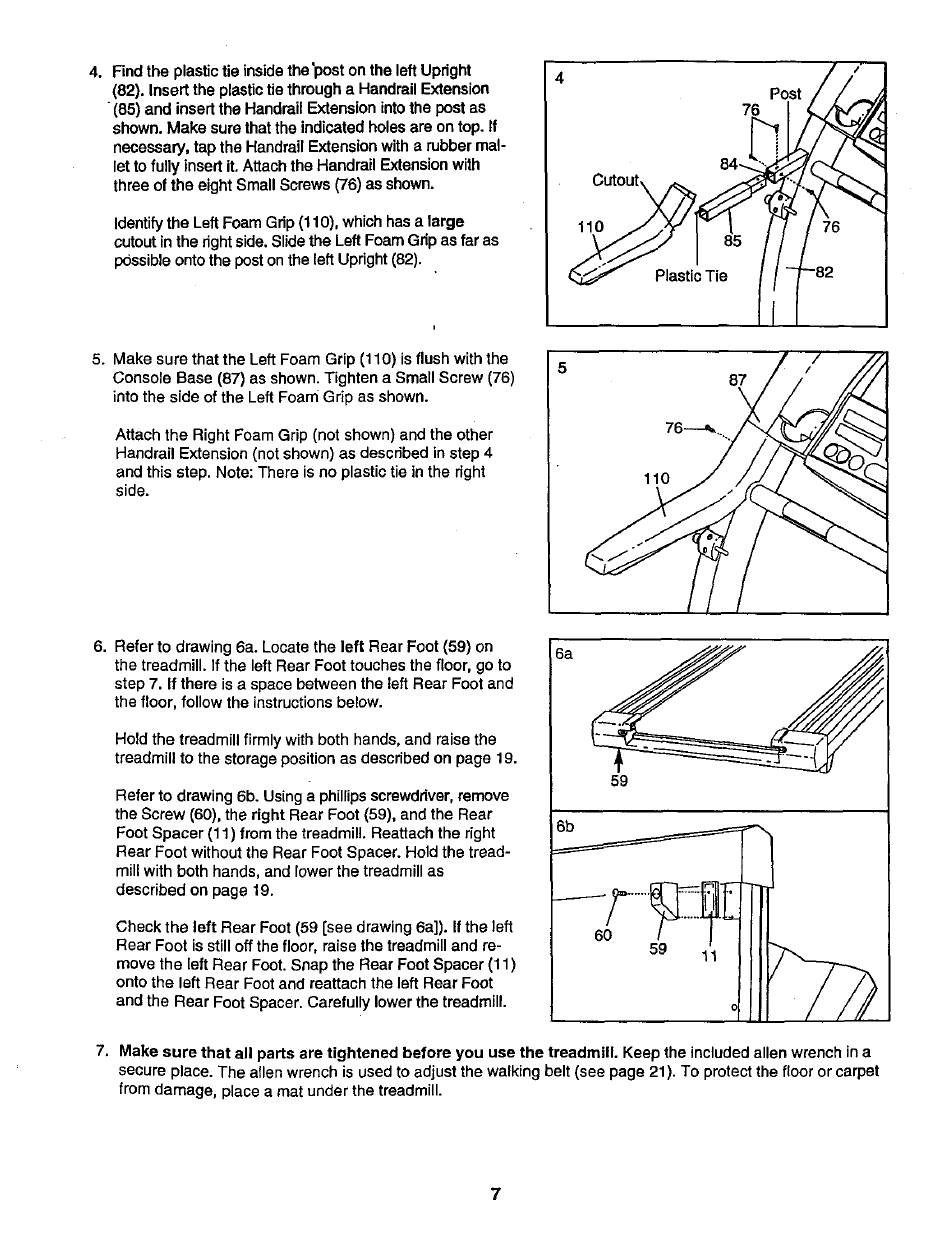

4. Find the plastic tie inside the'post on the left Updght
(82). Insert the plastic tie through a Handrail Extension
•(85) and insert the Handrail Extension into the post as
shown. Make sure that the indicated holes are on top. If
necessary, tap the Handrail Extension with a rubber mal-
let to fully insert it, Attach the Handrail Extension with
three of the eight Small Screws (76) as shown.
Identify the Left Foam Grip (110), which has a large
cutout in the right side. Slide the Left Foam Gdp as far as
possible onto the post on the left Updght (82).
5. Make sure that the Left Foam Grip (110) is flush with the
Console Base (87) as shown. Tighten a Small Screw (76)
into the side of the Left Foam Grip as shown.
Attach the Right Foam Grip (not shown) and the other
Handrail Extension (not shown) as described in step 4
and this step. Note: There is no plastic tie in the dght
side.
4
5
110
85
Plastic Tie
87
\
110
Post
76
6. Refer to drawing 6a. Locate the left Rear Foot (59) on
the treadmill. If the left Rear Foot touches the floor, go to
step 7. If there is a space between the left Rear Foot and
the floor, follow the instructions below.
Hold the treadmill firmly with both hands, and raise the
treadmill to the storage position as described on page 19.
Refer to drawing 6b. Using a phillips screwdriver, remove
the Screw (60), the right Rear Foot (59), and the Rear
Foot Spacer (11) from the treadmill. Reattaoh the right
Rear Foot without the Rear Foot Spacer. Hold the tread-
mill with both hands, and lower the treadmill as
described on page t 9.
Check the left Rear Foot (59 [see drawing 6a]). If the left
Rear Foot is still off the floor, raise the treadmill and re-
move the left Rear Foot. Snap the Rear Foot Spacer (11 )
onto the left Rear Foot and reattach the left Rear Foot
and the Rear Foot Spacer. Carefully lower the treadmill.
6a
59
6b
7. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The atlen wrench is used to adjust the walking belt (see page 21). To protect the floor or carpet
from damage, place a mat under the treadmill.
7
