LEYBOLD 312 31T Original Operating Instructions

LEYBOLD 312 31T Original Operating Instructions

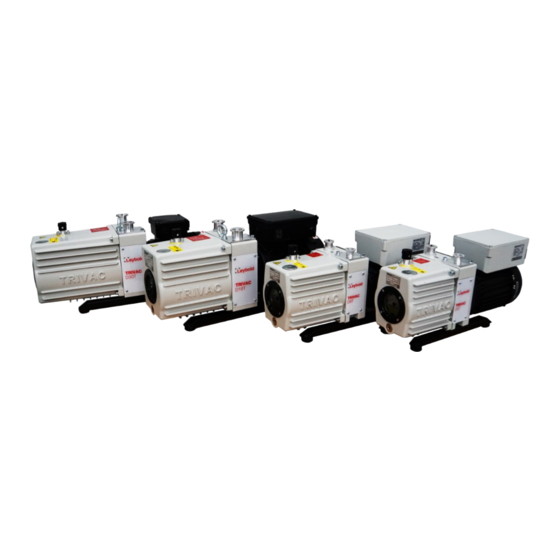

Two-stage rotary vane pump

Advertisement

Quick Links

®
TRIVAC
T
D4/8/16/30T
Two-Stage Rotary Vane Pump
▪ with mineral oil
Original Operating Instructions 300507907_002_C2
Part No:
312 31T
312 36T
312 41T
312 46T
312 51V
312 56T
312 61V
312 66T
and other variants

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 312 31T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LEYBOLD 312 31T

  • Page 1 ® TRIVAC D4/8/16/30T Two-Stage Rotary Vane Pump ▪ with mineral oil Original Operating Instructions 300507907_002_C2 Part No: 312 31T 312 36T 312 41T 312 46T 312 51V 312 56T 312 61V 312 66T and other variants...
  • Page 2: Table Of Contents

    Checking the Condition of LVO 108 Oil Change Cleaning the Inlet Screen Disassembly and Reassembly of the Electric Motor 5.6.1 Checking the Coupling Maintaining the Gas Ballast Valve Troubleshooting Wearing Parts and Original Spare Parts Waste Disposal 2 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 3 Item No. in that order. We reserve the right to alter the design or any data given in these Operating Instructions. The illustrations are not binding. Retain the Operating Instructions for further use. 300507907_002_C2 - 05/2019 - © Leybold 3...
  • Page 4: Important Safety Information

    Before starting up for the first time, the motor circuit must be equipped with a suitable protective motor switch. Please take note of the infor- mation in these Operating Instructions and on the electric motor (wiring diagram). 4 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 5: Thermal Hazards

    T pumps including the accessories are fundamentally not suited for pumping of combustible and explosive gases or vapours. 0.6 Hazard caused by noise CAUTION The noise level produced by the pump is less than 60 dB(A). 300507907_002_C2 - 05/2019 - © Leybold 5...
  • Page 6: Risk Of Damaging The Pump

    Here, the ex- haust line must slope down and away from the pump. 13 In the case of custom pumps please note the information provided in the supplementary sheets. 6 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 7: Description

    The gas ballast stops condensation of vapours in the pump chamber up to the limit of the water vapour tolerance as specified in the technical data for the pump. 300507907_002_C2 - 05/2019 - © Leybold 7...
  • Page 8 For a proper function of the anti-suckback valve the pressure in the inlet port should be lower than 800 mbar. Bearings Non-return valve Pump chamber of TRIVAC Oil reservoir Oil pump Fig. 2 Schematic of the lubricating system 8 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 9: Lubricants

    In case of operation of a TRIVAC T we instruct our vacuum pump oil LVO100 or LVO 108. LVO 108 can be used only in China mainland. Use only the kind of oil specified by Leybold. NOTICE LVO100 oil Parts No. LVO108 Oil Parts No.
  • Page 10: Accessories

    183 41 For D16/30T 1 Pipe bend, DN25KF 184 37 1 Centering ring with O-Ring, DN25KF 182 07 1 Clamping ring, DN25KF 183 42 Remarks: Any other request about accessories, please contact us. 10 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 11: Technical Data

    2) The motor may accelerate with a delay when simultaneously an undervoltage is present at the motor and the pump is at the minimum permissible and ambient temperature. Under such operating conditions the motor protection switch may respond. 3) The value is measured with 3 phase motor under 50Hz. 300507907_002_C2 - 05/2019 - © Leybold 11...
  • Page 12 ———— Ultimate total pressure without gas ballast - - - - - - - Ultimate total pressure with gas ballast (pos.1) ® Fig. 4 Pumping speed characteristics for the TRIVAC T pumps (50 Hz operation, SI units) 12 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 13 Description Pump 140.5 140.5 D16T D30T ® Fig. 5 Dimensional drawing for TRIVAC T pumps (dimensions a, b, c1, d, h and h1 are approximate) (dimensions in mm 1inch = 25.4 mm) 300507907_002_C2 - 05/2019 - © Leybold 13...
  • Page 14: Transport And Storing

    When a pump is put into operation after it has been stored for over one year, standard maintenance should be run on the pump and the oil should also be exchanged (see Section 5.4). We recommend that you contact the Leybold Service.
  • Page 15: Installation

    The maximum gas inlet temperature must not exceed 60 °C. The maximum pressure at the inlet must not exceed atmospheric pres- sure (approximately 1013 mbar). Never apply overpressures to the pump’s inlet. The maximum exhaust pressure must not exceed 0.5 bar (overpressure). 300507907_002_C2 - 05/2019 - © Leybold 15...
  • Page 16: Conforming Utilization

    Intake port Exhaust port Gas ballast (GB) knob Gas ballast (GB) label (0 close GB / 1 open small GB / 2 open big GB) Oil-level glass Fig. 6 Connections and controls 16 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 17: Connection To The System

    Avoid back flowing condensate Install the exhaust line with a downward slope (lower than the pump) so as to prevent condensate from flowing back into the pump. If this is not possible, insert a condensate trap. 300507907_002_C2 - 05/2019 - © Leybold 17...
  • Page 18: Electrical Connections

    In order to reduce the emission of oil vapours we recommend the installation of an additional exhaust filter (Leybold accessory, see Section 1.5). Depending on the type of applica- tion or the kind of pumped media, the corresponding regulations and infor- mation sheets must be observed.
  • Page 19 D30T 220V 50Hz 380V 50Hz 200 V 50/60 Hz 220-230 V 50/60 Hz 380-415 V 50 Hz To reverse running invert L1 and L2. 380-460 V 60 Hz Fig. 7 Motor connection diagram 300507907_002_C2 - 05/2019 - © Leybold 19...
  • Page 20: Operation

    The noise will reduce to normal level after the pump runs nor- mally. 20 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 21: Operation

    (if possible via a valve). Once all vapours have been pumped off from a process (e.g. during drying), the gas ballast valve can be closed to improve the attainable ultimate pres- sure. 300507907_002_C2 - 05/2019 - © Leybold 21...
  • Page 22: Operating Temperature

    Observe Safety Information 0.3. If - due to the ambient conditions - this temperature range is exceeded at ei- ther end of the range, contact Leybold Sales. The motor may accelerate with a delay when simultaneously an under voltage is present at the motor and the pump is at the minimum permissible and ambi- ent temperature.
  • Page 23: Maintenance

    All work must be carried out by suitably trained personnel. Maintenance or repairs carried out incorrectly will affect the life and per- formance of the pump and will void any warranty claims. Leybold offers practical courses on the maintenance, repair, and testing of ® TRIVAC T pumps.
  • Page 24: Maintenance Plan

    = Daily maintenance Exchange of all seals 6m = Six monthly maintenance ■ = Annual maintenance Function check ■ n-a = Maintenance every n years This check should be run by the Leybold service. 24 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 25: Leybold Service

    Maintenance 5.2 Leybold Service Whenever you send a pump to Leybold, indicate whether the pump is contami- nated or is free of substances which could pose a health hazard. If it is con- taminated, specify exactly which substances are involved.
  • Page 26: Monitoring The Oil Level

    Check and top up oil only after having shut down the pump first. Please note the safety information given in Section 0.3 und 0.4. Pumps which have not directly been delivered from Leybold, e.g. in systems, may have been filled with oils different from LVO100. In this case a refill with LVO100 may cause problems.
  • Page 27: Oil Change

    Further oil changes should be made before and after long-term storage of the pump. If the oil becomes contaminated too quickly, contact us for more support infor- mation . 300507907_002_C2 - 05/2019 - © Leybold 27...
  • Page 28: Cleaning The Inlet Screen

    If the dirt trap is defective, replace it with a new one. NOTICE The cleaning intervals depend on the application. If the pump is exposed to large amounts of abrasive materials, a dust filter should be fitted into the intake line. 28 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 29: Disassembly And Reassembly Of The Electric Motor

    The wear limit is at 3mm! In addition a visual inspection as to the presence of any damage needs to be Cam 2 done. If damaged, the coupling must be replaced. Sketch 1 Checking the wear limit 300507907_002_C2 - 05/2019 - © Leybold 29...
  • Page 30: Maintaining The Gas Ballast Valve

    Clean the parts and check that they are in perfect condition; If not, replace them. Remount In the reverse order. Ordering number of Gas Ballast Valve kit can be found in spare parts list. 30 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 31 Ordering number of Gas Ballast Valve kit can be found in spare parts list. *Repair: Refer to the stated section in these Operating Instructions. 1) Bubble test: The warm pump with degassed oil is running without gas 300507907_002_C2 - 05/2019 - © Leybold 31...
  • Page 32: Troubleshooting

    1) Bubble test: The warm pump with degassed oil is running without gas ballast and the intake is blanked off. The exhaust line is led into a vessel with water. If an evenly spaced line of bubbles appears then the pump has an external leak. 32 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 33 Note 300507907_002_C2 - 05/2019 - © Leybold 33...
  • Page 34: Wearing Parts And Original Spare Parts

    Consumables and main spare parts kits for TRIVAC T pumps are usually available on stock at Leybold’s service centers. The spare parts for your vac- uum pump are listed in the spare part list enclosed with product. We recommend to use these kits which have been defined to allow an optimal maintenance or repair.
  • Page 35: Waste Disposal

    Waste oil from vacuum pumps must not be mixed with other substances or materials. Waste oil from vacuum pumps (Leybold oils which are based on mineral oils) which are subject to normal wear and which are contaminated due to the influ- ence of oxygen in the air, high temperatures or mechanical wear must be dis- posed of through the locally available waste oil disposal system.
  • Page 36 All dispatch instructions laid down in the manual must be followed e.g.: Drain all service fluids ● Remove filter elements ● Seal all openings airtight ● Pack/handle appropriately ● Attach the declaration of contamination outside of the packaging ● 36 300507907_002_C2 - 05/2019 - © Leybold...
  • Page 37 300507907_002_C2 - 05/2019 - © Leybold 37...
  • Page 38 +49-(0)221-347 31234 KT9 2QL sales@leybold.com Sales: info.ex@leybold.com www.leybold.com +44-13-7273 7300 Sales: Leybold Malaysia +44-13-7273 7301 Leybold GmbH Leybold Singapore Pte Ltd. sales.ln@leybold.com Sales Area North No. 1 Hi-Tech Service: Service: Branch Berlin Kulim Hi-Tech Park +44-13-7273 7320 Kulim, Kedah Darul...
