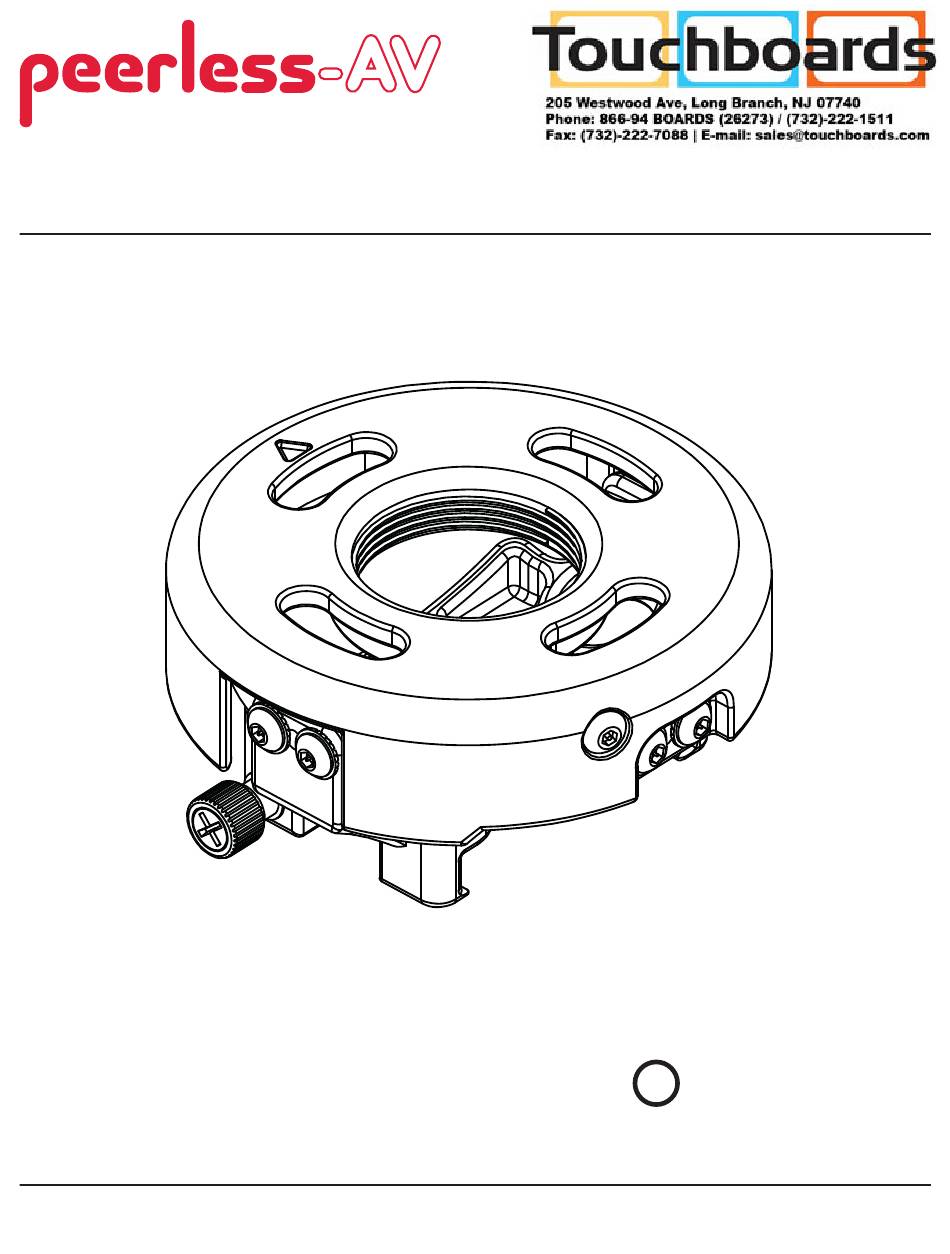

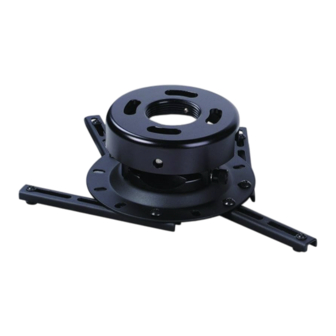

Installation and Assembly Manual:
PRS Series Projector Mount
Models: PRS-1, PRS-1S, PRS-1W
Features:
TM
• ImageLock
alignment prevents picture sag or drift
• Exclusive aluminum track quick release
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800)359-6500 • www.peerlessmounts.com
This product is intended for use with UL
U L
Listed products and must be installed by a
C
US
©
qualifi ed professional installer.
Maximum UL Load Capacity:
25 lb (11 kg)
ISSUED: 08-15-07 SHEET #: 055-9188-8 06-04-11
Advertisement
Table of Contents
Related Manuals for peerless-AV PRS Series
Summary of Contents for peerless-AV PRS Series
- Page 1 Installation and Assembly Manual: PRS Series Projector Mount Models: PRS-1, PRS-1S, PRS-1W This product is intended for use with UL Listed products and must be installed by a © qualifi ed professional installer. Features: Maximum UL Load Capacity: • ImageLock...
-
Page 2: Table Of Contents
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at (800) 865-2112. -
Page 3: Parts List
Before you start check the parts list to insure all of the parts shown are included. Parts List PRS-1 PRS-1S PRS-1W Description Qty. Part # Part # Part # A projector mount assembly 054-1174 054-4174 054-2174 B 4 mm security allen wrench 560-1718 560-1718 560-1718... -
Page 4: Installation To Extension Columns / Ceiling Plate
Installation to Extension Column / Ceiling Plate NOTE: Refer to accompanying instructions with ceiling plates (sold separately) for installing these models to ceiling. Screw projector mount assembly (A) onto extension column as shown in fi gure 1.1. Tighten swivel stop screw against extension column, fl ush mount tube or reducer using 4mm security t-wrench (B) as shown in fi... -
Page 5: Installation To Wood Joist Ceilings
Installation To Wood Joist Ceilings WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that projector mount assembly is fi rmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. -
Page 6: Installation To Concrete Ceilings
Installation to Concrete Ceilings WARNING • Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor. • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. -
Page 7: Installation To Threaded Rods
Installation to Threaded Rod (Not evaluated by UL - Professional installation only) Thread two 3/8-16 hex thin nylon-insert locknuts (not included) on two 3/8-16 threaded rods (not included) to the desired height of projector mount assembly. Attach projector mount assembly (A) to the two 3/8-16 threaded rods using two 3/8-16 hex thin nylon-insert locknuts as shown in fi... -
Page 8: Attaching Adapter Plate To Projector
Attaching Adapter Plate to Projector CAUTION • It is the responsibility of the installer to ensure that the projector is properly ventilated. SHOULDER NOTCH INDICATES FRONT OF PROJECTOR Installing Dedicated PAP Series DEDICATED ADAPTER PLATE Adapter Plate (sold separately) (SOLD SEPARATELY) NOTE: The projector dedicated adapter plate you are installing may differ in appearance from the sample illustrated in fi... -
Page 9: Attaching Adapter Plate To Projector Mount
Attaching Adapter Plate to Projector (continued) WARNING • Always use an assistant or mechanical lifting equipment to safely lift and position the projector. Slide connection block with projector into projector mount assembly (A) as shown. Push in and tighten captive screw to secure projector to projector mount assembly (A). -
Page 10: Cable Management
Cable Management fi g. 8.1 To make an opening to route cables through CABLES WITH COMBINATION NOTE: INNER DIAMETER OF projector mount assembly, adjust projector OF VGA CONNECTOR EXTENSION COLUMN MAY NOT mount assembly to full upward tilt position by AND RCA PLUGS ALLOW PASSAGE FOR ALL turning knob for tilt adjustment as shown in fi... -
Page 11: Projector Alignment
Projector Alignment To adjust yaw (swivel) for wood stud, concrete ceiling, and threaded rod mounting applications: Loosen wood screws (F), or locknuts for threaded rods, until projector mount can be rotated. Rotate mount to desired position and retighten screws or locknuts. To adjust yaw (swivel) for extension column applications: Loosen screw on projector mount assembly (A) indicated below until projector mount can be rotated. -
Page 12: Accessories
