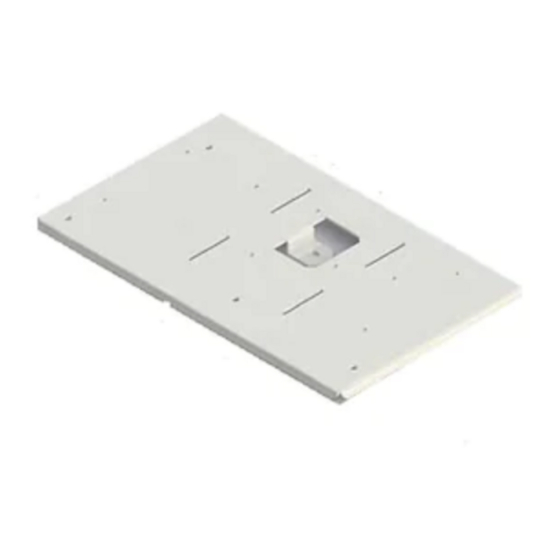

ACC978
10 lb
MAX
(4.5 kg)
Adaptor for Epson PowerLite
Compatible model/series:
ENG
Projectors: 420/425W/430/
435W/520/520W/525W/530
/535W & 536Wi fitted to 3M
SCP716, PROMETHEAN
PRM-20 or SMART MOUNT
UF55/65 projector arms
1
2013-12-16
#:120-9177-4
(2019-01-17)
Advertisement
Related Manuals for peerless-AV ACC978
Summary of Contents for peerless-AV ACC978
- Page 1 ACC978 10 lb (4.5 kg) Adaptor for Epson PowerLite Compatible model/series: Projectors: 420/425W/430/ 435W/520/520W/525W/530 /535W & 536Wi fitted to 3M SCP716, PROMETHEAN PRM-20 or SMART MOUNT UF55/65 projector arms 2013-12-16 #:120-9177-4 (2019-01-17)
- Page 2 WARNING ENG - Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
- Page 3 This page intentionally left blank. 2013-12-16 #:120-9177-4 (2019-01-17)
- Page 4 Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # interface plate 056-2344 retaining spacer 590-2020 M4 x 20mm 510-1061 M4 x 6mm 510-1059 M4 x 25mm 510-1082 #8 SAE flat washer 540-1001 M4 x 16mm 520-1087 4mm allen wrench 560-9646...
-
Page 5: Top View
TOP VIEW PROJECTOR HOLE PATTERN fitted to 3M SCP716 fitted to SMART MOUNT UF55/65 projector arms fitted to PROMETHEAN PRM-20 C (4) Note orientation B (4) Projector not included. SMART mount UF55/65 PROMETHEAN PRM-20 3M SCP716 2b-1 2013-12-16 #:120-9177-4 (2019-01-17) - Page 6 SMART mount UF55/65 D (2) Projector assembly not included. 2b-1 PROMETHEAN PRM-20 Loosen Promethean plate from mount to allow access to all mounting holes. 1/2" (13mm) 2b-2 E (2) F (3) Projector assembly not included 2013-12-16 #:120-9177-4 (2019-01-17)
- Page 7 3M SCP716 G (3) F (3) Projector assembly not included. Follow instructions provided with projector arm for further assembly details. 2013-12-16 #:120-9177-4 (2019-01-17)
-
Page 8: Limited Five-Year Warranty
(from date of the original installation of the product). At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
