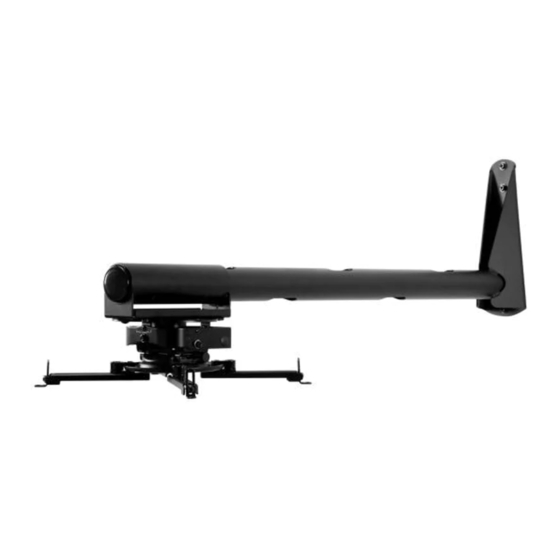

Universal projector wall arm
Hide thumbs
Also See for PSTA-028:
- Installation and assembly manual (9 pages) ,
- Installation and assembly manual (9 pages) ,
- Installation and assembly manual (9 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for peerless-AV PSTA-028
Summary of Contents for peerless-AV PSTA-028
- Page 1 Installation and Assembly: Universal Projector Wall Arm Models: PSTA-028, PSTA-028-W, PSTK-028, PSTK-028-W Max UL Load Capacity: 50 lb (22.7 kg) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com ISSUED: 03-23-09 SHEET #:055-9260-5 09-26-12...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Parts List
IMPORTANT: Read instruction sheet before you start installation and assembly. Before you start check the parts list to insure all of the parts shown are included. Parts List PSTA-028 PSTA-028-W PSTK-028 PSTK-028-W Description Qty. Part # Part # Part #... -
Page 4: Installation To Wood Stud
Installation to Wood Stud Walls for PSTA-028, PSTA-028-W Models WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. -
Page 5: Installation To Solid Concrete/Cinder Block
Installation to Solid Concrete or Cinder Block Wall for PSTA-028, PSTA-028-W Models WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... - Page 6 Installation to Wall Plate For PSTK-028, PSTK-028-W Models Secure wall arm (A) to wall plate (K) using four carriage bolts (L) and lock nuts (M). Installation to Wood Stud Wall for PSTK-028, PSTK-028-W WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.
- Page 7 Installation to Solid Concrete or Cinder Block Wall for PSTK-028, PSTK-028-W WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
-
Page 8: Assembly Of Adjustment Tube
Assembly of Adjustment Tube Slide carriage (B) over wall arm (A) and adjust to the desired projector throw distance as shown. Lock carriage (B) into place using four M5 x 10 mm screws (D). Installing PRG Projector Mount Installing PRG projector mount to wall arm assembly: Attach PRG projector mount (J) to carriage (B) using two 1/4-20 phillips screws (H) and two fl... -
Page 9: Routing Cables
Routing Cables Routing Cables through PRG projector mount and wall arm assembly: Guide projector cables into openings in projector mount and wall arm assembly as shown below. Insert Tube Cap (F) into end of wall arm (A). Note: Cables must be removed from projector before routing through wall arm. Note: Follow projector mount (PRG) instructions to install projector.
