Summary of Contents for peerless-AV PSTA-028-W

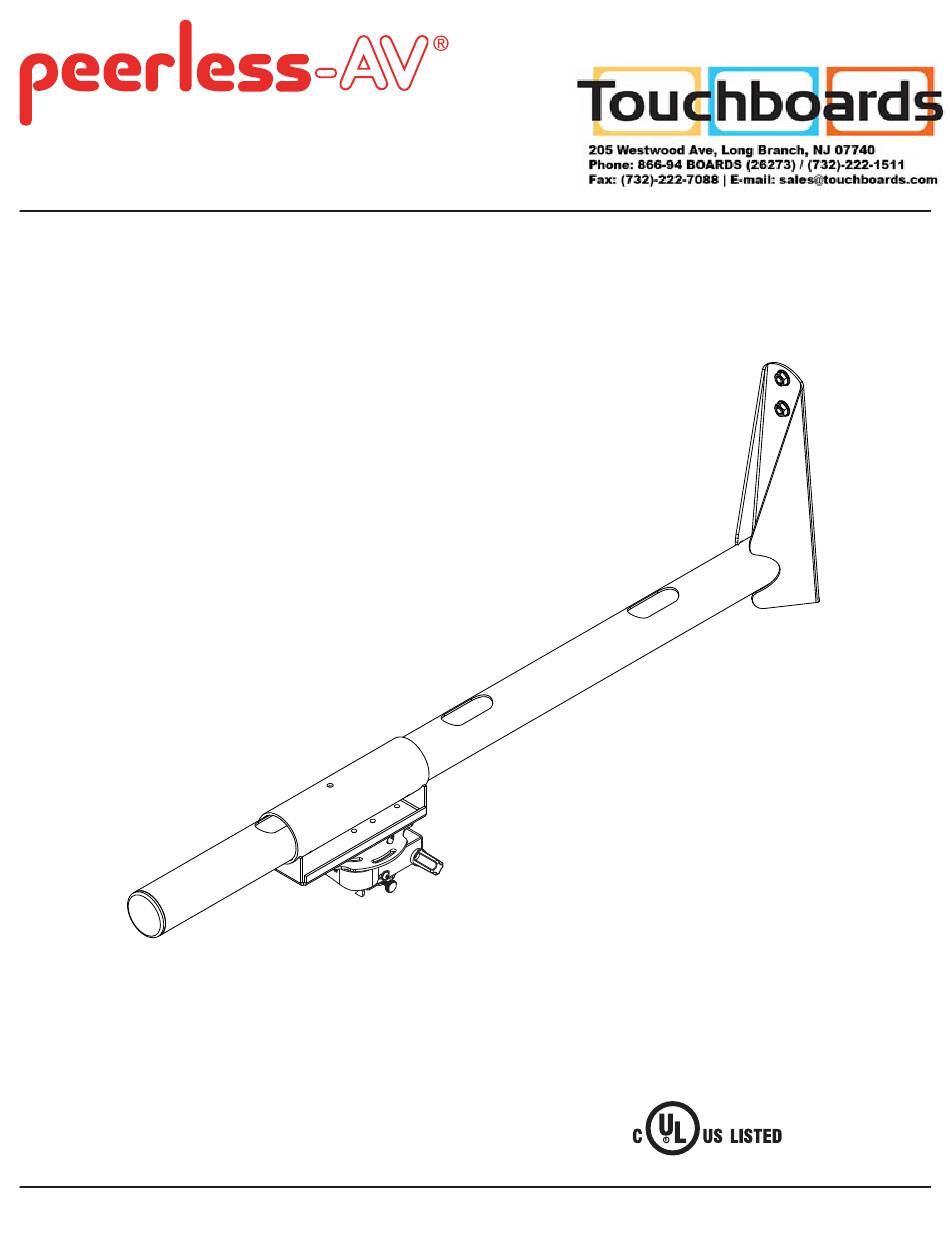

- Page 1 Installation and Assembly: Universal Projector Wall Arm Models: PSTA-028, PSTA-028-W, PSTK-028, PSTK-028-W Max UL Load Capacity: 50 lb (22.7 kg) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com ISSUED: 03-23-09 SHEET #:055-9260-8 04-25-13...
-
Page 2: Table Of Contents
Installation to Wood Stud ..............................4,6 Installation to Solid Concrete/Cinder Block ........................5,7 Assembly of Adjustment Tube ...............................8 Installing Projector Mount ..............................8 Routing Cables ..................................9 Visit the Peerless Web Site at www.peerless-av.com 2 of 9 ISSUED: 03-23-09 SHEET #:055-9260-8 04-25-13... -
Page 3: Parts List
— 520-9207 520-2047 M 5/16 - 18 serrated fl anged lock nut — — 530-1016 530-2016 NOTE: Some parts may appear slightly different than illustrated. Visit the Peerless Web Site at www.peerless-av.com 3 of 9 ISSUED: 03-23-09 SHEET #:055-9260-8 04-25-13... -
Page 4: Installation To Wood Stud
Installation to Wood Stud Walls for PSTA-028, PSTA-028-W Models WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. -
Page 5: Installation To Solid Concrete/Cinder Block
5/8", custom fasteners must be supplied by installer (not evaluated by UL). INCORRECT CORRECT concrete concrete wall wall plate plate plaster/ plaster/ dry wall dry wall Illustration A Visit the Peerless Web Site at www.peerless-av.com 5 of 9 ISSUED: 03-23-09 SHEET #:055-9260-8 04-25-13... - Page 6 (K) to wood stud using four #14 x 2-1/2" wood screws (E) as shown. Optional: Rotate wall arm 180 ° to position the arm closer to the ceiling. Visit the Peerless Web Site at www.peerless-av.com 6 of 9 ISSUED: 03-23-09 SHEET #:055-9260-8 04-25-13...
- Page 7 5/8", custom fasteners must be supplied by installer (not evaluated by UL). INCORRECT CORRECT concrete concrete wall wall plate plate plaster/ plaster/ dry wall dry wall Illustration A Visit the Peerless Web Site at www.peerless-av.com 7 of 9 ISSUED: 03-23-09 SHEET #:055-9260-8 04-25-13...
-
Page 8: Assembly Of Adjustment Tube
Installing PRGS projector mount to wall arm assembly: Attach PRGS projector mount (J) to carriage (B) using two 1/4-20 phillips screws (H) and two fl at washers (I) as shown below. Visit the Peerless Web Site at www.peerless-av.com 8 of 9... -
Page 9: Routing Cables
Note: Follow projector mount (PRGS) instructions to install projector. PROJECTOR CABLES 9 of 9 Visit the Peerless Web Site at www.peerless-av.com ISSUED: 03-23-09 SHEET #:055-9260-8 04-25-13 © 2013, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
