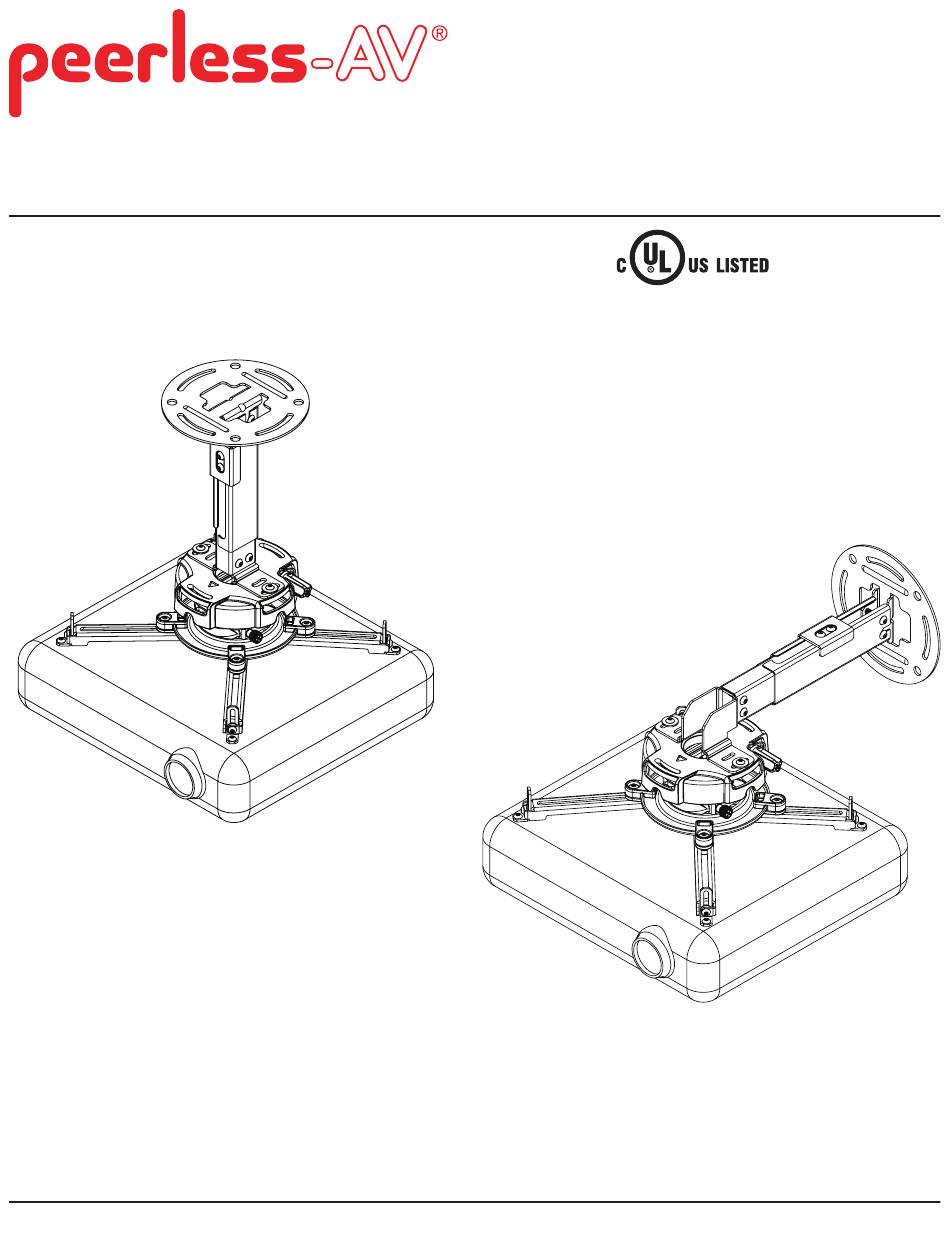

Installation and Assembly:
Projector Ceiling/Wall Mount
Models: PRG-EXA, PRG-EXA-W
PRG-EXB, PRG-EXB-W
PRG-EXC, PRG-EXC-W

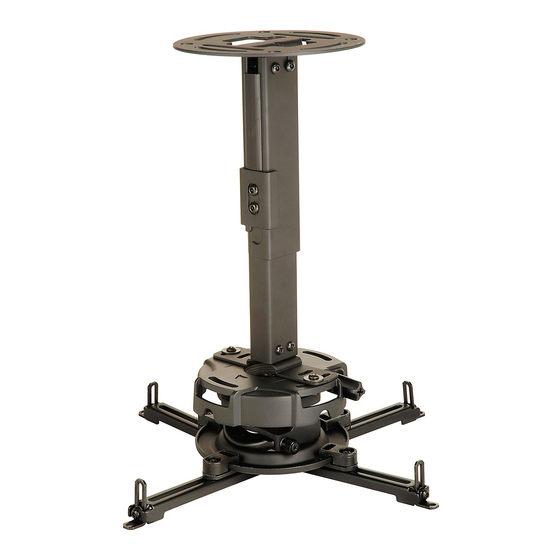

Features:
• Continuous channel design for uninterrupted drop length or wall extension adjustments
• Safety catch designed into extension to ensure user and equipment safety
• Internal cable management within channels for clean, clutter-free appearance
• Includes PRG Series projector mount for precise image alignment
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
Installed to
Ceiling
Max UL Load Capacity: 50 lb (22.68 kg)
Installed to Wall
(PRG-EXC models are not
wall mountable due to its
extensive reach)
ISSUED: 04-24-08 SHEET #: 055-9257-9 02-28-14
