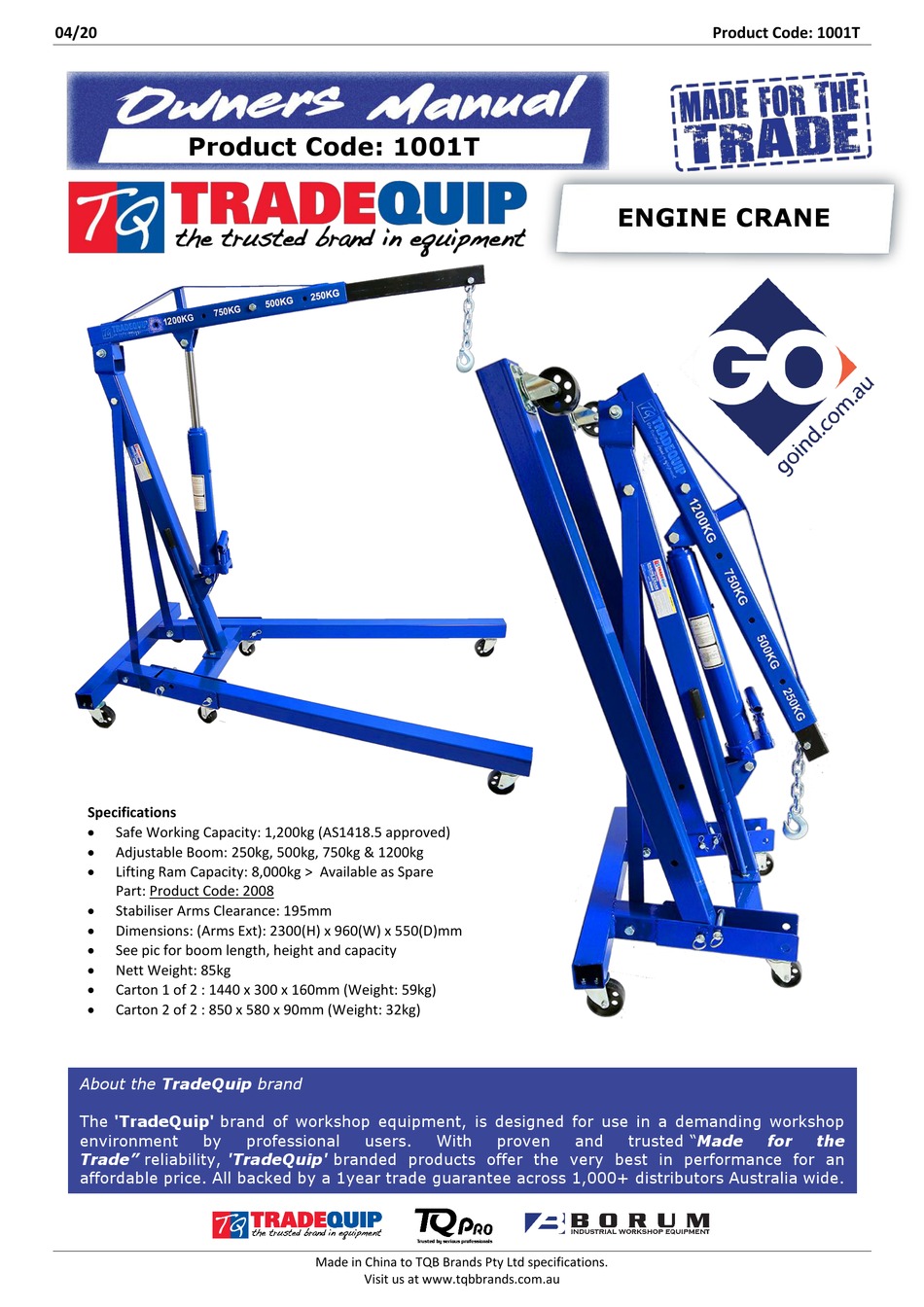

TradeQuip 1001T Owner's Manual

Hide thumbs

Advertisement

Table of Contents

04/20
Product Code: 1001T
Specifications
Safe Working Capacity: 1,200kg (AS1418.5 approved)
Adjustable Boom: 250kg, 500kg, 750kg & 1200kg
Lifting Ram Capacity: 8,000kg > Available as Spare
Part: Product Code: 2008
Stabiliser Arms Clearance: 195mm
Dimensions: (Arms Ext): 2300(H) x 960(W) x 550(D)mm
See pic for boom length, height and capacity
Nett Weight: 85kg
Carton 1 of 2 : 1440 x 300 x 160mm (Weight: 59kg)
Carton 2 of 2 : 850 x 580 x 90mm (Weight: 32kg)
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop
environment
by
Trade" reliability, 'TradeQuip' branded products offer the very best in performance for an
affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
professional
users.
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au
With
proven
and
Product Code: 1001T
ENGINE CRANE
trusted "Made
for
the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1001T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TradeQuip 1001T

Summary of Contents for TradeQuip 1001T

  • Page 1 Carton 1 of 2 : 1440 x 300 x 160mm (Weight: 59kg)  Carton 2 of 2 : 850 x 580 x 90mm (Weight: 32kg) About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users.

  • Page 2: Table Of Contents

    04/20 Product Code: 1001T WARNING INFORMATION IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE WARNING The instructions and warnings contained in this manual should be read and understood before using or operating this equipment. Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough understanding of how this equipment works.

  • Page 3: Standard Operating Procedure

    04/20 Product Code: 1001T STANDARD OPERATING PROCEDURE DO NOT use this equipment unless you have been trained and assessed to a competent level in its sate use and operation, and have been given permission to use this Wear the correct PPE...

  • Page 4: Assembly, Operation, Preventitive Maintenance

    1. FEATURES This TradeQuip hydraulic engine crane has a 8 tonne long stroke lifting ram and double acting pump with a maximum safe working load capacity of 1200kg. It is designed to quickly fold up to save space in the workshop. It is very simple to use with a single acting hydraulic pump equipped and an automatic safety valve to control the lowering speed.
  • Page 5 04/20 Product Code: 1001T Step 4  Fasten the guide plates (6) to the base frame (1) and front legs (4) with bolts (14), washers (24), and nuts (23). Lift one side of the base to align the hole on the frame to the...
  • Page 6 04/20 Product Code: 1001T Step 7  Use bolts (15), washers (24) and nut (23) to attach the boom (2) to the top of the post (3). Tighten nut (3) so that the boom (2) can rotate freely, do not over-tighten as boom needs to be able to rotate freely.
  • Page 7 Note: Before raising the legs to the storage position ensure Bolt (6), and Nut (7) is inserted into the base support and tightened to ensure the unit is stable and won't fall over. 6. MAINTENANCE Replace or repair damaged parts. Use recommended TradeQuip genuine parts only. Non authorised parts may be dangerous and will invalidate the warranty. ...

  • Page 8: Parts Diagram & Parts List

    04/20 Product Code: 1001T PARTS DIAGRAM & PARTS LIST Part # Description Part # Description Base Bolt M16x90 Boom Bolt M16x80 Main Support Post Bolt M14x100 Bolt M12x80 Lock Pin Bolt M8x20 Support Strap Bolt M8x12 Split "R" Pin Nut M16 Chain &...

  • Page 9: Troubleshooting

    04/20 Product Code: 1001T TROUBLESHOOTING TROUBLE PROBABLE CAUSE REMEDY Will not hold load. Dirt on valve seals. 1. Lower lifting boom. Close the release valve and remove the oil filler plug. 2. Place one foot on the leg and pull up the lifting boom to its full height by hand.

  • Page 10: Warranty

    WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
