11/20
Product Code: 2103T
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop
environment
by
Trade" reliability, 'TradeQuip' branded products offer the very best in performance for an
affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
Specifications:
• Safe Working Capacity: 680kgs
• Min Height: 185mm
• Max Height: 825mm
• Width:
• Length:
• Air Pressure: 0.75-0.85Mpa
professional
users.
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
710mm
2000mm
With
proven
and
Product Code: 2103T

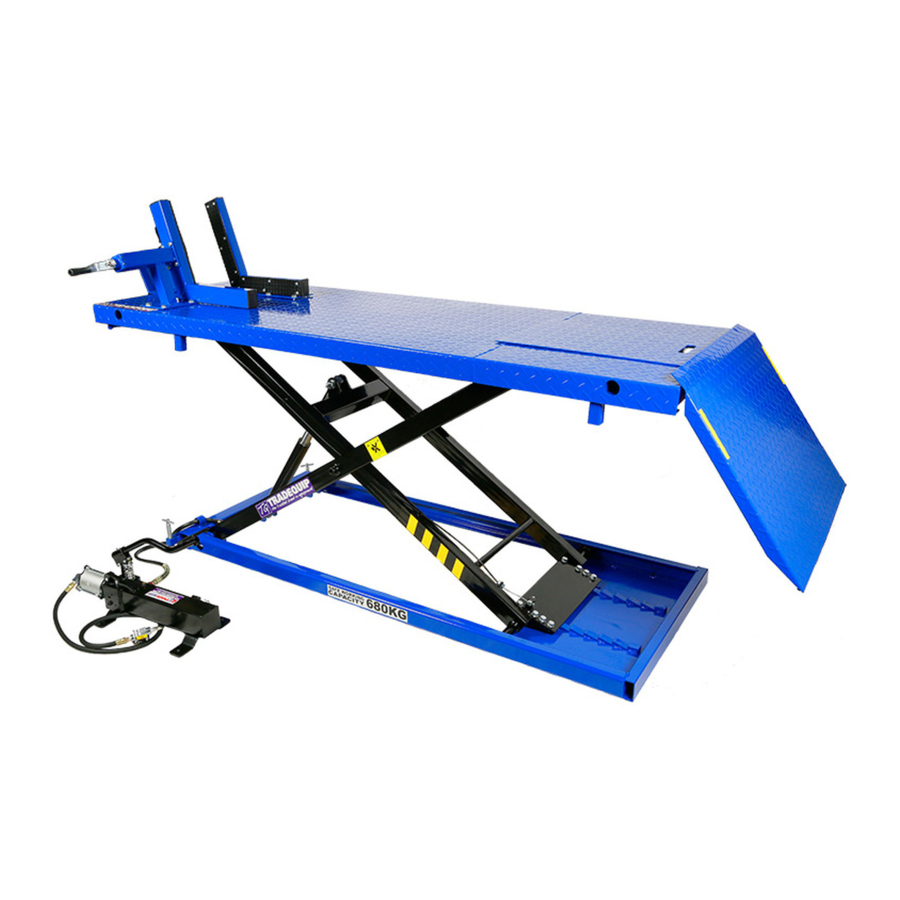

MOTORCYCLE
LIFTER
trusted "Made
for
the
Advertisement
Related Manuals for TradeQuip 2103T
Summary of Contents for TradeQuip 2103T
- Page 1 • Max Height: 825mm • Width: 710mm • Length: 2000mm • Air Pressure: 0.75-0.85Mpa About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users. With proven trusted “Made Trade” reliability, 'TradeQuip' branded products offer the very best in performance for an affordable price.
- Page 2 CONTENT ......................................2 ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE ........................4 PARTS LIST & DIAGRAM ..................................6 WARRANTY ......................................7 About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users. With proven trusted “Made...
- Page 3 11/20 Product Code: 2103T STANDARD OPERATING PROCEDURE DO NOT use this machine unless you have been trained and assessed to a competent level in its sate use and operation, and have been given permission to use this Long loose hair must be contained when operating...
- Page 4 1. FEATURES & MODELS This TradeQuip Air/Hydraulic Motorcycle Lifter has a safe working capacity of up to 680 kg. The hydraulic foot pump raises and lowers ATV/Bike while the automatic safety lock makes sure you are safe and secure the entire time. The TradeQuip Air/Hydraulic Motorcycle Lifter is complete with an extra-large removable loading ramp which is also suitable for motorcycles with kickstands.
- Page 5 11/20 Product Code: 2103T 5. INSPECTION • Prior to each use conduct a visual inspection checking for abnormal conditions, such as cracked welds, leaks, and damaged, loose, or missing parts. • The motorcycle lift shall always be maintained in accordance with the maintenance instructions. No alterations or modifications shall be made to this motorcycle lift.
- Page 6 11/20 Product Code: 2103T PARTS LIST & DIAGRAM Description Description Description Platform Bolt Movable Tube Assembly Lock Handle Fixed Tube Assembly Pneumatic/Foot Pump Ball knob Baffle Plate Flat Washer Rope Bolt Lock Washer Flat Washer Bolt Rubber Pad 1 Support Bar...
- Page 7 WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
