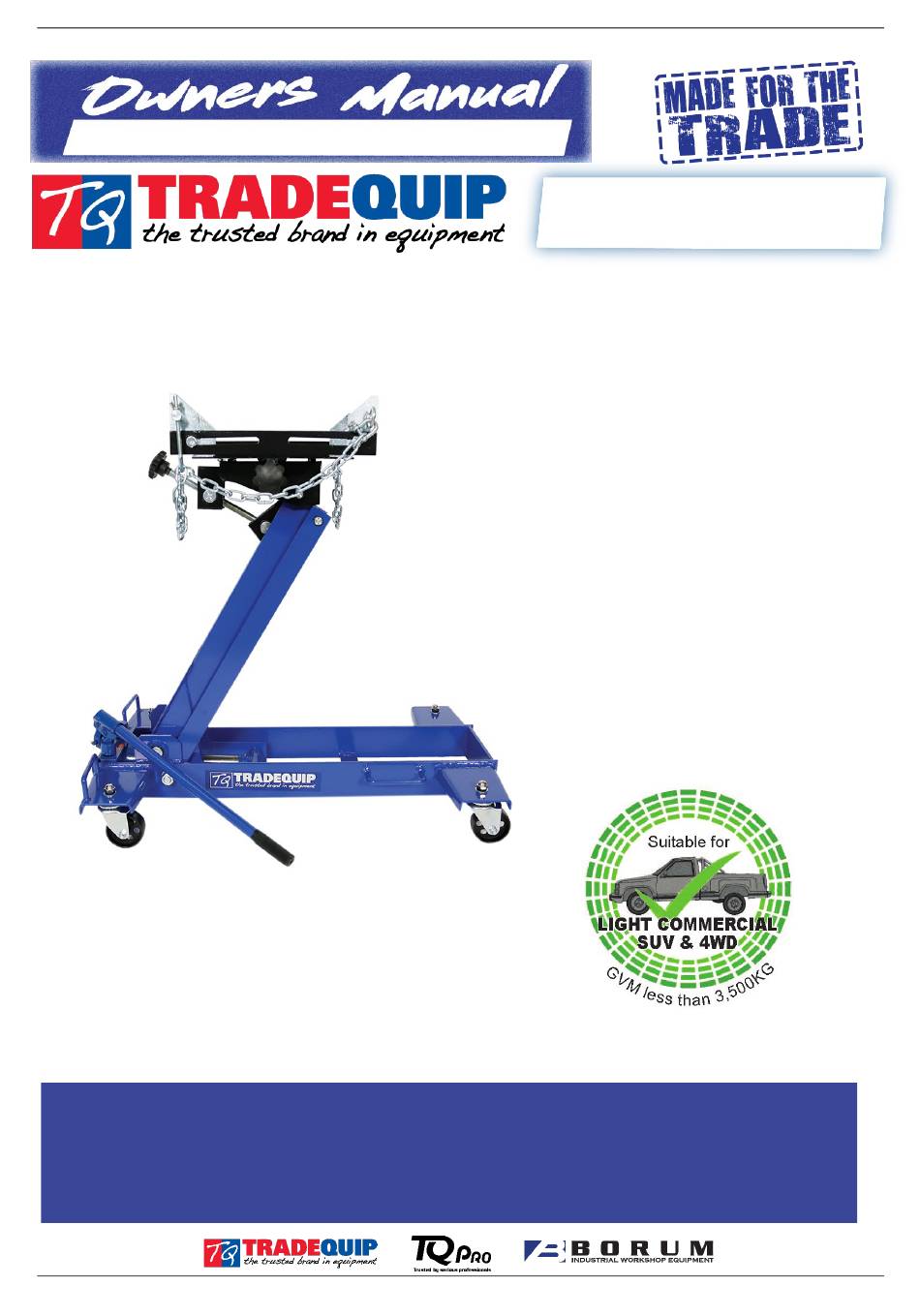

TradeQuip 2057T Owner's Manual

Transmission lifter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
June-22
Product Code: 2057T
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop
environment by professional users. With proven and trusted "Made for the
Trade" reliability, 'TradeQuip' branded products offer the very best in performance for an
affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au
TRANSMISSION
LIFTER
Specifications
• Safe Working Capacity: 1,000kg
• Maximum Height: 725mm
• Minimum Height: 205mm
• Cradle Size: 340x200mm
• Cradle Tilt Forward: 70°
• Cradle Tilt Back: 15°
• Cradle Lateral Adjustment: 90mm
• Chassis: 850(L)x490(W)x305(H)mm
• Nett Weight: 54kg
• Carton 910 x 520 x 260mm
• Gross Weight: 59.5kg
Product Code: 2057T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2057T and is the answer not in the manual?

Questions and answers

Related Manuals for TradeQuip 2057T

Summary of Contents for TradeQuip 2057T

  • Page 1 • Gross Weight: 59.5kg About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment by professional users. With proven and trusted “Made for the Trade” reliability, 'TradeQuip' branded products offer the very best in performance for an affordable price.

  • Page 2: Table Of Contents

    Product Code: 2057T June-22 WARNING IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE WARNING The instructions and warnings contained in this manual should be read and understood before using or operating this equipment. Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough understanding of how this equipment works.

  • Page 3: Standard Operating Procedure

    DO NOT expose the Transmission Lifter to rain or any other kind of inclement weather. • When servicing, use only TradeQuip identical replacement parts. Use of any other parts will void the warranty. • Use the right product for the job. There are certain applications for which this Transmission Lifter was designed. Do not modify the Transmission Lifter and do not use the Transmission Lifter for a purpose for which it was not intended.

  • Page 4: Assembly, Operation, Preventitive Maintenance

    ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES This TradeQuip "Made for the Trade” 1,000kg Hydraulic Low Profile Transmission Lifter is perfect for transmission installation and removal. Features smooth, manually operated hydraulic lifting and lowering and a 360° rotating handle for better load positioning.
  • Page 5 This Transmission Lifter should always be stored with the lift arm fully lowered in a dry location on a level surface. 5. MAINTENANCE Replace or repair damaged parts. Use recommended TradeQuip parts only. Non- authorised parts may be dangerous and will invalidate the warranty. Periodic maintenance is essential for the efficient operation of Manual Transmission lifts. Lack of lubrication can cause severe wear and or premature failure.

  • Page 6: Parts Diagram

    Product Code: 2057T June-22 Lubrication Instructions All lower lift arm pivots and pins in all linkages should be lubricated with a Light Bearing Grease or 30/40W Machine Oil to ensure long life and prevent premature wear. Wheels and Castor axles and bearing races should be lubricated with a Light Bearing Grease or 30/40W Machine Oil to ensure long life and prevent premature wear.

  • Page 7: Parts List

    Product Code: 2057T June-22 PARTS LIST Parts # Description Parts # Description Release Valve Lever Pump Washer M25x9x1.2 O Ring Oil Seal Screw M10x1x15 Steel Ball M7 O Ring M8.5x2.65 Lock Screw Oil Seal Screw M10x1x15 Steel Ball M12 Flat Washer M15x8.5x2...

  • Page 8: Troubleshooting

    Product Code: 2057T June-22 TROUBLESHOOTING Problem Symptom Cause Conclusion Solution Jack will not lift Manual pump has no Release handle valve Valve seat/check ball Re-adjust release handle using manual resistance, lift arm will pin obstructed failure position pump not raise...

  • Page 9: Warranty

    WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
