02/21
Product Code: 1055T
T
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop
environment
by
Trade" reliability, 'TradeQuip' branded products offer the very best in performance for an affordable
price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
professional
users.
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au
Specifications
• Safe Working Capacity: 50kg
• Lift Range from Roller Top to Ground: 93 ~ 1078mm
• Roller Diameter & Length: (D) 76.2 x 240mm
• Rollers Moving Distance: 125mm
• Rollers Push Force: <4kg based on 50kg load
• Lifting Handle Force: 1kg based on 50kg load
• Front Castors: 2(D) 75 x 24mm
• Rear Castor - Locking: 2(D) 75 x 24mm
• Base: 876(L) x 720(W) x 101.6(H)mm
• Weight: 51.25kg
With
proven
and

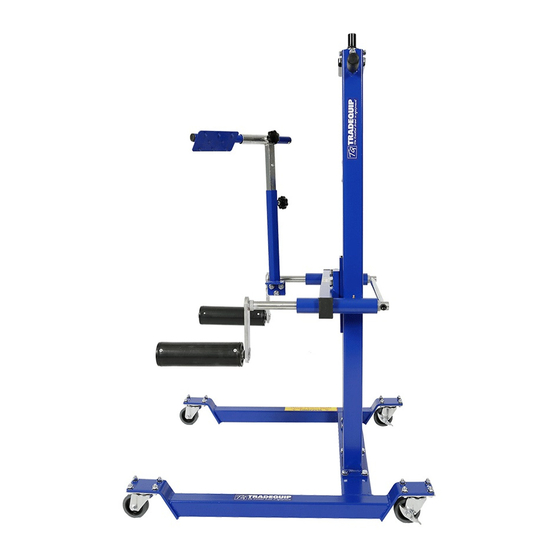

Product Code: 1055T
WHEEL/TYRE
LIFTER
trusted "Made
for
the
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TradeQuip 1055T
Summary of Contents for TradeQuip 1055T
- Page 1 • Rear Castor - Locking: 2(D) 75 x 24mm • Base: 876(L) x 720(W) x 101.6(H)mm • Weight: 51.25kg About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users.
- Page 2 02/21 Product Code: 1055T WARNING INFORMATION IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE WARNING The instructions and warnings contained in this manual should be read and understood before using or operating this equipment. Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough understanding of how this equipment works.
- Page 3 02/21 Product Code: 1055T STANDARD OPERATING PROCEDURE DO NOT use this machine unless you have been trained and assessed to a competent level in its sate use and operation, and have been given permission to use this Long loose hair must be contained when operating...
- Page 4 1. FEATURES The TradeQuip "Made for the Trade" Wheel/Tyre Lifter is characterized by a pair of laterally spaced lifting arms that raise and lower in unison and are so, arranged as to contact the vehicle tyre at two areas on its circumference to raise or lower a wheel/tyre combination for the purpose of removing, transporting, and replacing wheel and tyre combinations.
- Page 5 02/21 Product Code: 1055T 4. OPERATION PLEASE REFER TO THE EXPLODED VIEW DRAWING IN THIS MANUAL IN ORDER TO IDENTIFY PARTS. Removing a Wheel/Tyre Assembly Raising and lowering of the lifter is accomplished by engaging the ½” drive tool with the ½” drive socket at the top of the (#5) main upright assembly or the side of the #1 gear box assembly if installed.
- Page 6 Product Code: 1055T 5. STORAGE This TradeQuip wheel/tyre lifter should always be stored under cover in a dry location and on a level surface. 6. MAINTENANCE Replace or repair damaged parts. Use recommended TradeQuip genuine parts only. Non authorised parts may be dangerous and will invalidate the warranty.
- Page 7 02/21 Product Code: 1055T PARTS LIST & DIAGRAM Part # Description Part # Description Gear Box Assembly (optional-not included) Socket for Tyre hold Screw (M8x25) (optional-not included) Lift Arm Assembly Lock Washer (8) Screw (M10x20) Washer (8) Screw (M10x35) Main Upright Assembly...
- Page 8 WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
