Summary of Contents for ATD Tools SPI-77111

  • Page 1 User’s Manual SPI-77111...

  • Page 2: Table Of Contents

    Contents Toggle Switch Setup.........................1 Choose the toggle switch setup..................1 1.1. Where to find the toggle (DIP) switches?..............2 1.2. Set the toggle switch according to A/C cable connection way........3 1.3. Dashboard Removal........................5 Kit Contents..........................6 Cable Connection Chart.....................6 3.1. Power Cable Connection....................8 3.2.

  • Page 3: Toggle Switch Setup

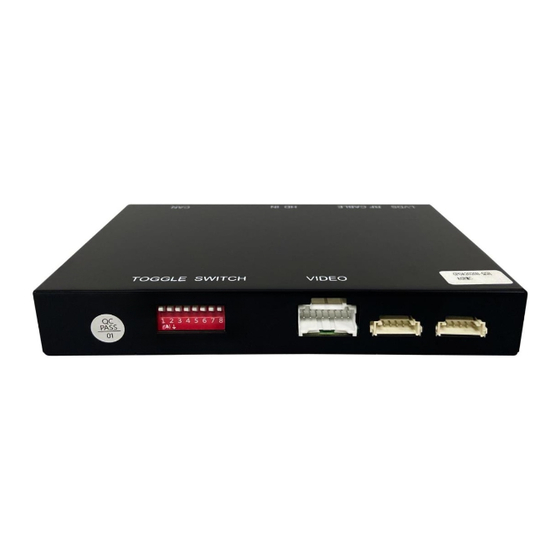

    1. Toggle Switch Setup 1.1 Choose the toggle switch setup according to the year of the car and the MMI system of the car. Car year MMI picture system 2012-2018 (A6 with 6.5” monitor) 1.2 Where to find the toggle (DIP) switches? 1 / 23...
  • Page 4 Steps for change the toggle switch Step 1 : power off the engine Step 2 : change the toggle switch according the toggle switch dial setup chart Step 3 : unplug and reconnect the CAN power cable Step 4 : power on the engine 2 / 23...

  • Page 5: Set The Toggle Switch According To A/C Cable Connection Way

    1.3 Set the toggle switch according to A/C cable connection way 1.3.1 For High Speed CAN (Priority） C-CP High Speed CAN connect to A-Air Conditioner CAN Tips: 1. Pin 7: with OEM parking sensor Off / 0, No OEM parking sensor On /1 2.
  • Page 6 Note: Attempt the High Speed CAN method first. However, if you encounter a black or flashing screen, please then attempt the below Low CAN method. Black screen when switch to CarPlay function Flash screen in OEM function 1.3.2 For Low Speed CAN C-CP Low Speed CAN connect to A-Air Conditioner CAN 4 / 23...

  • Page 7: Dashboard Removal

    Tips: 1. Pin 7: with OEM parking sensor Off / 0, No OEM parking sensor On /1 2. Pin 8: with OEM Bluetooth Off / 0, No OEM Bluetooth On /1 2. Dashboard Removal Please scan QR code, view the detail via YouTube video on dashboard removal guidance. For A4 A5 A6 A7 5 / 23...

  • Page 8: Kit Contents

    3. Kit Contents 3.1 Cables & Accessories 3.2 Cable connection chart 6 / 23...
  • Page 9 Please follow the connection chart accurately (detailed instructions below). After the cables are all connected, you will be able to switch between the original Audi and the CarPlay interfaces by long pressing the “MEDIA” button on the MMI controller. 7 / 23...

  • Page 10: Power Cable Connection

    3.3 Head Unit power cable connection Unplug the OEM original power cable from the head unit and reconnect it to the new cable harness. Then plug the new cable into the head unit. 3.3 A/C controller power cable connection 8 / 23...
  • Page 11 9 / 23...
  • Page 12 3.4 LVDS cable connection Where to find the LVDS port? The LVDS port is different for different OEM head unit host. 10 / 23...

  • Page 13: Lvds Cable Connection

    LVDS cable connection 1 ) New LVDS cable 1 goes to the LVDS port of OEM the head unit. 2 ) New LVDS cable 2 goes to the original LVDS cable. Note: Connecting the LVDS cables incorrectly will result in a black screen! 11 / 23...

  • Page 14: Microphone Cable Connection

    3.5 Microphone cable connection 3.5.1 for Cars without original OEM Microphone If your car doesn’t have a factory Mic, you can use the aftermarket Mic. But the code NO.8 of toggle switch need to be set as “on” status. 12 / 23...

  • Page 15: Wifi Antenna And Usb-Av Cable Connection

    Aftermarket mic should be installed close to the driver position. 3.6 WiFi antenna and USB-AV cable connection 13 / 23...
  • Page 16 Tips: A) The WiFi antenna cannot be placed close to metal objects. (The WiFi signal will lost if WiFi antenna is close to the metal objects.) B) The USB port in the USB-AV cable is used for software updates. 14 / 23...

  • Page 17: Ami Audio Cable Connection

    3.7 AMI audio cable connection (only for Audi cars with AMI function) If your car has an AMI port, you need to connect the AMI cable to your car AMI port, so that the sound from the CarPlay function will work via the car’s AMI AUX function. Where to find the AMI port? in the glove-box in the glove-box...

  • Page 18: Where To Put The Carplay Box

    3.8 Where to put the CarPlay box? The CarPlay interface decoder box should be installed in an appropriate space near, or on, the OEM head unit. Or in the glove box. on the OEM head unit Beside the OEM head unit In the glove box In the glove box 16 / 23...

  • Page 19: Carplay Sound Setup

    4. CarPlay Decoder Sound Setup 4.1 Bluetooth settings If your phone already has a Bluetooth connection to your car, disconnect it. 4.2 Set AUX Before using the CarPlay system, you need to set the sound input on your OEM interface to “AUX”, otherwise the CarPlay /Android Auto system will have sound! On the original Audi System, navigate to the “Media“...

  • Page 20: Set Ami

    4.3 Set AMI (only for Audi cars with AMI function) If your car has AMI port, after connect the AMI cable to your car AMI port, you need to set the “Media” into “AMI” After finish the AUX or the AMI setting, long press “MEDIA” button from MMI knob controller, you can switch the system between the original Audi system and the CarPlay system.
  • Page 21 CarPlay Decoder main interface 19 / 23...

  • Page 22: Reverse And Front Cameras

    5. Reverse and Front Cameras 5.1 Original OEM camera Enter the “Setup” menu from the decoder main menu, choose “Reverse”, then make sure the “Reverse Camera” option is set to “Original”. Make sure that the following three options are all set to “off”. 5.2 Aftermarket camera Aftermarket rear view camera cable connection 20 / 23...

  • Page 23: Settings For Aftermarket Reverse Camera And Front Cameras

    Aftermarket front view camera cable connection 5.3 Settings for aftermarket reverse camera and front cameras After the aftermarket camera cables are connected, you need to check the camera settings (click the “Setup” button from the decoder main menu). “Reverse” camera settings: choose “Reverse”, from the menu and set the reverse camera to “Aftermarket”.

  • Page 24: Faq

    6. FAQ 1. Why is there no sound during the call? Solution: Disconnect the Bluetooth between your phone and your car. 2. Why is there no sound during CarPlay function? Solution: Check the car, if the car has AMI port, AMI cable needs to be connected to the original AMI port.

  • Page 25: Contact Us

    7 Contact Us Please contact us via purchase platform if you need any help. Tip: before contacting us, please help us to collect the following information. 1. the order ID 2. the car model 3. the year of the car 4.
