  • Page 1 SPI-77200 BMW/Mini CIC...

  • Page 2: Table Of Contents

    Contents Toggle Switch Setup........................1 Dashboard Removal......................... 5 Cables Connection........................6 3.1. Cable Accessories.....................6 3.2. Cable Connection Chart....................7 3.3. Power Cable Connection....................8 3.4. LVDS Cable Connection....................10 3.5. iDrve CAN Cable Connection..................11 3.6. WiFi Antenna and USB-AV Cable Connection..............14 3.7. Microphone Cable Connection..................14 3.8.

  • Page 3: Toggle Switch Setup

    1. Toggle Switch Setup 1.1 Choose the toggle switch setup by the size of your car’s screen Car Model 6.5 inch screen 8.8 & 10.2 inch screen 1 Series 5 & 7 Series 3 & 5 Series 6 Series 1 / 27...
  • Page 4 X5/X6 2 / 27...
  • Page 5 MINI CIC 3 / 27...
  • Page 6 1.2 Where to find the toggle switch? Choose the toggle switch setup by the size of your car’s screen. 4 / 27...

  • Page 7: Dashboard Removal

    2. Dashboard Removal Please scan QR code, view the detail via YouTube video on dashboard removal guidance. For 3/5/7 Series For 1/3/6 Series For X1/X3/X5/X6 Series For MINI 5 / 27...

  • Page 8: Cables Connection

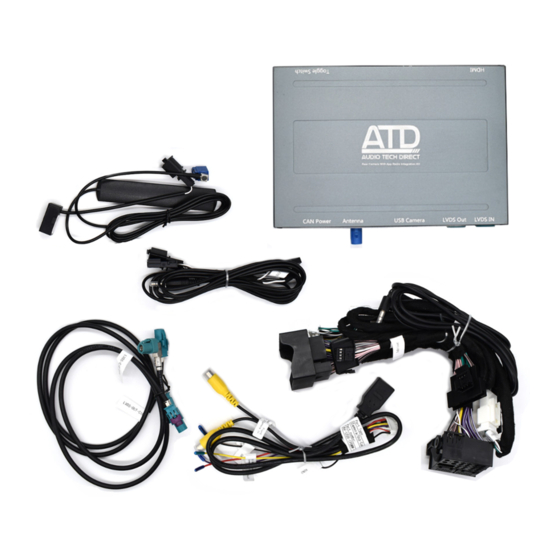

    3. Cables Connection 3.1 Cables accessories 6 / 27...

  • Page 9: Cable Connection Chart

    3.2 Cable connection chart 7 / 27...

  • Page 10: Power Cable Connection

    After cable connection, by long press “MENU” or “BACK” button from iDrive knob, you can switch the system between the original CIC system and the CarPlay system. 3.3 Power cable connection 1 ) Connect the new cable harness to the OEM original power cable and the head unit. 2 ) If your car has fiber optic cable, you need to move the original fiber optic cable to the new harness.
  • Page 11 9 / 27...

  • Page 12: Lvds Cable Connection

    3.4 LVDS cable connection 1) New LVDS cable (LVDS-CIC) connect to the head unit “LVDS IN” of the CarPlay box. 2) New LVDS cable (LVDS-OUT-CIC) connect to original LVDS cable and the “LVDS OUT” of the CarPlay box. Note: Wrong LVDS cables connections will cause black or red screen. 10 / 27...

  • Page 13: Idrve Can Cable Connection

    3.5 iDrive CAN cable connection Carplay CAN All OUT connect to CP CAN ALL IN CP low Speed Can connect to iDrive CAN 3) Unplug the original iDrive power cable from the iDrive and reconnect it to the new iDrive CAN harness. Then plug the new cable into the iDrive.
  • Page 14 12 / 27...
  • Page 15 Number 4 and 5 connectors are for the big iDrive Number 2 and 3 connectors are for the small iDrive and MINI iDrive 13 / 27...

  • Page 16: Wifi Antenna And Usb-Av Cable Connection

    MINI iDrive WiFi antenna and USB-AV cable connection Tip : A) The WiFi antenna cannot be placed close to metal objects. (The WiFi signal will lost if WiFi antenna is close to the metal objects.) B) The USB port in the USB-AV cable is used for software updates. Microphone cable connection 3.7.1 for Cars with original Microphone If your car is with original Microphone function, you need to use our Microphone extend cable and...
  • Page 17 15 / 27...
  • Page 18 Please scan the QR code, directly enter into YouTube video demo on how to connect the Microphone extend cable to the factory OEM Microphone. 16 / 27...
  • Page 19 3.7.2 for Cars without original OEM Microphone If your car doesn’t have factory Mic, you can use the aftermarket Mic. But the code NO.7 of toggle switch need to be set as “on” status. Aftermarket mic should be installed close to the driver position. 17 / 27...

  • Page 20: Where To Put The Decoder Box

    3.8 The CarPlay interface decoder box should be put behind the head unit host or on the OEM head unit. on the OEM head unit Beside the OEM head unit In the glove box In the glove box 18 / 27...

  • Page 21: Problem About Red Screen, Black Screen, Half-Screen, Flash Screen

    3.9 Problem with red screen, black screen, half-screen, flashing screen: Please contact us for the correct toggle switch setup code and the correct lvds and iDrive CAN cable connection if you meet problems as in the follow chart Red screen Black screen Half-screen Flash screen...

  • Page 22: Sound Setup

    4. CarPlay Decoder Sound Setup 4.1 Disconnect the Bluetooth between your phone and your car. 4.2 Before set the sound, you need to connect the decoder’s EXT-AUX cable to your car AUX port. 4.3 Set AUX Before using the CarPlay system, you need to set AUX, the CarPlay system will have sound. 1) Enter into the “Multimedia”...
  • Page 23 2) Click the “AUX front” 3) Keep original NBT system into “AUX front” 4) Long press “MENU” or “BACK” button from iDrive knob to switch into the decoder menu. 21 / 27...
  • Page 24 Please scan the QR code, view the detail via our YouTube video on sound setting guidance. CarPlay Decoder main interface 22 / 27...

  • Page 25: Reverse Camera And Front Camera

    5. Reverse Camera and Front Camera 5.1 Original camera setting Original OEM rear view camera function setting: click the “Setting” button from the decoder main menu, choose “Reverse”, then set the reverse camera into “Original”. the “Reverse line detect”, the “Reverse display track” and the “Reverse display radar” are set to “off”. 5.2 Aftermarket rear view camera cable connection 5.3 Aftermarket front view camera cable connection 23 / 27...

  • Page 26: After Market Front Camera Cable Connection

    5.4 Setting for aftermarket reverse camera and front camera After finishing the aftermarket camera cables connection, you need to set the camera. Rear view camera setting: click the “Setting” button from the decoder main menu, choose “Reverse”, then set the reverse camera into “Aftermarket”. the “Reverse line detect”, the “Reverse display track”...

  • Page 27: Faq

    6. FAQ Questions 1: No sound during the call Solution: Disconnect the Bluetooth between your phone and your car. Questions 2: Echo sound during the call Solution: in the Audio setting, set the “Mic Echo PreConfig” into “5i”, then restart the engine. Questions 3: Siri function activation Solution:...
  • Page 28 If the steering wheel control buttons (voice control button, Tel button, voice “+” and “-“ buttons) don’t work, you need to set “ Enable Wheel Key” into “On” in the setting. 26 / 27...

  • Page 29: Contact Us

    7. Contact Us Please contact us via purchase platform if you need any help. Tip: before contacting us, please help us to collect the following information. 1. the order ID 2. the car model 3. the year of the car 4.
