Summary of Contents for Matsusada Precision eK-FGJ Series

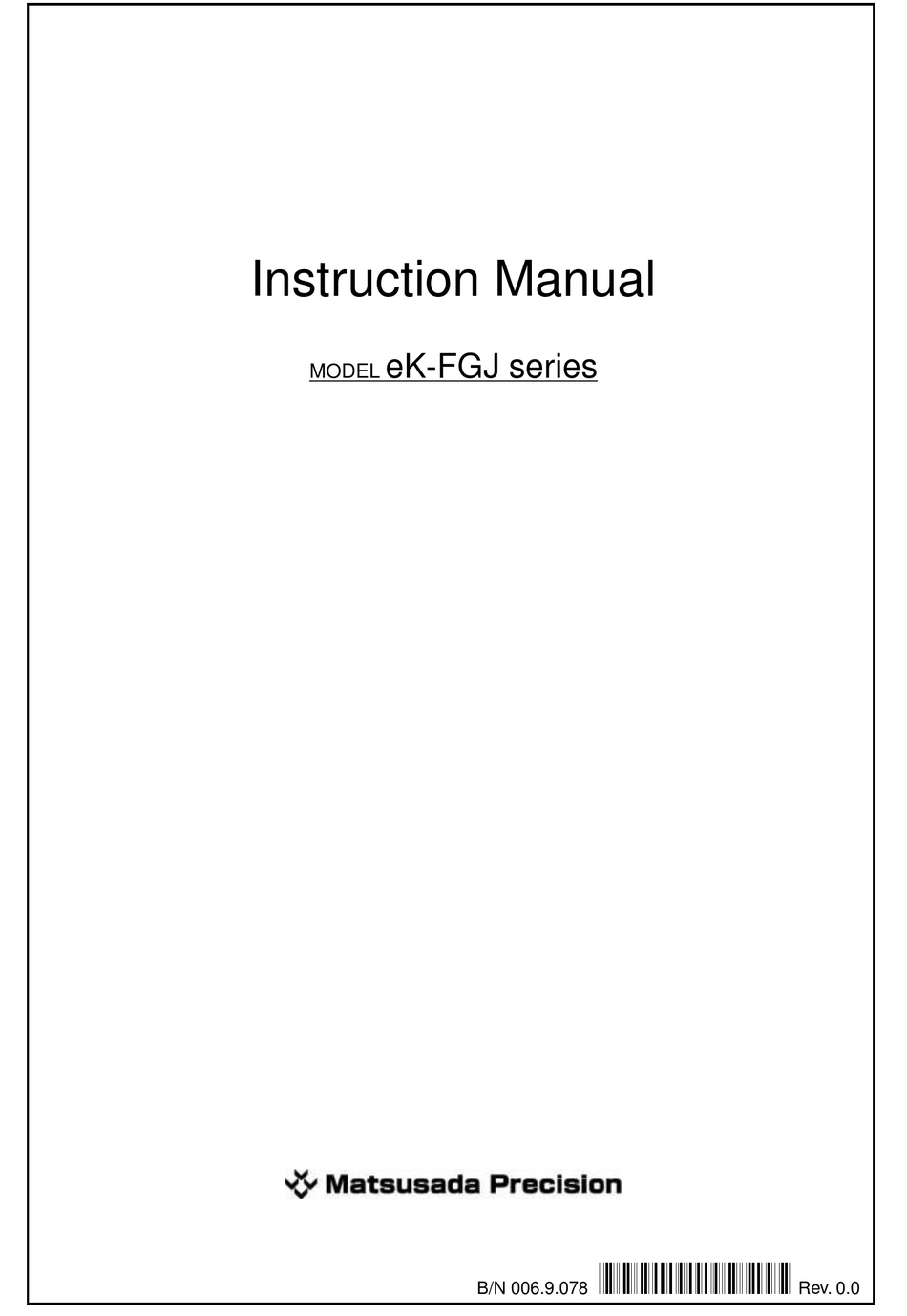

- Page 1 Instruction Manual eK-FGJ series MODEL *006.9.078* B/N 006.9.078 Rev. 0.0...
- Page 2 Trademarks ◆ Company names and product names in this document are the trademarks or registered trademarks of their respective companies.
- Page 3 Matsusada Precision...
- Page 5 Indicates that it must be performed Bistable push button switch on order demonstrate performance of the product. Protective earth terminal (ground terminal electric shock Bistable push button switch off prevention) Ground terminal Alternative Current Matsusada Precision eK-FGJ series...
- Page 6 If the product does not have a fuse holder externally, the user cannot replace the fuse. If the fuse blows out, do not open the case or panel. Please contact our sales representative. ◆ Do not modify or damage the cable. It may cause electric shock and fire. Matsusada Precision eK-FGJ series...
- Page 7 There is a capacitor at the terminal, and it is particularly dangerous to touch it immediately after turning off the power supply. Be careful of the electric charge of these capacitors and connect it to earth to discharge it completely. Remove input line (AC line) during work. Matsusada Precision eK-FGJ series...
- Page 8 For replacement, please contact our sales office (replacement require separate repair charges). Do not exchange fans with other users because there is a danger of electric shock, etc. Matsusada Precision eK-FGJ series...
-
Page 9: Table Of Contents
Selection of channel ............................12 Setting Rate ................................15 6. Others..................................16 Sweep ................................... 16 Sequence ..................................17 N Cycle Output ................................ 18 7. LGob Option ................................19 Setting Up Master Control Device (LGob option) ..................19 Matsusada Precision eK-FGJ series... -
Page 11: Outline And Features
Off-set voltage: －10.00 to +10.00 V (＠1 kΩ=RL) Start phase: 0 to 359° Output waveform: Sine wave, triangular wave, square wave, DC, arbitrary wave (It is necessary to transfer the waveform data on arbitrary waves using the control software.) • Weight: approx. 1.8kg eK-FGJ Matsusada Precision series... -
Page 12: Explanation Of Appearance
MEM key switch ⑥ UP direction key switch ⑦ MODE key switch ⑧ LEFT direction key switch ⑨ ENTER key switch ⑩ RIGHT direction key switch ⑪ Channel control key switch ⑫ DOWN direction key switch ⑬ eK-FGJ series Matsusada Precision... -
Page 13: Rear Panel
2. Explanation of Appearance Rear Panel ② ① ① AC Input Connector (Inlet) ② USB interface ③ ④ ⑤ ① ③ UNIT number setting switch ④ Optical fiber cable connector IN ⑤ Optical fiber cable connector OUT eK-FGJ Matsusada Precision series... -
Page 14: Dimensions
2. Explanation of Appearance Dimensions Unit: mm eK-FGJ series Matsusada Precision... -
Page 15: Installation And Connection
Because the screw holes are weak and mounting screws may come into contact with the internal Prohibited board. Connecting AC Input Cable Securely attach the AC input cable to the inlet on the rear panel of the unit. eK-FGJ Matsusada Precision series... -
Page 16: Functions
9. ENTER key switch Confirms the Mem.Recall or the Mem.Store function on the memory function screen. 10. Channel control key switch Selects channel 1 or 2 to display parameters. 11. Numerical value setting encoder Selects options or numerical values. eK-FGJ series Matsusada Precision... -
Page 17: Output
In addition, the parameters for each setting in the remove and local modes are saved separately in memory. Those set in the local mode are not inherited to the remote mode. eK-FGJ Matsusada Precision series... -
Page 18: Operation Procedures
This product can be operated either with the front panel (local mode) or with the control software installed on the PC (remote mode). Display Detail Selection of channel Current rate value Waveform Frequency Amplitude DC offset Phase Symmetry Sweep [Monitor screen] eK-FGJ series Matsusada Precision... -
Page 19: Basic Operating And Setup Procedures
Move the cursor (▶ ) to "Function" using the UP (DOWN) direction keys (↑,↓). Set the waveform you want (from among sine, square, ramp, DC or arbitrary) using the LEFT (RIGHT) direction keys (←,→) or the encoder. * The change selected is immediately reflected on the output. eK-FGJ Matsusada Precision series... -
Page 20: Setting Frequency
1. Move the cursor (▶ ) to "Offset" using the UP (DOWN) direction keys (↑,↓). 2. Move the blinking cursor part with the LEFT (RIGHT) direction keys (←,→) and set the DC offset with the encoder. * The change selected is immediately reflected on the output. eK-FGJ series Matsusada Precision... -
Page 21: Setting Start Phase
* The change selected is immediately reflected on the output. * Note that the amplitude may attenuated if the symmetry is set to not more than 10% or not less than 90% when the frequency setting is 100 kHz or more. eK-FGJ Matsusada Precision series... -
Page 22: Selection Of Channel
1. Move the cursor (▶ ) to "CH1" or "CH2” using the UP (DOWN) direction keys (↑,↓). 2. Select the channel you want to use using the LEFT (RIGHT) direction keys (←,→) or the encoder. [CH1 screen] [CH2 screen] eK-FGJ series Matsusada Precision... - Page 23 The screen is changed over as follows by pressing the MEM key switch. Screen for reading from the memory The setting value stored in memory with that memory number displayed. Screen for storing in the memory currently value displayed. Setting screen eK-FGJ Matsusada Precision series...
- Page 24 Select the memory number you want to store data on the Mem.Store screen, using the numerical value setting encoder. Memory number Press and hold the ENTER key switch for one second or longer to store the set values in the memory with the selected number. eK-FGJ series Matsusada Precision...
-
Page 25: Setting Rate
When the Rate is set to 10.00, the setting range for amplitude voltage and off-set voltage are as follows: Amplitude 0.1 to 200.0 Vp-p Offset -100.0 to +100.0 V Note: The range of output voltage from the eK-FGJ does not change. eK-FGJ Matsusada Precision series... -
Page 26: Others
The above actions need to be controlled from the eK-FGJ/eK-FG2 control software on the PC in the remote mode. The Sweep function is not available in the local mode. Sweep action setting Start value Stop value Sweep time eK-FGJ series Matsusada Precision... -
Page 27: Sequence
Off-set voltage value in the step being executed Offset Set Offset mode of the step being executed Const: Fixed off-set voltage value, Sweep Symmetry Symmetry in the step being executed (This item is not displayed when a not-supported waveform is selected.) eK-FGJ Matsusada Precision series... -
Page 28: N Cycle Output
This function needs to be controlled from the eK-FGJ/eK-FG2 control software on the PC in the remote mode. This function is not available in the local mode. This function is only available in Ch 1. If Ch2 operated simultaneously, it will automatically stop outputting when Ch 1 is stopped. eK-FGJ series Matsusada Precision... -
Page 29: Lgob Option
CO-U32, and CO-E32 Our various power supply models ― LGob option ek-FGJ-LGob option NOTE Make sure that the settings are changed when the power is off as they are read when the power is turned on. eK-FGJ Matsusada Precision series... - Page 30 Revision History Rev. No. Rev. Date Revised contents 2020/09 First edition...
