- Page 1 Instruction Manual eK-FG2 MODEL Rev. 0.2 F-RA-001-3R3...
- Page 2 ◆ No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of Matsusada Precision. ◆ No patent liability is assumed with respect to the use of the information contained herein.
-
Page 3: For Safe Use Of The Product
Bistable push button switch for preventing electric shock) Indicates the possible danger of death if Bistable push button switch you drink it and burns or blindness if it attaches. Indicates the possible danger of exposure Alternative Current to radiation. eK-FG2... - Page 4 ◆ Do not process or damage power cables It may result in electric shock or fire. ◆ Regarding the input voltage Check the page describing the input terminals and input voltage in the instruction manual. Do not provide any voltage out of the specifications. eK-FG2...
- Page 5 In order to avoid electric shock, ground the terminals to discharge using a short-circuit grounding apparatus and check the voltage again. The terminals here mean all terminals like input and output terminals and terminals for communications and remote controls. eK-FG2...
- Page 6 It requires to be replaced at regular intervals to extend the lifetime. For the replacement, contact us. (It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of electric shock.) eK-FG2...
-
Page 7: Table Of Contents
3-1 General Information ..........................5 3-2 Initial Inspection ............................5 3-3 Installation Conditions ..........................5 3-4 Setting Up Control Software ........................5 Functions ............................... 6 4-1 Front Panel Description ..........................6 4-2 Arbitrary Waveform Creation ........................6 Operation Procedures ........................... 7 eK-FG2... -
Page 9: Features And Specifications
In addition, by setting the rate according to the output value of Matsusada amplifier power sources, the eK-FG2 allows simple settings of the amplitude voltage and offset voltages with no calculations as to the output voltage from the power supply. -

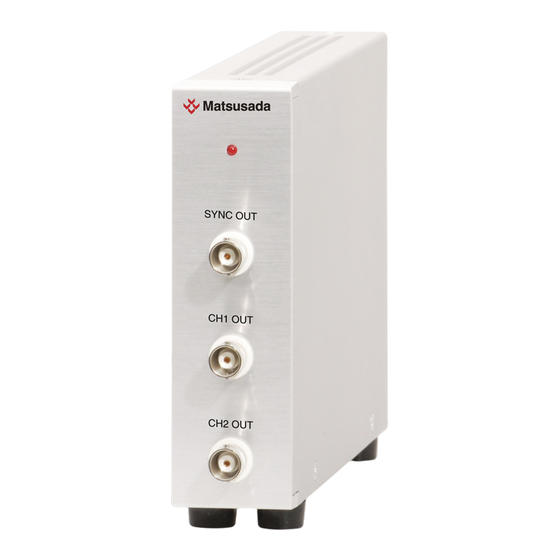

Page 10: External Appearance
2 External Appearance External Appearance 2-1 Front Panel OUTPUT SYNC OUT CH1 OUT CH2 OUT eK-FG2 OUTPUT LED SYNC OUT CH1 OUT CH2 OUT eK-FG2... -
Page 11: Rear Panel
2 External Appearance 2-2 Rear Panel (1) DC voltage input terminal (2) USB port (3) Frame GND connection terminal (M4) (Use for connecting the power supply frame GND) eK-FG2... -
Page 12: Dimensions
2 External Appearance 2-3 Dimensions Unit: mm eK-FG2... -
Page 13: Installation And Connection
3-4 Setting Up Control Software 1. Read the Control Software Instruction Manual of eK-FG2 and install the supplied software and the Matsusada Precision USB driver. 2. Connect the computer to the power supply unit using a USB cable. -
Page 14: Functions
*The common of each signal is connected to the frame GND inside the unit. 4-2 Arbitrary Waveform Creation Using the arbitrary waveform data creation via eK-FGJ/eK-FG2 control software, it is available as the output waveform.. Select "Arbitrary" in the control software for outputting. -
Page 15: Operation Procedures
Operation Procedures The product can be operated by the control software installed on a computer. For details on eK-FGJ/eK-FG2 Control Software installation and usage, refer to the Instruction Manual for eK-FGJ/eK-FG2 control software. The following features are available in eK-FGJ/eK-FG2 control software. - Page 16 5 Operation Procedures ・ Sweep The eK-FG2 can perform the following actions: ・ Frequency sweep ・ Amplitude sweep ・ DC offset sweep ・ Sequence program The product has sequential programming operation capable of independent 2-channel signal output. In the sequence program, composite sweeps are available by selecting multiple sweeps.
- Page 18 Revision History Rev. No. Rev. Date Revision Contents 2023/05 First edition...
