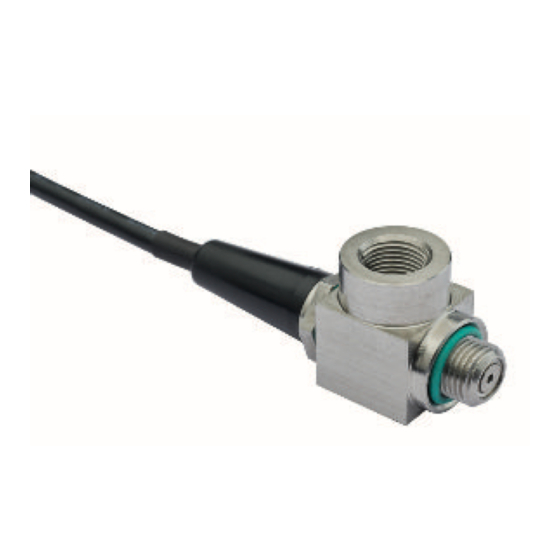

- Page 1 OPERATING INSTRUCTIONS Translation of the Original HIPACE NEO Sealing gas valve...
- Page 2 These operating instructions describe all models and variants of your product. Note that your product may not be equipped with all features described in this document. Pfeiffer Vacuum constantly adapts its products to the latest state of the art without prior notice. Please take into account that online operating instructions can deviate from the printed operating instructions supplied with your product.
-
Page 3: Table Of Contents
Table of contents Table of contents About this manual Validity 1.1.1 Applicable documents 1.1.2 Variants Target group Conventions 1.3.1 Instructions in the text 1.3.2 Pictographs 1.3.3 Labeling on the product 1.3.4 Abbreviations Safety General safety information Safety precautions Proper use Foreseeable improper use Personnel qualification Product description... -
Page 4: About This Manual
Keep the manual for future consultation. 1.1 Validity These operating instructions are a customer document of Pfeiffer Vacuum. The operating instructions describe the functions of the named product and provide the most important information for the safe use of the device. The description is written in accordance with the valid directives. The information in these operating instructions refers to the product's current development status. -
Page 5: Labeling On The Product
About this manual Note 1.3.3 Labeling on the product This section describes all existing labeling on the product along with its meaning. Rating plate (example) The rating plate is laser-marked on the bottom side of the housing. D-35614 Asslar Mod. Sealing gas valve 24 V DC, G1/8 PM Z01 350 Made in Germany JJJJ/MM... -
Page 6: Safety
Safety 2 Safety 2.1 General safety information The following 4 risk levels and 1 information level are taken into account in this document. DANGER Immediately pending danger Indicates an immediately pending danger that will result in death or serious injury if not observed. ►... -
Page 7: Proper Use
Safety 2.3 Proper use ► Use the sealing gas valve for the intake of inert gases only with designated Pfeiffer Vacuum turbo- pumps with integrated sealing gas throttle (option). ► Use the sealing gas valve to protect against the ingress of corrosive media. -
Page 8: Product Description
Product description 3 Product description 3.1 Function The use of sealing gas serves to protect the vacuum pump in dusty processes or with excessive gas throughputs. Sealing gas prevents the ingress of damaging substances into the motor and bearing area. The integrated sealing gas throttle of the turbopump determines the flow rate. Fig. -
Page 9: Installation And Operation
Depending on the operating status, this may damage or even de- stroy the turbopump. ► Use the Pfeiffer Vacuum sealing gas valve with AccessLink only in conjunction with the integrat- ed sealing gas throttle. -
Page 10: Operating Sealing Gas Valve
► Plug the control cable of the sealing gas valve into one of the two accessory connections "C1" or "D1" on the pump bottom part. – Make sure that the Pfeiffer Vacuum logo on the power supply plug is facing up. – The electronic drive unit software automatically resets existing configuration settings to "de- fault"... -
Page 11: Recycling And Disposal
● Help to reduce the wastage of natural resources. ● Prevent contamination. Pfeiffer Vacuum products contain materials that you must recycle. ► Observe the special precautionary measures when disposing of: – Fluoroelastomers (FKM) –... -
Page 12: Accessories, Technical Data And Dimensions
Accessories, technical data and dimensions 6 Accessories, technical data and dimensions 6.1 Accessories Description Order number Push-in fitting for 6 mm tube, G 1/8" PM 016 781 -T Push-in fitting for 8 mm tube, G 1/8" PM 016 782 -T Filter element| silencer 1/8" thread P 0988 060 Tbl. -
Page 13: Eu Declaration Of Conformity
This declaration of conformity has been issued under the sole responsibility of the manufac- turer. Declaration for product(s) of the type: Sealing gas valve Turbopumps HiPace Neo We hereby declare that the listed product satisfies all relevant provisions of the following European Directives. Electromagnetic compatibility 2014/30/EU... -
Page 14: Declaration Of Conformity
EN IEC 61000-3-3: 2013 EN IEC 61326-1: 2021 The manufacturer's authorized representative in the United Kingdom and the authorized agent for compiling the technical documentation is Pfeiffer Vacuum Ltd, 16 Plover Close, In- terchange Park, MK169PS Newport Pagnell. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43... - Page 15 15/16...
