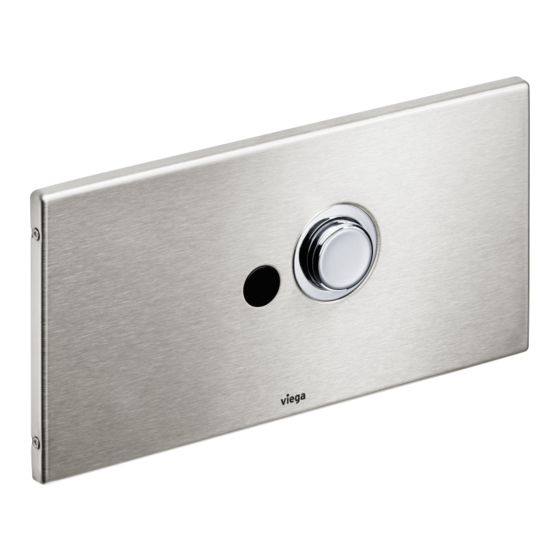

- Page 1 Instructions for Use Flush plate Visign for Public 5 for concealed cistern 2H Model Year built (from) 8326.16 10/2012...
-
Page 2: Table Of Contents
3.2.5 Connecting external sensors 3.3 Commissioning 3.3.1 Setting the infrared sensor 3.3.2 Setting the flush 3.3.3 Setting the Viega Hygiene function 3.4 Faults, faults and remedy 3.5 Care and maintenance 3.5.1 Care tips 3.5.2 Replacing the battery 3.6 Disposal Flush plate Visign for Public 5... -
Page 3: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 4: About This Translated Version
About these instructions for use This symbol gives additional information and hints. About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. -
Page 5: Product Information
Product information Product information Standards and regulations The following standards and regulations apply to Germany / Europe and are provided as a support feature. Regulations from section: Fields of application / Mounting conditions Scope / Notice Regulations applicable in Ger‐ many Protection area for installation of VDE 0100-701... -
Page 6: Intended Use
Only the large flush volume can be actuated with elec‐ tronic actuation. Viega Hygiene function Flushes can be actuated at certain times via the Viega Hygiene function to prevent stagnation in the potable water pipelines. Suitable cisterns The flush plate is intended for touchless flush actuation of flushes on Viega concealed cisterns. -
Page 7: Product Description
Product information Product description 2.4.1 Overview Fig. 1: Scope of delivery Flush plate Holder for control (for cistern 2H) Holder for control (for cistern 1F) Control Mains adapter 230 V Holder for motor (for cistern 1F) Drive unit Cable tie Holder for battery compartment 10 Bowden cable unit 11 Fixing panel for motor (for cistern 2H) - Page 8 Product information Flush volume The large flush volume is always used when flushing is actuated man‐ ually using the plate. The flush volume is 6–9 litres. Depending on the setting ( Ä ‘Settings for the infrared sensor’ on page 14), the infrared sensor automatically selects between the small or large flush volume.
-
Page 9: Operating Mode
Product information 2.4.3 Operating mode Electronic actuation of a flush Fig. 2: Actuation of the flush via an external sensor A signal is sent to control the flush actuation through an external sensor, e. g. a button or photo sensor. Fig. - Page 10 Product information Fig. 5: The water flows into WC via the open drain valve As long as the drain valve is open, the set flush volume will flow into the Flush plate Visign for Public 5...
- Page 11 Stagnation can lead to the build up of germs (e.g. legionella) in potable water pipes. It is important to rinse the pipeline regularly to prevent the build up of bacteria. The Viega Hygiene function was developed for this reason. Flushes can be actuated at certain times with the Viega Hygiene func‐...
-
Page 12: System Expansions
Product information 2.4.4 System expansions The system's range of functions can be expanded through the connec‐ tion of accessories onto the control. Redundant power supply Fig. 6: Connection of the redundant power supply To create a redundant power supply with an additional battery compart‐ ment as shown, you will need the following accessories: The battery compartment can be connected for a redundant power supply using the adapter model 8355.91. - Page 13 Product information Additional external sensors Fig. 7: Connection of an external button One requires the following accessories to be able to connect an addi‐ tional external sensor as shown: With the extension cable adapter model 8350.36, an additional sensor can be connected to the infrared sensor. Additionally required: 1 connection cable sensitive.
-
Page 14: Setting Options
Product information Additional radio controlled actuation Fig. 8: Connection of radio controlled actuation One requires the following accessories to be able to connect the infrared sensor alongside a radio controlled actuation as shown: With the extension cable adapter model 8350.36, an additional sensor can be connected to the infrared sensor. - Page 15 4.5 litre flush volume (the flushes are always with the smallest flush volume of 6 l) for technical reasons 6 litre flush volume (factory setting) 9 litre flush volume Interval (Viega Hygiene function) The following settings are possible: Hygiene function deactivated (factory setting) Hygiene flush 24 hours after the last use...
-
Page 16: Accessories
Product information Accessories Optional accessories Installation set The set model 8350.14 contains a hollow wall socket to house the mains adapter and an conduit pipe with the right clip to connect the cis‐ tern (2H, 1F and Standard 2S). Extension cable 2 metre cable model 8352.690 for the extension of the power supply to a maximum of 4.75 metres in length. -
Page 17: Handling
Handling Handling Assembly information 3.1.1 Mounting conditions The model may only be used for the models mentioned in Ä Chapter 2.3.1 ‘Areas of application’ on page 6. Installation position of the power pack The power pack should be mounted in an easily accessible place to allow subsequent access. -
Page 18: Required Material And Tools
Ä ‘Regulations from section: Fields of application / Mounting conditions’ on page 5. Viega recommends installing the power pack outside of the protected zones 0–2. External sensors (optional) If external sensors are to be connected to the control, their connection cables or empty pipes must be laid in the cistern before tiling is begun. -
Page 19: Assembly
Handling Assembly 3.2.1 Mounting the power pack DANGER! Danger due to electrical current An electric shock can lead to burns and serious injury and even death. Only allow electrical work to be carried out by qualified electricians. Always de-energise the connection cable before work is commenced. -
Page 20: Preparing The Installation
Handling 3.2.2 Preparing the installation Requirements: The cistern is fitted into the pre-wall. If external sensors are to be connected, the cables must be laid through to the cistern. The electrical connection is laid all the way into the cistern. The pre-wall is tiled. - Page 21 Handling ▶ Cut the corners of the revision shaft vertically through to the wall surface. ▶ Bend out and pull down the sides of the revision shaft. The edge of the revisions shaft must be flush with the wall surface. ▶...
- Page 22 Handling ▶ Turn the mechanism's lock by 90° in an anti-clockwise direction. The mechanism is unlocked and can be removed. ▷ ▶ Remove and keep mechanism. INFO! Only with the cistern 2H. ▶ Remove and keep spacer. Flush plate Visign for Public 5...
-
Page 23: Mounting The Flush Actuation (Cistern 2H)
Handling 3.2.3 Mounting the flush actuation (cistern 2H) Requirements: The inspection shaft is shortened in such a way that it is flush with the upper edge of the tiles. Mechanism and spacer are removed. ▶ Close corner valve. ▶ Loosen flexible hose on the filling valve (size 19). ▶... - Page 24 Handling Mounting the drive unit ▶ Lead the panel into the cistern at an angle. ▶ Align the right side of the holding panel with the shaft frame of the cistern. The hook on the right side of the holding panel must be positioned on the projection of the shaft frame.
- Page 25 Handling ▶ Push the drive unit onto the holding panel. The drive unit must be secure in the guiding rail. ▶ Push the Bowden cable unit onto the drain valve from the left. The Bowden cable unit must be felt to click into place on the drain valve.
- Page 26 Handling Mounting the holder for control ▶ Position the holder on the domes. ▶ Push rubber plugs onto the dome to secure the holder. Flush plate Visign for Public 5...
- Page 27 Handling Connecting the control Observation of the prescribed connection sequence is required. The power supply must always be connected last, to ensure that all of the connected components func‐ tion. INFO! Mounting is much easier if the plug is inserted into the control outside of the cistern.
- Page 28 Handling ▶ Insert the control into the bracket in the cistern. ▶ Fit the cable into the upper part of the cistern and fix with the cable ties supplied. The cable must not obstruct any moving parts in the cistern. Flush plate Visign for Public 5...
- Page 29 Handling Connecting the water supply pipe ▶ Connect the flexible hose to the filling valve. ▶ Open corner valve. ▶ Insert spacer. Flush plate Visign for Public 5...
- Page 30 Handling Mounting the battery compartment (optional) ▶ Push the holder for the battery compartment onto the spacer from the left. ▶ Push the battery compartment through the large opening into the holder. ▶ Push the battery compartment into the smaller opening. The battery compartment must be clicked into place directly behind the cover in the holder.
- Page 31 Handling Mounting the mechanism ▶ Hang the mechanism in the bow of the drain valve. ▶ Insert the mechanism. The mechanism must sit exactly in the recesses of the cistern. ▶ Turn the mechanism's lock by 90° in a clockwise direction. The mechanism is locked.
-
Page 32: Mounting The Flush Plate
Handling 3.2.4 Mounting the flush plate Requirements: The flush actuation has been mounted. The battery compartment has also been mounted. The control has been connected and set. ▶ Insert the threaded bolts left and right into the holders. The threaded anchors must be positioned to the top and bottom. ▶... - Page 33 ▶ Set the length of the actuating rod with the template supplied. The tip of the rod must lie 2 mm behind the basic panel. Fig. 11: WC flush plates, 8326.16, shorten actuating rod ▶ Remove the installation frame from the flush plate.
-
Page 34: Connecting External Sensors
Handling ▶ Mount flush plate. ▶ Secure the flush plates from the right and left hand side using two screws on each side. 3.2.5 Connecting external sensors NOTICE! Damage to property due to excess voltage If you apply voltage to the connection cable for the external button, you will damage the control. -
Page 35: Commissioning
Handling Commissioning 3.3.1 Setting the infrared sensor Programming block Programming the control can be carried out for 30 minutes after the supply voltage is applied. The control returns to normal operation after 30 minutes – programming is now blocked. If the settings have to be changed after this time, the control must be disconnected from the power supply for at least 10 seconds. - Page 36 Handling ▶ Remove hand to enable setting. The following values can be set by removing the hand: Remove hand after Setting 1st blinking signal long range set to small cov‐ erage 2nd blinking signal long range set to medium cov‐ erage (factory setting) 3rd blinking signal long range set to large cov‐...
-
Page 37: Setting The Flush
Handling 3.3.2 Setting the flush Setting the flush volume Requirements: The revision shaft is open and the control can be accessed. The programming lock of the control is not active Ä ‘Programming block’ on page 35. The programming set is available. ▶... - Page 38 Handling ▶ Hold the magnetic key over the programming contact. In the following, signals sound to show which setting is active. ▷ ▶ Remove magnetic key to enable setting. The following values can be set by removing the magnetic key: Remove magnetic key after Setting 1st acoustic signal...
-
Page 39: Setting The Viega Hygiene Function
Setting the Viega Hygiene function The Viega Hygiene function of the flushing is deactivated when deliv‐ ered. If you wish to use the Viega Hygiene function, you must program the following settings. The flush volume for the Viega Hygiene function can only be selected if the Viega Hygiene function has been previ‐... - Page 40 Remove the magnetic pin to enable setting. The following values can be set by removing the magnetic pin: Remove magnetic pin after Setting 8th acoustic signal Viega Hygiene function: flush volume 6 l (factory setting if Viega Hygiene function is active) 9th acoustic signal...
- Page 41 Remove the cable of the programming contact. ▶ Place a protective cap onto the contact. Viega Hygiene function – Setting flush volume Requirements: The inspection shaft is open and the control can be accessed. The programming lock of the control is not active Ä...
- Page 42 Handling The programming set is available. The interval is set. ▶ Remove the protective cap of the programming connection from the control. ▶ Connect the cable from the programming contact onto the control. ▶ Hold the magnetic pin in front of the programming contact. ▷...
- Page 43 Handling ▶ Remove the magnetic pin to enable setting. The following values can be set by removing the magnetic pin: Remove magnetic pin after Setting 4th acoustic signal Hygiene flushing function: OFF (factory setting) 5th acoustic signal Hygiene flushing performed 24 hours after the last flushing 6th acoustic signal Hygiene flushing performed...
-
Page 44: Faults, Faults And Remedy
Handling Faults, faults and remedy Error Cause Remedy WC does not flush Power supply failure Actuate manual flush Cistern is not yet completely full Wait until the cistern is sufficiently full No water in cistern, corner valve is Open corner valve closed Control defect Replace control... -
Page 45: Replacing The Battery
Handling 3.5.2 Replacing the battery Cistern 2H Only for use of a battery compartment for redundant power supply. Requirements: Free access to the cistern can be gained through the revision shaft. ▶ Remove the screws on the right and left hand side. ▶... - Page 46 Handling ▶ Turn the mechanism's lock by 90° in an anti-clockwise direction. The mechanism is unlocked and can be removed. ▷ ▶ Remove the mechanism. ▶ Remove battery compartment from the holder. Press the battery compartment back into the fixture and pull it to the right.
- Page 47 Handling ▶ Insert new battery and close battery compartment. ▶ Push the battery compartment through the large opening into the holder. ▶ Push the holder into the smaller opening. The battery compartment must be clicked into place directly behind the cover in the holder. ▶...
-
Page 48: Disposal
Handling ▶ Hang the mechanism in the bow of the drain valve. ▶ Mount flush plate according to manual Ä Chapter 3.2.4 ‘Mounting the flush plate’ on page 32. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. - Page 49 Viega GmbH & Co. KG service-technik@viega.de viega.com INT • 2023-01 • VPN220323...
