LAUNCH

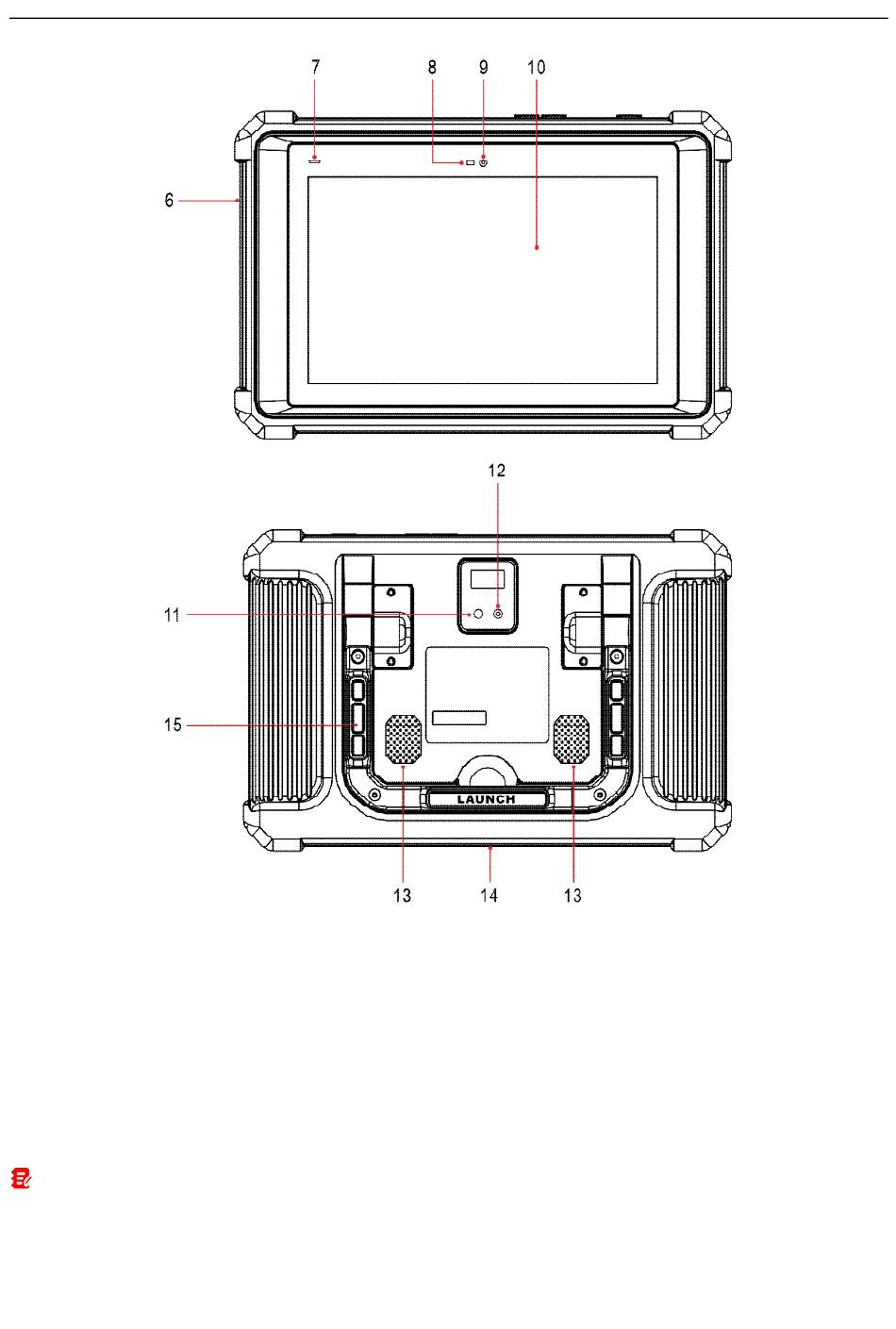

1. Memory Card Slot
Insert a memory card for storage extension.
2. Data I/O Port
• Connect it to the SmartLink C V2.0 device to perform vehicle diagnosis.
• Connect it to the add-on module to extend the functions of the diagnostic tablet.
3. Charging Port
Charge the tablet via the power adaptor.
4. Volume Buttons
Adjust the volume.
Note: Press and hold [POWER] and [VOL -] key to capture the current screenshot.
5. Power/Screen Lock Button
To turn the tablet on/off with long press, or lock the screen with short press.
6. Microphone
3
