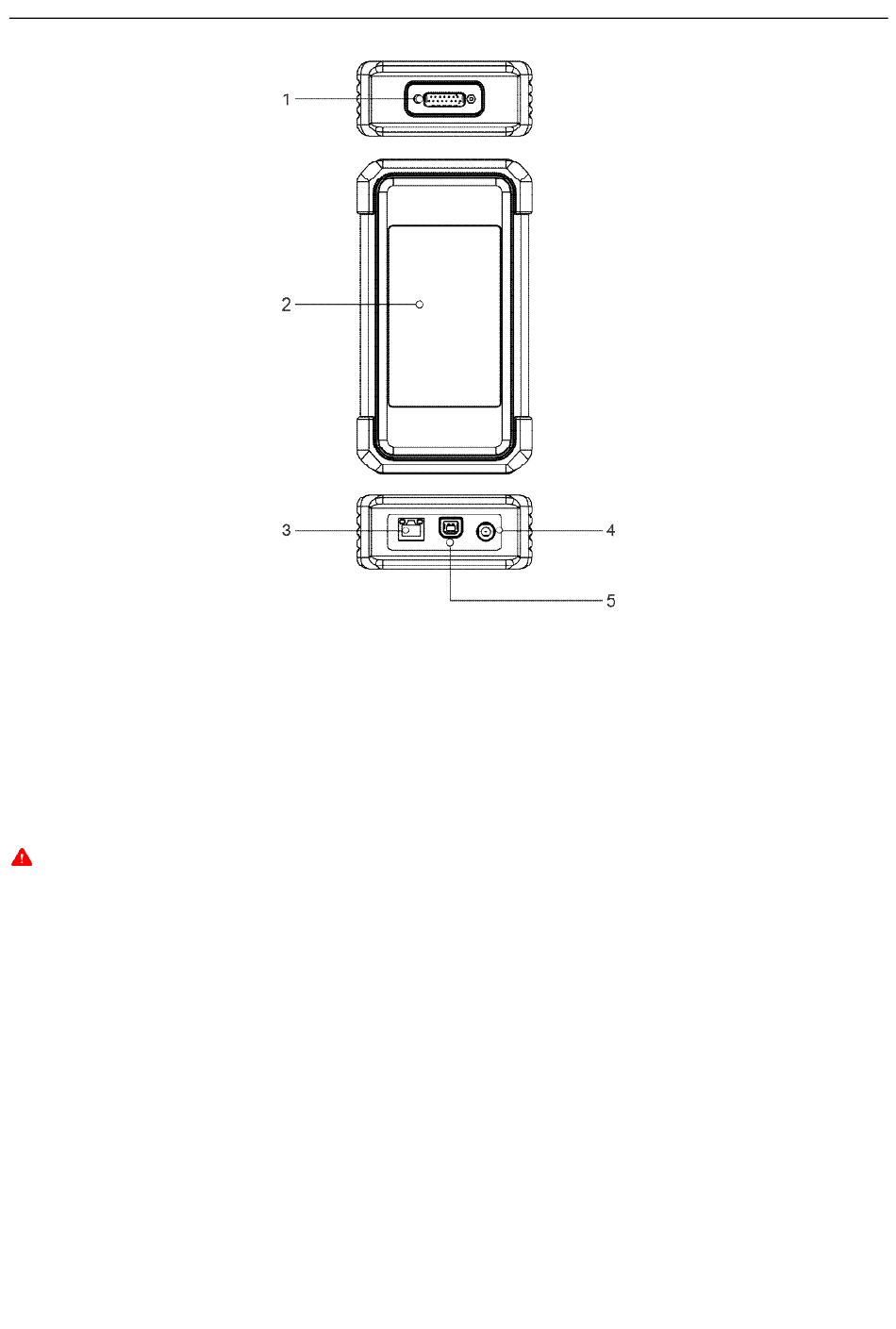

1. DB-15 diagnostic connector
Connect it to the vehicle's DLC (Data Link Connector) port via the diagnostic cable.
2. Touch screen
3. LAN/WAN port
Connect it to the modem via the crossover cable. It only applies to the SmartLink Super Remote Diagnostics.
4. DC-IN power jack
It can obtain power via connecting the diagnostic cable to the vehicle's DLC port or connecting to an external DC power
supply.
Warning: It is prohibited to connect this power jack to an external DC power supply when the SmartLink C V2.0 device is
properly connected to the vehicle's DLC port.
No responsibility can be assumed for any damage or loss caused as a result of not strictly following the warning.
5. Data I/O port
• Connect it to the tablet to perform vehicle diagnosis.
• Connect it to the PC to perform J2534 reprogramming when as a J2534 PassThru device.
1.3.3 Docking station
The docking station is used to charge the diagnostic tablet.
