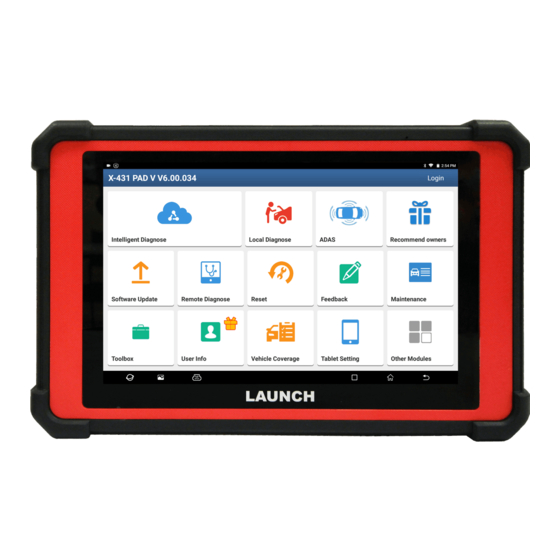

LAUNCH TECH X-431 PAD V Manual

Hide thumbs Also See for X-431 PAD V:
Table of Contents

Advertisement

Quick Links

Download this manual
Version: V1.00.000
Revised date: Feb-27-2018
LAUNCH owns the complete intellectual property rights for the software used by this product. For any reverse engineering or cracking actions against the software,
LAUNCH will block the use of this product and reserve the right to pursue their legal liabilities.
