Summary of Contents for real living FP-P-2202
-
Page 2: Maintenance

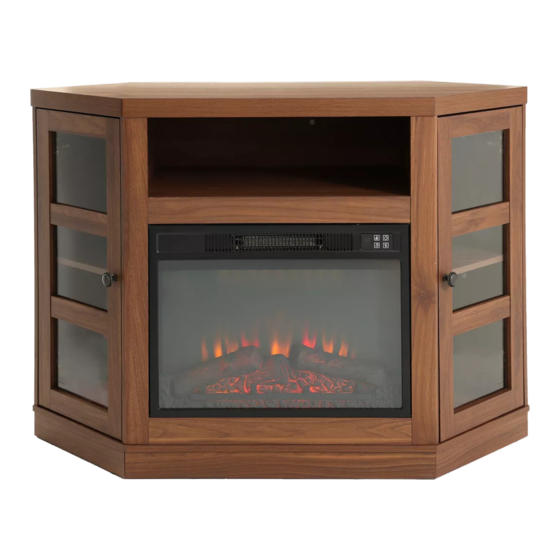

GENERAL BEST PRACTICES FOR ASSEMBLY Read all instructions before starting Clear a flat covered space to begin We recommend 2 adults for assembly Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its number in the package Helpful hints provided along the way WARNINGS... - Page 3 CAUTION This Fireplace (FP-P-2202) is designed for flat panel LCD TVs weighing up to 60 lbs. For items other than flat panel LCD TVs, this fireplace will support up to 135 lbs when the item is placed evenly on the top surface. Use with other products may results in instability causing possible injury.
-
Page 4: Part List
PART LIST BASE FRAME A MIDDLE SHELF BASE BASE FRAME B BASE FRAME E BASE FRAME C BASE FRAME D 2PCS 2PCS 2PCS BASE FRAME F SIDE PANEL PARTITION FRONT POST 2PCS 2PCS 2PCS BACK POST SMALL SHELF DOOR BACK PANEL 2PCS INSERT FIREPLACE INSERT STAND A... -
Page 5: Hardware List
HARDWARE LIST 55pcs 55pcs 47pcs 2pcs CAM BOLT CAM LOCK WOOD DOWEL KNOB 3pcs 9pcs 5pcs 2pcs BOLT ROUND HEAD SCREW ROUND HEAD SCREW DOOR BLOCK 9pcs 4pcs 25pcs SHELF PIN DOOR HINGE FLAT HEAD SCREW TOUCH-UP PEN 17pcs 1set STICKER ANTI-TIPPING NOT PROVIDED... -
Page 6: Helpful Hints
HELPFUL HINTS RING SHOULD TOUCH THE BOARD Screw the cam bolt into the predrilled panel. The cam bolt should be tightened so no threads are visible. The larger ring of the cam should touch the panel. Insert the cam lock into the predrilled hole in the panel. Arrow faces the outside of the panel. - Page 7 STEP 1 Place Top (A) on a soft smooth surface. The side with the most holes should be facing up. Insert the Cam bolt (H1) into the corresponding hole of Top (A) using the screwdriver (Not provided). Align the Door block (H8) with the pre-drilled pilot holes in the Top (A) and attach with Round head screw (H7) using screwdriver (Not provided) as shown in figure 1.
- Page 8 STEP 3 Place Base frame D (G), Base frame C (F) on a soft smooth surface with the holes facing up. Insert the Cam bolt (H1) into the corresponding hole of Base frame D (G), Base frame C (F) using the screwdriver (Not provided) as shown in figure 3.
- Page 9 STEP 5 Place Base (C) on a soft smooth surface as shown in figure 5. Align the corresponding holes of Base frame C (F), Base frame D (G), Base frame E (H) and Base frame F (I) with the Cam Bolts (H1) and Wood dowels (H3) of Base (C) and slide into place.
- Page 10 STEP 7 Align the corresponding holes of Insert stand A (Q) with the Cam Bolts (H1) and Wood dowels (H3) of Base (C) and slide into place. Secure the panels together with Cam lock (H2) using screwdriver (Not provided) as shown in figure 7. Figure 7 2pcs Not provided...
- Page 11 STEP 9 With assistance from another adult, hold Middle shelf (B) and Partition (K) vertically as shown in figure 9. Insert Wood dowels (H3) into the corresponding holes of Middle shelf (B) as shown in figure 9. Slide the Cam bolts (H1) of Partition (K) into the corresponding holes of Middle shelf (B) and secure in place with Cam lock (H2) using screwdriver (Not provided).
- Page 12 STEP 11 Insert the Cam Bolts (H1) of Front post (L) into the corresponding holes of Partition (K) and secure in place using Cam lock (H2) as shown in figure 11. Note:Make sure the top ends should are flush for all parts. Repeat these same steps for another Front post (L).
- Page 13 STEP 13 Align the corresponding holes of Side panel (J) with the Cam Bolts (H1) and Wood dowels (H3) of Base (C) and slide into place. Secure the panels together with Cam lock (H2) using screwdriver (Not provided) as shown in figure 13. Note: Shorter screwdriver is recommended for assembly the cam lock.
- Page 14 STEP 15 With assistance from another adult, hold Top (A) as shown in figure 15. Align the Cam Bolts (H1) of Top (A) with the corresponding holes of Side panel (J) and Partition (K) and slide into place. Secure the panels together with Cam lock (H2) using screwdriver (Not provided) as shown in figure 15.
- Page 15 STEP 17 Place the Door (O) on a soft smooth surface with the large holes facing up. Align the holes of Door hinge (H10) with the pre-drilled holes of the Door (O) as shown in figure 17. Secure Door hinge (H10) in place with Flat head screw (H11) using screwdriver (Not provided) as shown in figure 17.
- Page 16 STEP 19 With assistance from another adult, align the holes of Door hinge (H10) on the Door (O) with the punctures in Side panel (J) and secure in place with Flat head screw (H11) using screwdriver (Not provided) as shown in figure 19. Fully tighten all screws. Repeat this process to attach another Door (O) to Side panel (J).
- Page 17 STEP 21 Insert Shelf pins (H9) into Side panel (J) and Partition (K). Tilt Small shelf (N) at an angle into the mantel and place it on Shelf pins (H9) as shown in figure 21. Figure 21 8pcs Assembled View: STEP 22 Cover any visible Cam lock (H2) using Sticker (H13) as shown in figure 22.
- Page 18 STEP 23 Install the Anti-Tip Hardware (H14) to secure the stand to the wall and prevent tip over. Install one bracket to each top back middle of the Console Fireplace. Place the stand in the desired location and mark where the installed bracket meet the wall. Remove the stand and using the remaining bracket.
