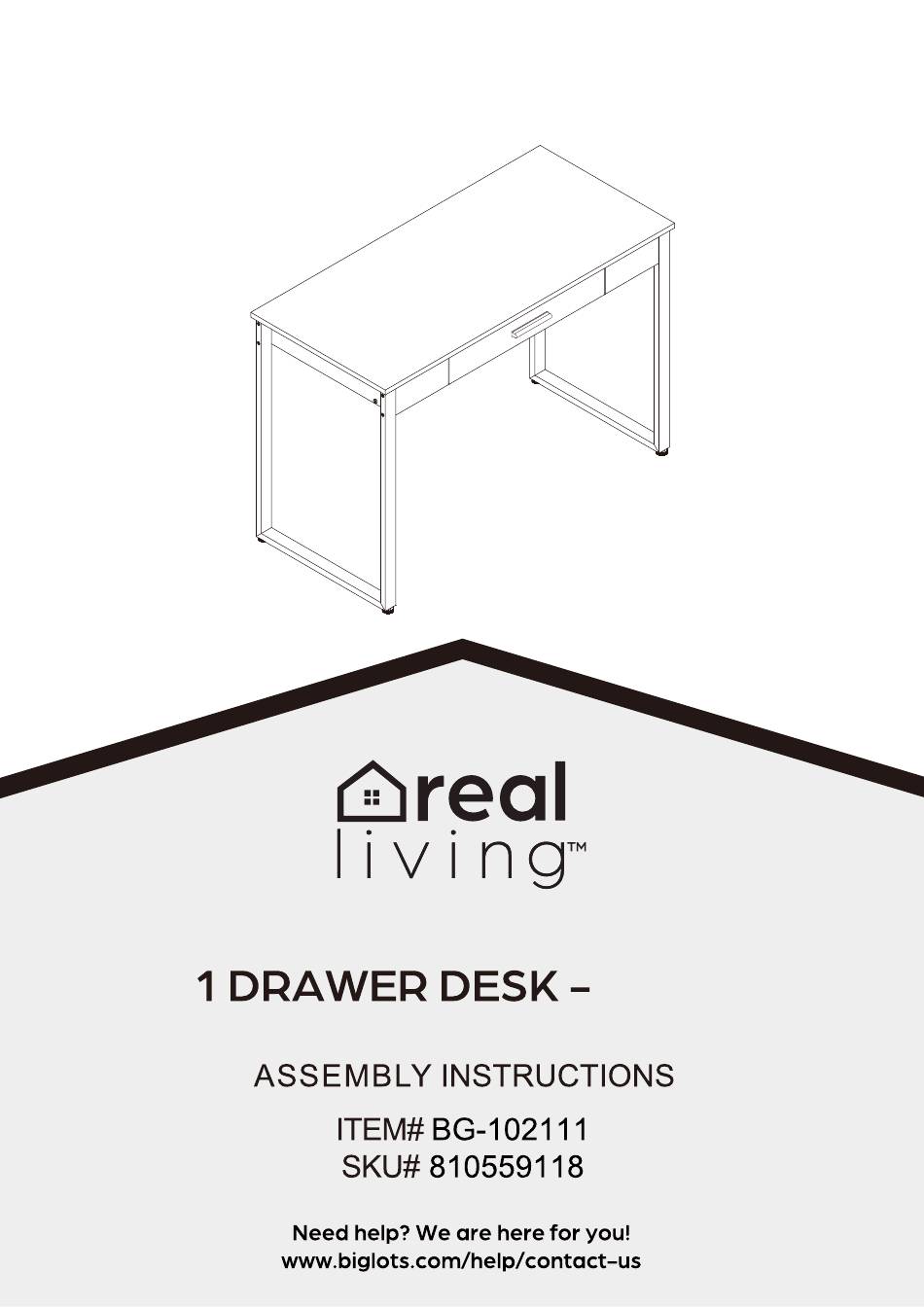

- Page 1 TAUPE...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instruc�ons before star�ng Clear a flat covered space to assemble We recommend two people for assembly Note that hardware required is provided for every step Pay a�en�on to orienta�on Le�er of the part corresponds to a s�cker on the product Number of the hardware corresponds to its number in the package Helpful hints provided along the way MAINTENANCE:... -
Page 3: Parts List
PARTS LIST Top Panel Back Panel Side Frame Support Tube Left Panel Left Middle Panel Left Front Panel Right Front Panel Drawer Front Drawer Left Drawer Right Drawer Back Drawer Bottom Right Middle Panel Right Panel... -
Page 4: Hardware List
HARDWARE LIST Slider Cam Bolt Cam Lock Wood Dowel Allen Screw Allen Screw Phillips Screw Phillips Screw Phillips Screw Phillips Screw Drawer Connector Handle Allen Screw Adjuster Screw Cap Allen Wrench Phillips head screw Driver HELPFUL HINTS • Separate parts before starting HOW TO INSTALL CAM LOCK Alignment: The cross points towards the panel... - Page 5 STEP 1 Attach front of Slider (1) to Right Middle Panel (N) with Phillips Screw (7) and fully tighten. Attach back of Slider (1) to Right Middle Panel (N) with Phillips Screw (7) and fully tighten. Note: The front of the slider is the end with two bigger holes.
- Page 6 STEP 3 Insert Cam Bolt (2) into Left Front Panel (G) and Right Front Panel (H) and fully tighten. Assembled View: STEP 4 Align Cam Bolt (2) in Left Front Panel (G) with the holes in Left Panel (E) and Left Middle Panel (F) as shown in the diagram and slide together.
- Page 7 STEP 5 Align the holes of Back Panel (B) with the holes of Left Panel (E), Left Middle Panel (F), Right Middle Panel (N) and Right Panel (O), secure the panels together with Phillips Screw (8). Fully tighten Phillips Screw (8). Assembled View: STEP 6 Attach Support Tube (D) to Left Middle Panel (F) and Right Middle Panel (N) with Phillips Screw (8).
- Page 8 STEP 7 Insert Adjuster (14) into Side Frame (C). 2PCS Assembled View: STEP 8 Attach Side Frame (C) to Back Panel (B), Left Front Panel (G) and Right Front Panel (H) with Allen Screw (13). Assembled View:...
- Page 9 STEP 9 Insert Cam Bolt (2) into Top Panel (A) and fully tighten. Insert Wood Dowel (4) into Top Panel (A) as shown in the diagram. Assembled View: STEP 10 With assistance, carefully align the holes in the assembled base with Cam Bolt (2) in Top Panel (A) and lower into place. Secure Top Panel (A) to Left Panel (E), Left Middle Panel (F), Right Middle Panel (N), Right Panel (O), Back Panel (B), Left Front Panel (G) and Right Front Panel (H) with Cam Lock (3).
- Page 10 STEP 11 Attach Drawer Connector (11) to Drawer Left (J) and Drawer Right (K) with Phillips Screw (7) and fully tighten. Attach Drawer Left (J) and Drawer Right (K) to Drawer Back (L) with Phillips Screw (8) and fully tighten as shown in the diagram. Assembled View: STEP 12 Slide Drawer Bottom (M) into Drawer Left (J), Drawer Right (K) and Drawer Back (L).
- Page 11 STEP 13 Attach Handle (12) to Drawer Front (I) with Phillips Screw (9) and fully tighten. Attach Drawer Front (I) to Drawer Left (J) and Drawer Right (K) with Allen Screw (5) and fully tighten. Assembled View: STEP 14 Slide assembled drawer into sliders. 14-1 14-2 Assembled View:...
- Page 12 STEP 15 Pull sliders out to front of drawer and secure in place with Phillips Screw (10) and fully tighten. Assembled View: STEP 16 Place Screw Cap (18) onto Allen Bolt (13) and firmly press into place. Assembly is now complete. Assembled View:...
