real living FP-P-1915-21 Assembly Instructions Manual

real living FP-P-1915-21 Assembly Instructions Manual

54 in. grey fireplace console

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the FP-P-1915-21 and is the answer not in the manual?

Questions and answers

Jackie Brehmer
March 9, 2025

Do you have instructions for 54 in grey media console fire place

2 comments:
Mr. Anderson
March 9, 2025

The instructions for the Real Living FP-P-1915-21 54-inch grey media console fireplace can be found in the provided manual. The manual includes assembly steps, weight limits, safety warnings, and cleaning recommendations.

This answer is automatically generated

Jackie Brehmer
March 10, 2025

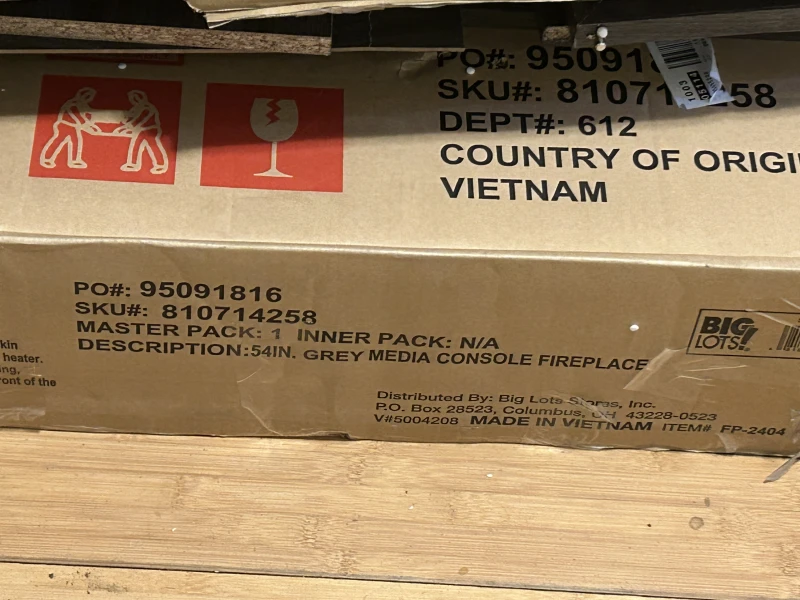

@Mr. Anderson the sku # is different sku 810714258

User image 67ce5b3fd34cc

Summary of Contents for real living FP-P-1915-21

  • Page 2: Maintenance

    GENERAL BEST PRACTICES FOR ASSEMBLY Read all instructions before starting Clear a flat covered space to begin We recommend 2 adults for assembly Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its number in the package Helpful hints provided along the way WARNINGS...
  • Page 3 CAUTION This Fireplace (FP-P-1915-21/ FP-P-1915-21-3A) is designed for flat panel LCD TVs weighing up to 60 lbs. For items other than flat panel LCD TVs, this fireplace will support up to 135 lbs when the item is placed evenly on the top surface. Use with other products may results in instability causing possible injury.
  • Page 4: Part List

    PART LIST TOP RAIL BASE MIDDLE SHELF LEFT PARTITION RIGHT PARTITION RIGHT SIDE PANEL LEFT SIDE PANEL 4PCS SIDE PANEL TRIM POST A POST B POST C 4PCS POST D SMALL SHELF LEFT DOOR RIGHT DOOR 2PCS 2PCS MIDDLE LEG MIDDLE BACK PANEL SIDE BACK PANEL ELECTRIC FIREPLACE...
  • Page 5: Hardware List

    HARDWARE LIST 35pcs 35pcs 31pcs 2pcs CAM BOLT CAM LOCK SHORT WOOD DOWEL KNOB 2pcs 3pcs 5pcs 33pcs HANDLE SHORT BOLT LONG BOLT ROUND HEAD SCREW 11pcs 2pcs 17pcs 4pcs ROUND HEAD SCREW DOOR BLOCK SHELF PIN DOOR HINGE 25pcs 9pcs 20pcs FLAT HEAD SCREW...
  • Page 6 STEP 1 Place Post A (J), Post B (K), Post C (L) and Post D (M) on a soft smooth surface. The side with the most holes should be facing up. Insert the Cam bolt (H1) into the corresponding hole of Post A (J), Post B (K), Post C (L) and Post D (M) using the screwdriver (Not provided).
  • Page 7 STEP 3 Place Right side panel (G) on a soft smooth surface with the holes facing up. Insert the Cam Bolts (H1) and Short wood dowels (H3) of Post C (L) and Post D (M) into the corresponding holes of Right side panel (G) and secure in place using Cam lock (H2) as shown in figure 3.
  • Page 8 STEP 5 With assistance from another adult, hold Middle shelf (D) and Left partition (E) vertically as shown in figure 5. Slide the Cam bolts (H1) and the Short wood dowels (H3) of Left partition (E) into the corresponding holes of Middle shelf (D) and secure in place with Cam lock (H2) using screwdriver (Not provided).
  • Page 9 STEP 7 With assistance from another adult, place Left side panel (H) on edge as shown in figure 7. Align the holes in Left partition (E) and Right partition (F) with the Cam bolts (H1) and Short wood dowels (H3) in Base (C) and slide into place as shown in figure 7.
  • Page 10 STEP 9 Place Top (A) on a soft smooth surface with the holes facing up. Insert Cam bolt (H1) into the indicated holes in figure 9 and fully tighten using the screwdriver (Not provided). Place a small drop of Glue (H15) and a Short wood dowel (H3) into the two holes along the front of Top (A) as shown in figure 9.
  • Page 11 STEP 11 With assistance from another adult, carefully tip the assemble pieces upright as shown in figure 11. Figure 11 STEP 12 Place Right door (P) on a soft smooth surface with the large holes facing up. Align the holes of Door hinge (H12) with the pre-drilled holes of Right door (P) as shown in figure 12.
  • Page 12 STEP 13 With assistance from another adult, hold Right door (P) vertically and attach Knob (H4) to the top of the Right door (P) with Short bolt (H6) using screwdriver (Not provided). Attach Handle (H5) to the middle of Right door with Long bolt (H7) using screwdriver (Not provided) as shown in figure 13.
  • Page 13 STEP 15 Align the holes in Side back panel (S) with the pilot holes in Top (A) and secure to Top (A), Left side panel (H), Left partition (E) , Right partion (F), Right side panel (G) and Base (B) with Round head screw (H8) using screwdriver (Not provided) as shown in figure 15. Align the top of Middle back panel (R) with the tops of Side back panels (S) and secure to Top (A) and Middle shelf (D) with Round head screw (H8) using screwdriver (Not provided) as shown in figure 15.
  • Page 14 STEP 17 Insert Shelf pins (H11) into Left side panel (H), Left partition (E), Right partition (F) and Right side panel (G). Tilt Small shelf (N) at an angle into the mantel and place it on Shelf pins (H11) as shown in figure 17. Figure 17 16pcs Assembled View:...
  • Page 15 STEP 19 Assembly is completed. Note: Please read the operating manual for the Electric Fireplace Insert and Electric Fireplace Insert remote control before using Fireplace Adjust the leveler on Middle leg (Q) flush with the floor. STEP 20 Install the Anti-Tip Hardware (H18) to secure the stand to the wall and prevent top over. Install one bracket to each top back middle of the Console Fireplace.

This manual is also suitable for:

Fp-p-1915-21-3a810521107
