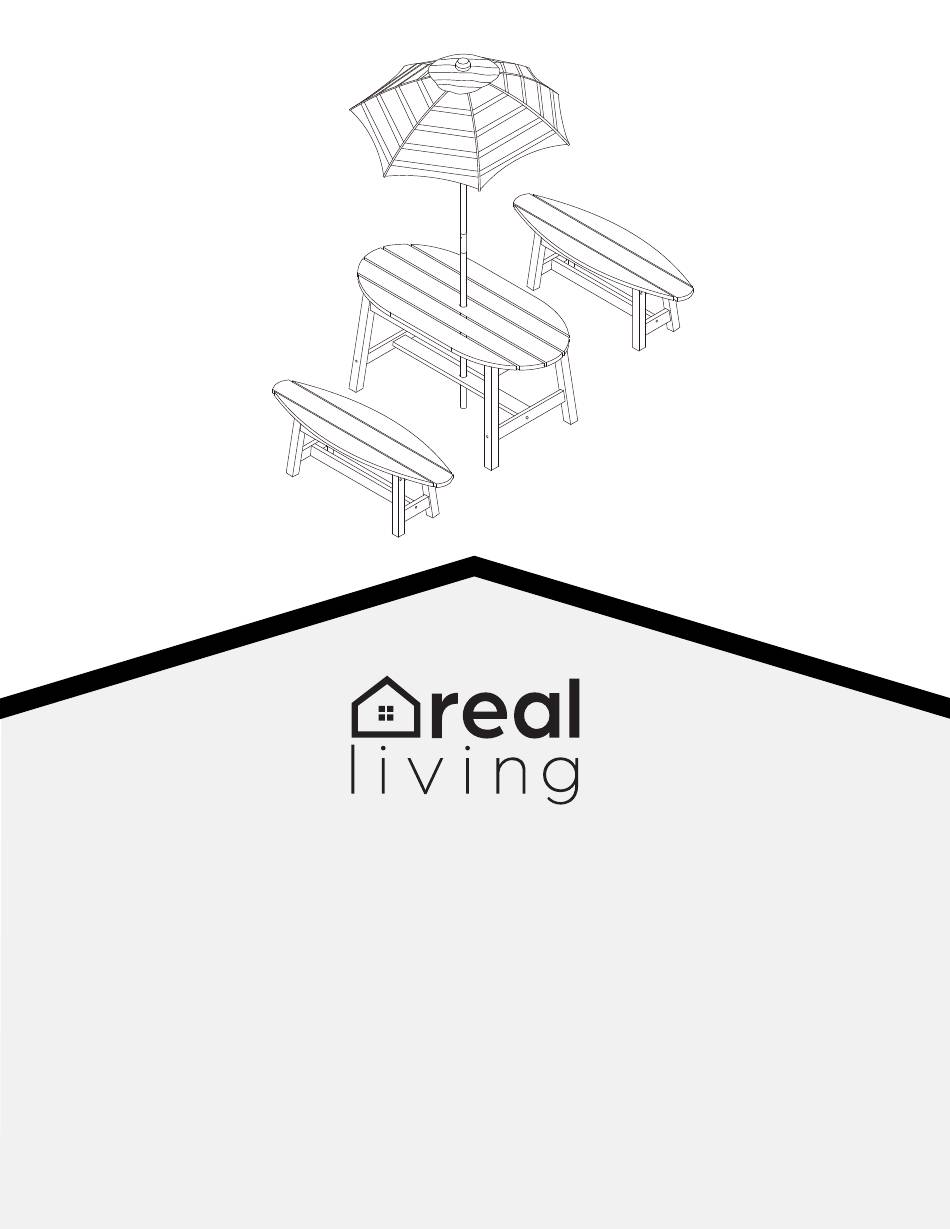

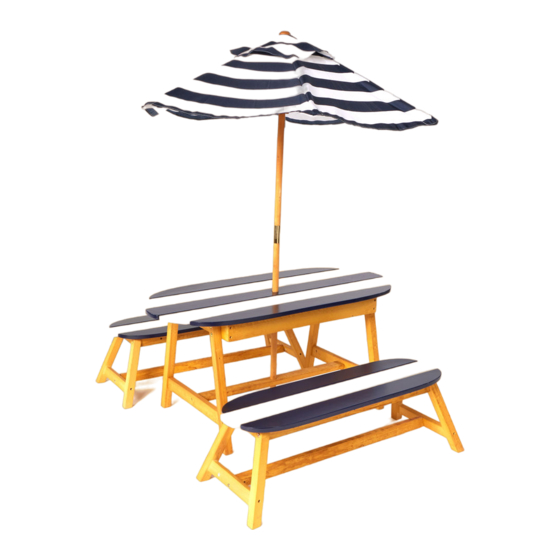

- Page 1 4PC KIDS SURFBOARD TABLE & STOOL SET ASSEMBLY INSTRUCTIONS ITEM#: KYW-11390B SKU# : 810587397 Need hel p? We are here for you! 1-800-935-3959 Toll Free or email us at support@teamson.com...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its letter in the package Helpful hints provided along the way WARNINGS:... -
Page 3: Parts List
PARTS LIST Seat Support rail HARDWARE LIST 1.57” 2.75” 8*40mm M6*70mm Wood bolt Phillips screw Barrel Nut... -
Page 4: Helpful Hints
HELPFUL HINTS ・ Tools needed, but not included: ・ Separating parts before starting How to install barrel nuts Important: Press a barrel nut(5) into the hole in the part, making sure the “-“ pattern is facing up. Important: Using a standard screw driver, turn the nut until the “-“... - Page 5 STEP 1 Put 12 x part (5) into the hole of seat (A) and support rail (B), Make sure the "-" of barrel nut is alighed up the hole. Attaching leg to seat and wood support rail with 12 M6*70mm 8*40mm x part (3) and 4 x part (2) Assembled View: Stool...
-
Page 6: Part List
PART LIST Right leg Left leg Short cross bar Long cross bar Table top Bottom post of umbrella Canopy with upper post of umbrella HARDWARE LIST 1.57” 2.75” 2.16” 8*40mm M6*55mm M6*70mm Machine screw Wood bolt Phillips screw Hexagon Nut Barrel Nut Wrench... - Page 7 STEP 2 Put 4 x part (5) into the hole of wood cross bar of table leg (E), Make sure the "-" is aligned up of hole. Attaching right & left leg (D & F)to cross bar (E) with 8*40mm M6*70mm 4 x part (3) and 4 x part (2) Assembled View:...
- Page 8 STEP 3 Put 2 x part (5) into the hole of long cross bar of table leg (G), Make sure the "-" is aligned up of hole. Attaching assembled right leg and left leg to long cross bar (G) M6*55mm 8*40mm with 2 x part (1) and 2 x part (2) Assembled View:...
- Page 9 STEP 4 Attaching legs to table top (H) with 8 x part (1) and 8 x part (4) and wrench (6) M6*55mm Assembled View: Table...
- Page 10 STEP 5 Screwing on the bottom post of umbrella (I) and canopy with upper post of umbrella (J) in clockwise orientation Assembled View:...
- Page 11 STEP 6 Made in China...
