ION C2210
Fast Ethernet Media and Rate Converter Module
10/100Base-TX to 100Base-FX
Installation Guide
Part Number 33416
Revision B August 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ION C2210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lantronix ION C2210

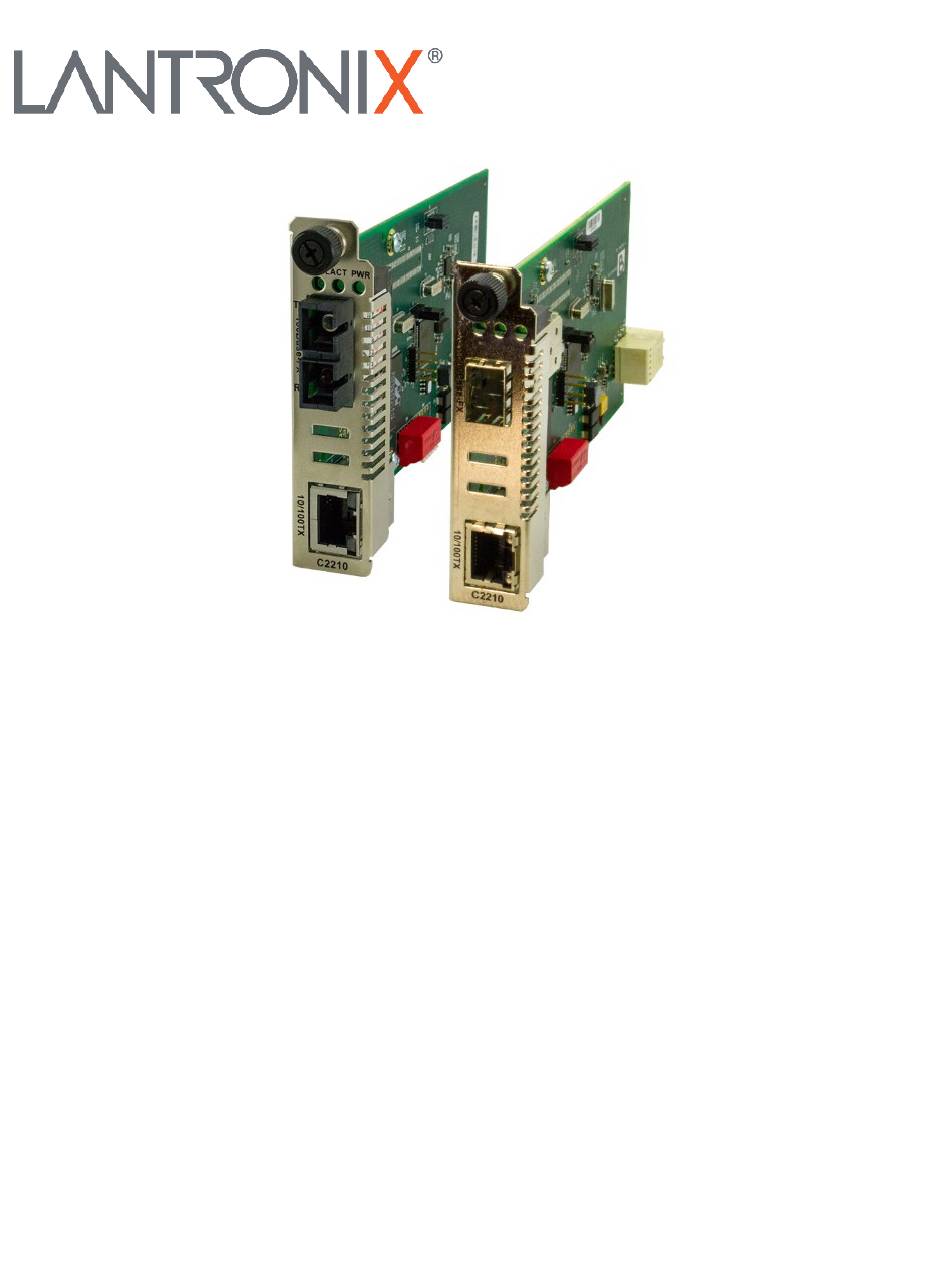

  • Page 1 ION C2210 Fast Ethernet Media and Rate Converter Module 10/100Base-TX to 100Base-FX Installation Guide Part Number 33416 Revision B August 2023...
  • Page 2 ION C2210 Installation Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix.
  • Page 3: Table Of Contents

    Lantronix ION C2210 Installation Guide Contents Product Description ............................. 4 Ordering Information ............................4 Features ................................. 4 Manageable Features ............................. 4 Specifications ............................... 5 Cable Specifications............................7 Fiber cable ............................... 7 Copper cable ..............................8 Installation ................................9 Set the 6-position DIP Switch ..........................9 Hardware/software Mode Jumper ........................
  • Page 4: Product Description

    ION C2210 Installation Guide Product Description The ION C2210 is a media converter module that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
  • Page 5: Specifications

    Lantronix ION C2210 Installation Guide LPT enable/disable FEF enable/disable Pause enable/disable Auto-MDI/MDIX enable/disable Note: Manageable Features are available when used in an ION Platform chassis along with an ION Management Module. Specifications Standards: IEEE 802.3u, IEEE 802.3x Data Rate: 10 Mbps; 100 Mbps Layer 2...
  • Page 6 The information in this user’s guide is subject to change. For the most up-to-date information on the C2210 SIC, view the user’s guide on-line at https://www.lantronix.com/products/c2210-series/. CAUTION: Visible and invisible laser radiation when open. Do not stare into beam or view directly with optical instruments.
  • Page 7: Cable Specifications

    Lantronix ION C2210 Installation Guide Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber cable Bit Error Rate: <10-9 Single mode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 50/125 μm C2210-1011 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm...
  • Page 8: Copper Cable

    Lantronix ION C2210 Installation Guide Copper cable Category 3: (Minimum requirement for 10 Mb/s operation) Gauge 24 to 22 AWG Attenuation 11.5 dB/100m @ 5-10 MHz Category 5: (Minimum requirement for 100 Mb/s operation) Gauge 24 to 22 AWG Attenuation 22.0 dB /100m @ 100 MHz Straight-through (MDI) or crossover (MDI-X) twisted-pair cable must be used.
  • Page 9: Installation

    Lantronix ION C2210 Installation Guide Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 6-position switch, removing and inserting circuit board jumper(s), and installing the SIC. Failure to observe this caution could result in damage to or failure of the SIC.
  • Page 10: Install The C2210 Sic

    Lantronix ION C2210 Installation Guide Install the C2210 SIC To install the C2210 SIC: 1. Locate an empty installation slot on the ION chassis. 2. Carefully slide the module into the installation slot, aligning the module with the installation guides.
  • Page 11: Install The Fiber Cable

    Lantronix ION C2210 Installation Guide Install the Fiber Cable 1. Locate or build IEEE 803.2™ compliant 100Base-FX fiber cable with male, two-stranded TX to RX connectors installed at both ends. 2. Connect the fiber cables to the C2210 SIC as described: •...
  • Page 12: Product Features

    Lantronix ION C2210 Installation Guide Product features AutoCross™ The AutoCross feature detects and configures the twisted-pair copper port on the C2210 SIC for the correct straight-through (MDI) or crossover (MDI-X) configuration. This feature allows either MDI or MDI-X cable to connect the SIC to devices such as hubs, transceivers, or network interface cards (NICs).
  • Page 13: Snmp

    Lantronix ION C2210 Installation Guide Per the IEEE method, an auto negotiating port that detects a forced link partner should drop to the detected speed (10Mbps or 100Mbps) and default to HALF DUPLEX. The C2210 allows bypassing the IEEE method by setting the parallel detection default mode to half or full duplex DIP SW 3, disabling SW 1, auto-negotiation and configuring SW 2, speed.
  • Page 14: Troubleshooting

    Lantronix ION C2210 Installation Guide Troubleshooting If the C2210 SIC fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: 1. Is the PWR (power) LED lit? • Is the SIC inserted properly into the chassis? •...
  • Page 15: Compliance Information

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
  • Page 16: Declaration Of Conformity

    Lantronix ION C2210 Installation Guide Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA Declares that the product(s): C2210-1011, C2210-1013, C2210-1014, C2210-1015, C2210-1016, C2210-1017, C2210-1019, C2210-1035, C2210-1039, C2210-1040, C2210-1029-A1, C2210-1029-A2, C2210-1029-B1, C2210-1029-B2.
  • Page 17 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact 33416 Rev. B https://www.lantronix.com Page 17 of 17...
