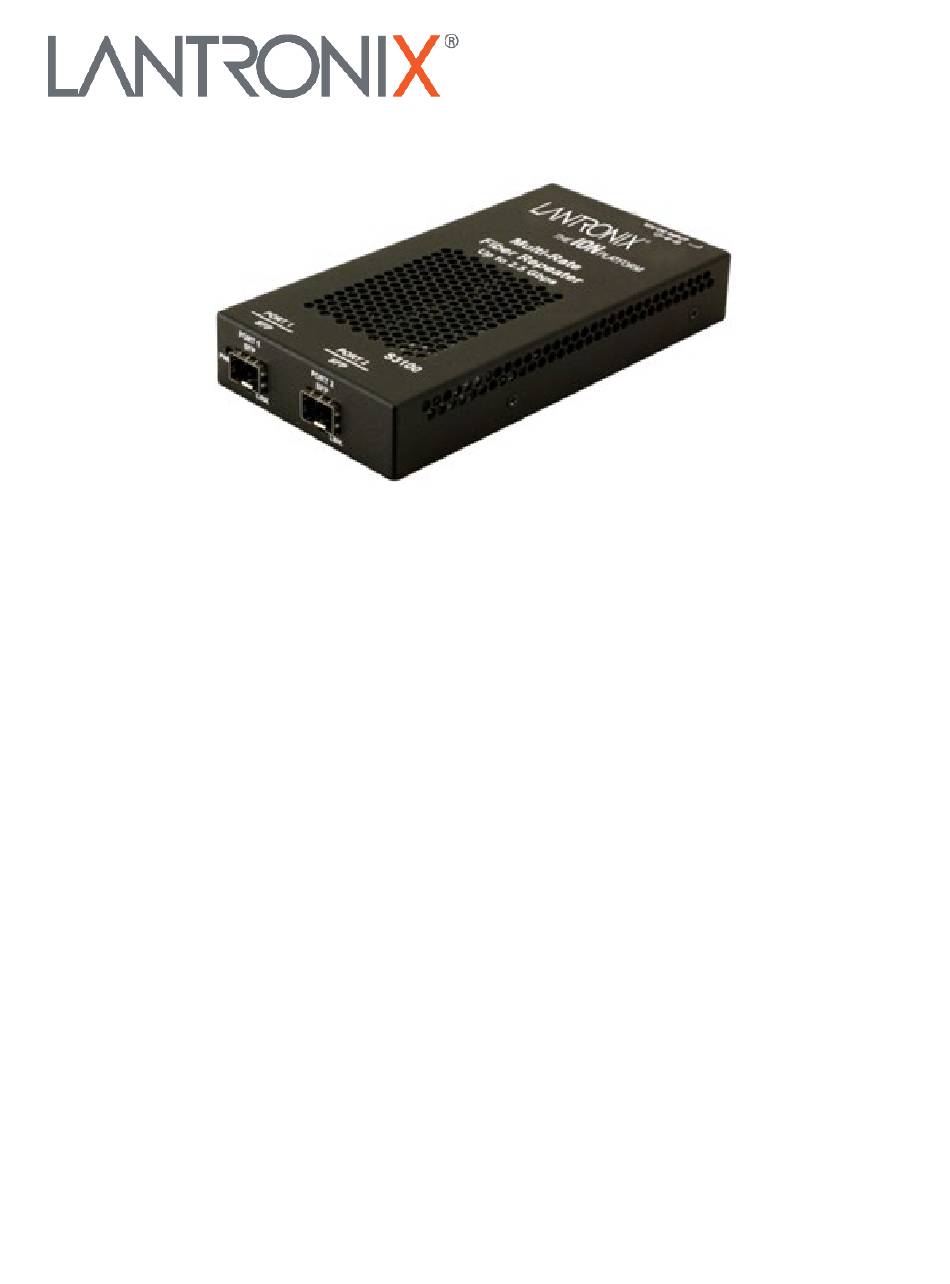

- Page 1 S3100 Series Stand-alone Fiber to Fiber Media Converter SFP to SFP for Data Rates from 100Mbps to 2.5Gbps Install Guide Part Number 33581 Revision C August 2023...
- Page 2 S3100 Install Guide Intellectual Property © 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders.
-
Page 3: Table Of Contents
Lantronix S3100 Install Guide Contents Product Description ............................4 Ordering Information ............................. 4 Features ................................ 5 Management Features ..........................5 Manual Overview ............................5 Related Manuals and Online Help ........................ 5 Application Example ............................6 Pre-Installation .............................. 7 Safety ................................ 7 Unpacking .............................. -
Page 4: Product Description

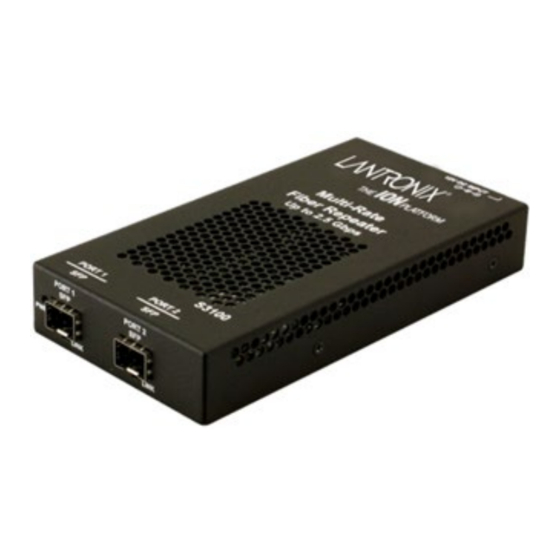

Lantronix S3100 Install Guide Product Description Lantronix ION x3100 is an SFP-to-SFP fiber repeater with two SFP ports for direct physical connection back to back. The x3100 performs signal reamplify (1R) signal regeneration. The x3100 also supports: • CWDM Wavelength transponder, general wavelength to specific wavelength. -
Page 5: Features
The purpose of this manual is to provide the information needed to install the S3100 to the point of operation. Note that there is a separate install guide for the C3100. Transition Networks is now Lantronix. Some products/firmware items are still in process of being re-branded and may still reflect the Transition Networks name/logo. -
Page 6: Application Example
S3100 Install Guide Application Example Lantronix ION x3100 is a SFP-to-SFP fiber repeater with two SFP ports for direct physical connection. The x3100 performs signal reamplify (1R) signal regeneration.The x3100 can be used in telecom and enterprise applications where 100Mb - 2.5 GB links require fiber extension or where 100Mb - 2.5Gb links require an interface between two fiber networks.The x3100 performs a variety of protocol transparent... -
Page 7: Pre-Installation
Lantronix S3100 Install Guide Pre-Installation CAUTION: Observe electrostatic discharge precautions when handling the S3100. Failure to observe this caution could result in damage or failure of the S3100. Safety Before installing the S3100, read these “Safety Cautions” and ensure that the requirements noted are met. -
Page 8: Installation And Setup
Lantronix S3100 Install Guide Installation and Setup General This section describes how to install the S3100 and the procedures to access and initially set it up via either a local serial interface (USB) or a remote Ethernet connection (Telnet session or Web interface). -
Page 9: Installing Sfp Devices
SFP Optical Transceivers Lantronix SFP devices are small form factor, hot-pluggable transceivers which allow for a single piece of network equipment to be connected to a multitude of interfaces, protocols, and transmission media via the SFP port. All of Transition’s SFPs devices are compliant with the Multi-Sourcing Agreement (MSA) ensuring interoperability with all other MSA compliant networking devices. -
Page 10: Cabling
Lantronix S3100 Install Guide Cabling The x3100 can be used in telecom and enterprise applications where 100Mb - 2.5Gb links require fiber extension or where 100Mb - 2.5Gb links require an interface between two fiber networks. The x3100 performs a variety of protocol transparent services; it supports virtually any protocol from 100Mbps to 2.5Gbps. -
Page 11: Power Connection
Lantronix S3100 Install Guide Power Connection The S3100 ships with a power supply module that provides power via a barrel connector to the S3100 power receptacle. Figure 6: Power Connection Make the power connection as described below. 1. Plug the power supply’s barrel connector into the standalone module as shown above.. -
Page 12: Operation
Lantronix S3100 Install Guide Operation Power and Fiber Status LEDs The status LEDs (labeled PWR and LINK are shown below. Use the status LEDs to monitor S3100 operation in the network. Figure 7: Power and Fiber Status LEDs The Power and Fiber Status LEDs are described below. -
Page 13: Product Features
Lantronix S3100 Install Guide Product Features The features described and illustrated in this section include: Link Pass through • Link Pass Through (LPT) This function causes loss of link on one side of a media converter to be passed through to the other side, so that upstream equipment can see fault conditions that would otherwise be hidden by the media converters. -
Page 14: Technical Specifications
Lantronix S3100 Install Guide Technical Specifications Standards IEEE802.3ae / ITU.G.709 / SFF8431 Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) Max. Frame Size 16384 bytes jumbo frame support Data Rate 100 Mbps - 2.5 Gbps; Data Rates Protocol Independent Dimensions Width: 3.25 inches (82 mm) -
Page 15: Troubleshooting
Lantronix S3100 Install Guide Troubleshooting Procedure Is the PWR (power) LED lit? • Is the S3100 inserted properly into the chassis? • Is the power cord properly installed in the S3100 and in the grounded AC outlet? • Does the grounded AC outlet provide power? •... -
Page 16: Compliance Information
Lantronix S3100 Install Guide Compliance Information Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA Declares that the product(s): C3100-4040 S3100-4040 Conforms to the following Product Regulations: FCC Part 15 Class A; EN55022-2010 EN55024-2010;... -
Page 17: European Regulations
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. -
Page 18: Electrical Safety Warnings
Lantronix S3100 Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal 18nstallers I overensstemmelse med sikkerhedsadvarslerne. - Page 19 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33581 Rev. C https://www.lantronix.com/ Page 19 of 19...
