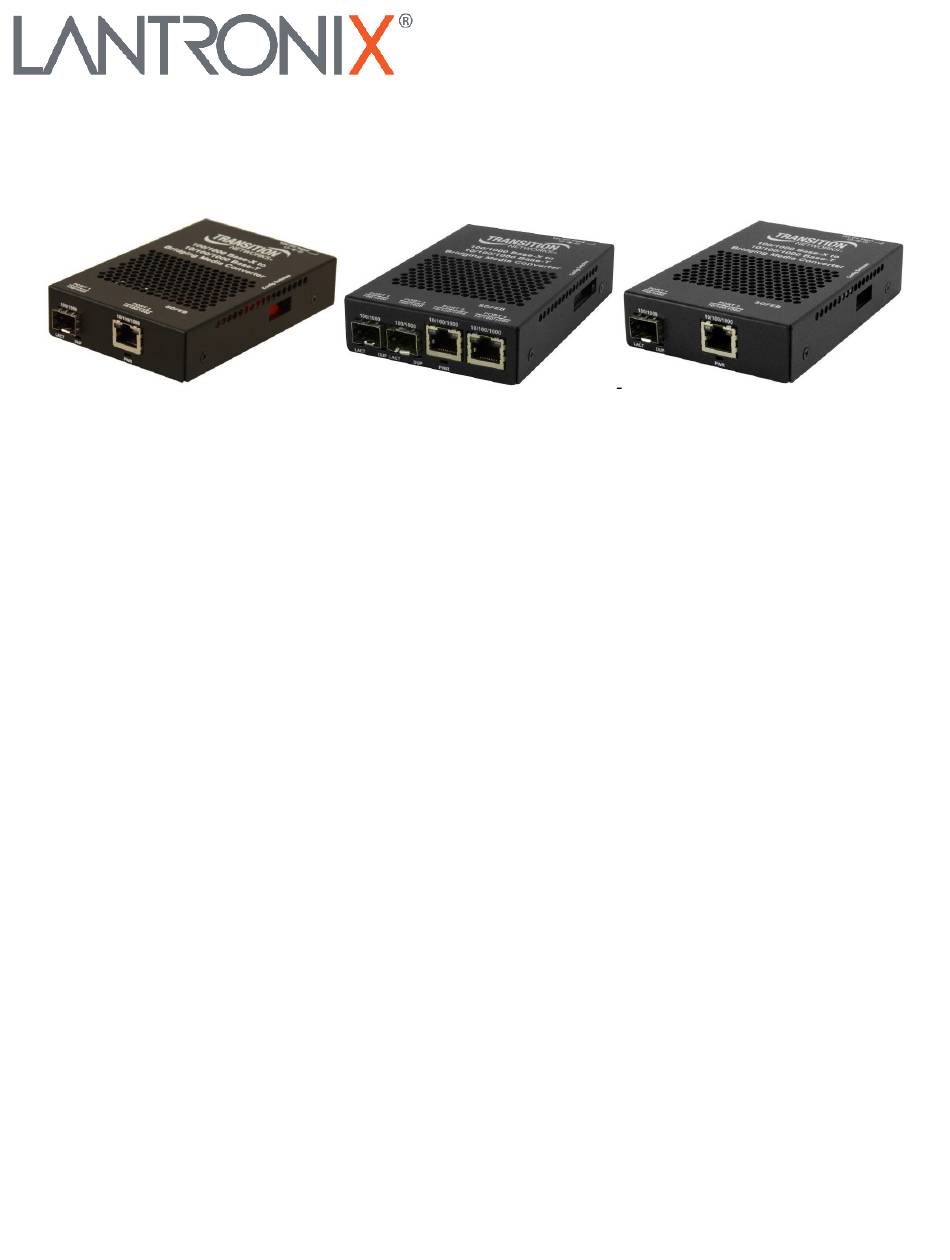

- Page 1 SGFEB Series Stand-alone Gigabit Ethernet Media and Rate Converter 10/100/1000Base-T to 1000Base-SX/LX User Guide Part Number 33601 Revision E July 2023...
- Page 2 SGFEB Series User Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix.
-
Page 3: Table Of Contents
Lantronix SGFEB Series User Guide Contents Introduction ..................................4 Ordering Information ................................4 Optional Accessories (sold separately) ..........................4 Power Supply Included ..............................4 For More Information ................................5 Package Contents ................................7 Status LEDs ................................... 13 Fiber Status LEDs ................................13 Copper Status LEDs .............................. -
Page 4: Introduction
SGFEB Series User Guide Introduction The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. -
Page 5: For More Information
Lantronix SGFEB Series User Guide For More Information For Lantronix Drivers, Firmware, Manuals, Product Notifications, Warranty Policy & Procedures, etc. go to the Lantronix Technical Resource Center. Distances The distances listed below are typical maximum cable distances. Actual distance depends on the physical characteristics of the network installation. - Page 6 Lantronix SGFEB Series User Guide Applications • Integrate 1000Base-SX/LX Fiber into 10/100/1000 Copper environments • Extend Network Distance • Bridge legacy 10/100 devices to a Gigabit backbone Generic Application Lantronix ION Application 33601 Rev. E https://www.lantronix.com...
-
Page 7: Package Contents
Lantronix SGFEB Series User Guide Package Contents Before you start installing the SGFEB, verify that the package contains the following items: • One SGFEB Media Converter • One Documentation Postcard • One Power Supply with Changeable AC Plugs • Four rubber feet Please notify your sales representative immediately if any of the above items are missing or damaged. - Page 8 Lantronix SGFEB Series User Guide One DIP Switch Layouts This layout has one six-position DIP Switch. The DIP switch is located on the right side of the SGFEB. Use a small, flat- blade screwdriver (or a similar device) to set the DIP switches according to your site requirements.
- Page 9 Lantronix SGFEB Series User Guide Two DIP Switch Layouts This layout has one six-position DIP Switch and one four-position DIP Switch. The DIP switches are located on the right side of the SGFEB (SGFEB1040-230 or SGFEB1040-330).Use a small, flat-blade screwdriver (or a similar device) to set the DIP switches according to your site requirements.
- Page 10 Lantronix SGFEB Series User Guide Power Connection Use the supplied AC power adapter to power the SGFEB standalone converter. To connect power to the SGFEB, do the following: 1. Connect the barrel connector on the power adapter cord to the power connector on the media converter shown below.

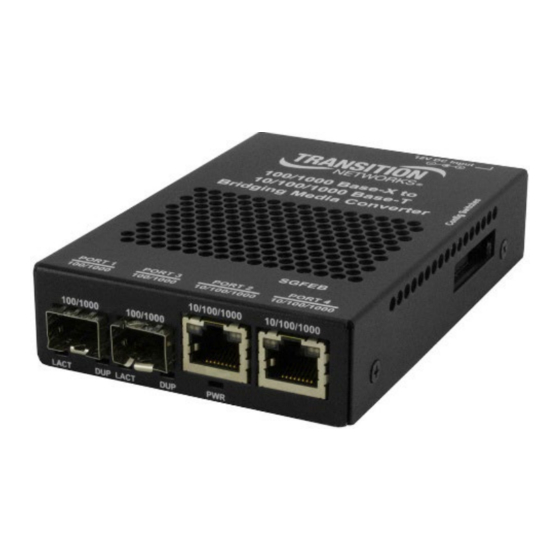

- Page 11 Lantronix SGFEB Series User Guide Port Locations and Layouts Port layouts and locations also vary by model number and PCB assembly as shown below. Note: Port 1 and Port 2 always refer to Fiber port 1 and Copper port 1. Port 3 refers to a second Fiber port, and Port 4 refers to a second RJ45 (copper) port.
- Page 12 Lantronix SGFEB Series User Guide Installing the RJ-45 Copper Cable 10/100/1000Base-T Copper Port: 1. Locate a 10/100/1000Base-TX compliant copper cable with male RJ-45 connectors installed at both ends. 2. Connect the RJ-45 connector at one end of the cable to the SGFEB’s 10/100/1000Base-RJ-45 port.
-
Page 13: Status Leds
Lantronix SGFEB Series User Guide Operation Status LEDs Use the status LEDs to monitor SGFEB operations. PWR (Power): On = Power is provided to the SGFEB. Fiber Status LEDs The status LEDs for the 1000Base-SX/LX fiber connection (labeled LACT and DUP) are located under the fiber port (Port 1 and Port 3). -
Page 14: Auto-Negotiation
Lantronix SGFEB Series User Guide Product Features Auto-Negotiation The Auto-Negotiation feature allows the SGFEB10xx to automatically configure itself to achieve the best possible mode of operation over a link. The media converter broadcasts its speed (10 Mb/s, 100 Mb/s, or 1000 Mb/s) and duplex capabilities (full or half) to the other devices and negotiates the best mode of operation. -
Page 15: Automatic Link Restoration
Lantronix SGFEB Series User Guide Automatic Link Restoration The SGFEB will automatically restore the link between networked devices after a fault condition has been corrected. In contrast, products from competitors generally require the user to power down, then power up the converters after a fault condition has been corrected. -
Page 16: Port Isolation On 3-Port Models
Lantronix SGFEB Series User Guide Port Isolation The SGFEB -230 and -330 support Port Isolation. This function uses Port Isolation (Port Based VLAN) to disable the data paths between ports. This allows two customer-facing fiber ports and prevents each customer from seeing the other’s traffic. -
Page 17: Port Isolation On 4-Port Models
Lantronix SGFEB Series User Guide Port Isolation on -Port Models Port Isolation on 4-port devices sets up a private VLAN between ports 1 and 2, and a second Port Based VLAN between ports 3 and 4 (like having two independent converters). -
Page 18: Cable Specifications
Lantronix SGFEB Series User Guide EEE Low Power Idle mode requires the copper port to advertise via the auto negotiation registers the ability to support EEE for both 1000Base-T and 100Base-T. Both local and remote ports must indicate they can support low power idle mode before the port can initiate a low power idle state. -
Page 19: Fiber Cable Specs
Lantronix SGFEB Series User Guide Fiber Cable Specs The fiber optic transmitters on these devices meet Class I Laser safety requirements per IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11. Bit Error Rate: <10-9 Single mode fiber: 9 μm Multimode fiber: 62.5/125 μm... -
Page 20: Technical Specifications
Lantronix SGFEB Series User Guide Technical Specifications The SGFEB was designed to meet these specifications. Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az Data Rates Copper: 10/100/1000 Mbps Fiber: 1000 Mbps, 100 Mbps also supported via SFP port... - Page 21 Lantronix SGFEB Series User Guide Warnings WARNING: Visible and invisible laser radiation when open. Do not stare into the beam or view the beam directly with optical instruments. Failure to observe this warning could result in an eye injury or blindness.
- Page 22 Lantronix SGFEB Series User Guide Model Number Cross Reference The table below shows the various SGFEB models and related data. 33601 Rev. E https://www.lantronix.com...
- Page 23 Lantronix SGFEB Series User Guide Troubleshooting 1. Is the PWR (power) LED lit? • Is the power adapter the proper type of voltage and cycle frequency for the AC outlet? • Is the power adapter properly installed in the media converter and in the outlet? •...
-
Page 24: Declaration Of Conformity
Lantronix SGFEB Series User Guide Compliance Information Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA SGFEB Series: SGFEBxxxx-xxx Declares that the product(s): Conforms to the following Product Regulations: FCC Part 15 Class A, EN 55022:2010, EN 55024:2010... -
Page 25: European
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. - Page 26 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33601 Rev. E https://www.lantronix.com...
