Summary of Contents for Lantronix ION C2110

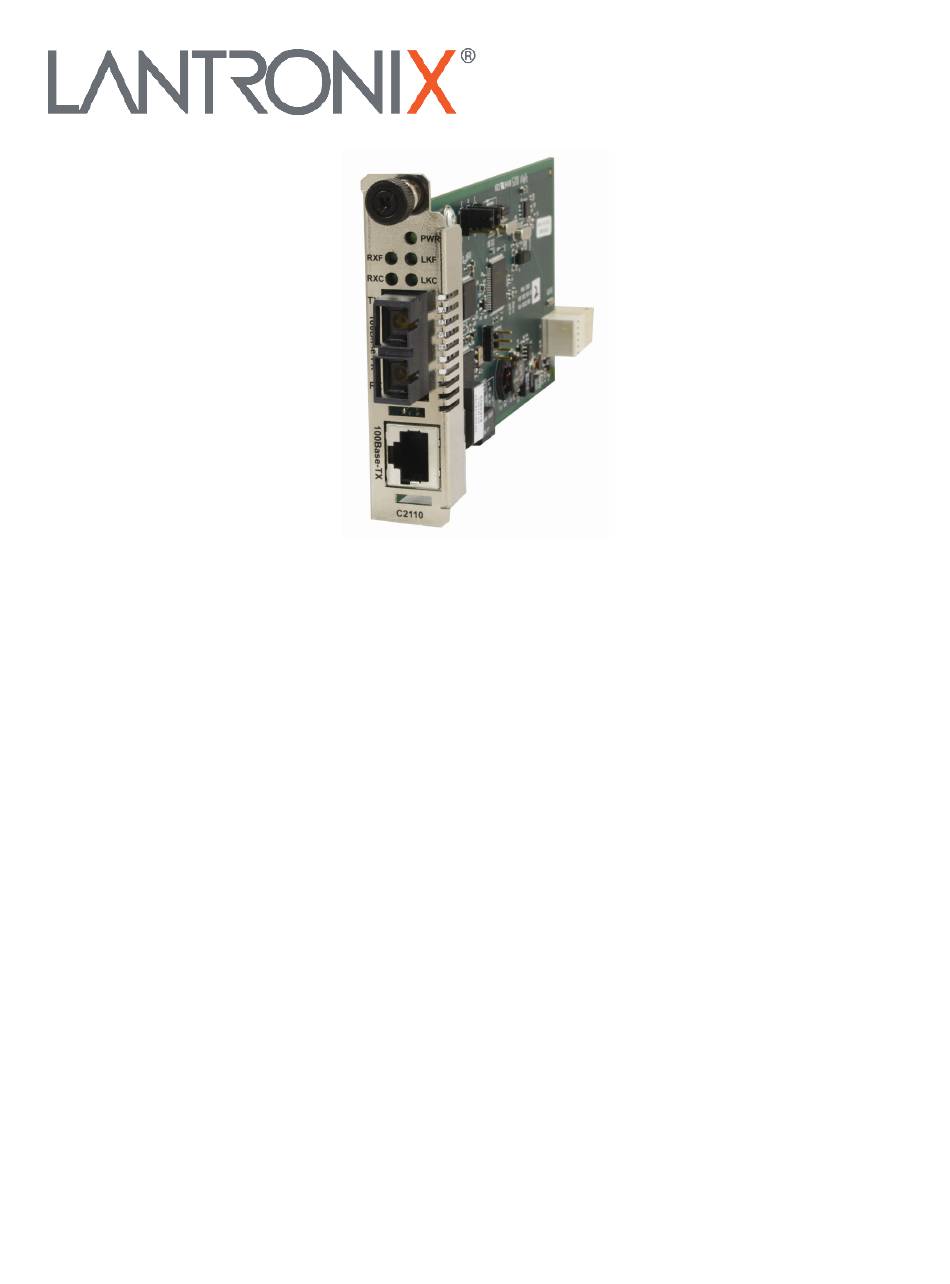

- Page 1 ION C2110 ION Fast Ethernet Media Converter 100Base-TX to 100Base-FX Install Guide Part Number 33415 Revision C August 2023...
-
Page 2: Revision History
C2110 Install Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. -
Page 3: Table Of Contents
Lantronix C2110 Install Guide Contents Revision History ............................2 Product Description ............................5 Ordering Information ............................. 5 Features ................................ 5 Manageable Features ........................... 5 Distances............................... 6 Applications ..............................6 Installation ..............................7 Configuration DIP Switches and Jumpers ....................7 Set the 4-position DIP Switch (SW1) ..................... 8 Set AutoCross (E/D 3-Pin Jumper) (J4).................... - Page 4 Lantronix C2110 Install Guide Troubleshooting ............................21 Compliance Information ..........................22 FCC Regulations ............................22 Canadian Regulations ..........................22 Declaration of Conformity ..........................23 33415 Rev. C https://www.lantronix.com Page 4 of 24...
-
Page 5: Product Description
C2110 Install Guide Product Description The ION C2110 is a media converter module that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. -
Page 6: Distances
SFP module to match your required fiber type and transmission distance. Applications Fiber Integration in 10/100 Copper Environments: The ION C2110 device provides an interface between 100Base-TX ports and 100Base-FX ports allowing users to integrate fiber optic cabling into 100Base-TX copper environments. -
Page 7: Installation
Lantronix C2110 Install Guide Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 4-position DIP switch and the jumpers. Failure to observe this caution could result in C2110 failure or damage. Configuration DIP Switches and Jumpers PCB # 11322 Rev. -
Page 8: Set The 4-Position Dip Switch (Sw1)
Lantronix C2110 Install Guide Set the 4-position DIP Switch (SW1) The 4-position DIP switch is located on the edge of the printed circuit board (PCB). Use a small flatblade screwdriver to set the recessed switches. The default setting is all Up (Enabled). -
Page 9: Set Autocross (E/D 3-Pin Jumper) (J4)
Note: AutoCross is enabled by default. Lantronix recommends leaving jumper J4 in the “Enabled” position. The 3-pin header J4 for the jumper is located on the PCB and is labeled “E” (Enabled) and “D” (Disabled). -
Page 10: J6: E/H 3-Pin Jumper (Do Not Alter)
Lantronix C2110 Install Guide J6: E/H 3-Pin Jumper (Do Not Alter) The default setting is “E” (Ethernet). Do not change this setting. E - Ethernet: Ethernet mode of operation (Default - Leave as is). H - HSTR: High Speed Token Ring mode. Do not use this setting. -
Page 11: Install The C2110 In The Ion Chassis
Lantronix C2110 Install Guide Install the C2110 in the ION Chassis CAUTION: Wear a grounding device and observe electrostatic discharge precautions when installing the C2110. Failure to observe this caution could result in damage or failure of the C2110. 1. Carefully slide the C2110 into an open ION chassis slot, aligning it with the slot guides. -
Page 12: Connect The Twisted-Pair Copper Cable
Lantronix C2110 Install Guide Connect the Twisted-Pair Copper Cable 1. Locate a 100Base-TX compliant cable, with a male RJ-45 connector installed at each end. 2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the C2110. -
Page 13: Product Features
Lantronix C2110 Install Guide Product Features Auto-Negotiation The Auto-Negotiation feature allows the C2110 to automatically configure itself to achieve the best possible mode of operation over a link. The C2110 broadcasts its speed (100 Mb/s) and duplex capabilities (full or half) to the other devices and negotiates the best mode of operation. Auto-Negotiation allows quick and easy installation because the optimal link is established automatically. -
Page 14: Link Pass-Through (Lpt)
Lantronix C2110 Install Guide Link Pass-Through (LPT) When the Link Pass-Through feature is activated, it allows the C2110 to monitor both the fiber and copper RX (receive) ports for loss of signal. In the event of a loss of an RX signal (1), the C2110 will automatically disable the TX (transmit) signal (2), thus, “passing through”... -
Page 15: Snmp
Lantronix C2110 Install Guide SNMP See the on-line documentation that comes with Lantronix FocalPoint™or ION software for applicable commands and usage. Use SNMP at an attached terminal or at a remote location to monitor the following C2110 activities: • Media-converter power •... -
Page 16: Cable Specifications
Lantronix C2110 Install Guide Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Specs The fiber optic transmitters on this device meet Class I Laser safety requirements per IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11. -
Page 17: Copper Cable Specs
Lantronix C2110 Install Guide Copper Cable Specs Category 5: (minimum requirement) Gauge: 24 to 22 AWG Attenuation: 22.0 dB /100m @ 100 MHz Maximum Cable Distance: 100 meters • Straight-through or crossover twisted-pair cable may be used. • Shielded twisted-pair or unshielded twisted-pair may be used. -
Page 18: Technical Specifications
Lantronix C2110 Install Guide Technical Specifications For use with Lantronix Model C2110 or equivalent. Standards: IEEE Std. 802.3 Data Rate: 100 Mbps, Layer-1 Max packet size 9K bytes Dimensions: Width: 0.86” [22 mm] x Depth: 6.5” [165 mm] x Height: 3.4” [86 mm] Shipping Weight: 1 lb (0.45 kg) approximately... -
Page 19: Pcb Revision Examples
Lantronix C2110 Install Guide PCB Revision Examples PCB 11348 Rev. 01 PCB 11348 Rev. A 33415 Rev. C https://www.lantronix.com Page 19 of 24... -
Page 20: Pcb 11322 Rev. 02
Lantronix C2110 Install Guide PCB 11322 Rev. 02 PCB 11322 Rev. A 33415 Rev. C https://www.lantronix.com Page 20 of 24... -
Page 21: Troubleshooting
Lantronix C2110 Install Guide Troubleshooting If the C2110 fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the PWR LED on the C2110 lit? • Is the C2110 installed properly in the chassis? •... -
Page 22: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. -
Page 23: Declaration Of Conformity
Lantronix C2110 Install Guide Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA Declares that the product(s): C2110-1011, C2110-1013, C2110-1014, C2110-1015, C2110-1016, C2110-1017, C2110-1019, C2110-1035, C2110-1029-A1, C2110-1029-A2, C2110-1039, C2110-1040, C2110-1029-B1, C2110- 1029-B2, C2110-1029-C1, C2110-1029-C2, C2110-1029-D1, C2110-1029-D2 Conforms to the following Product Regulations: EMC Directive 2004/I08/EC;... - Page 24 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact 33415 Rev. C https://www.lantronix.com Page 24 of 24...
